    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Plastic Processed: PE Application: Pipe
    Screw Design: Single-screw Product Other Name: Supplyer For PE Pipe Production Line, HDPE Pipe Extrusion Machine
    Max Production Speed: 4m/min Plastic Materials: PP PE Granules
    Pipe Name: HDPE Water Or Gas Pipe Extruder Type: Single Screw Extruder
    Condition: New Inverter: ABB

    HDPE pipe line, PE pipe production machine.

    HDPE pipe production line: the automatic feeding system, single screw extruder, head, pipe sizing core rod, vacuum sizing, spray cooling water tank, printer, tractor, cutting machine, stacking frame.
    1. Adopt special single screw extruder, screw with mixing head and barrier, good plasticizing.
    2. The special design of HDPE pipe mold, have better mixing effect, low head pressure and guarantee the high stable yield, extend the service life of the die head.
    3. The independent development of cooling and sizing system, the use of water circulation cooling HDPE raw material.
    4. 6-9 m vacuum sizing water tank of stainless , using speed control system, traction speed stability.
    5. The whole line has automatic control, saves the artificial.

    PE (polyethylene) materials are widely used in water supply pipe manufacturing,as its high strength, corrosion resistance, non-toxic, etc,.Because it will not rust, so, it is an ideal pipe to replace ordinary iron water suply pipe. PE water pipe do as the national standards: GB/T 13663-2000 "water supply with polyethylene (PE) pipe.


    Characteristic:

    Pipe range

    16-63mm

    20-110mm

    75-160mm

    90-250mm

    110-315mm

    160-450mm

    315-630mm

    500-800mm

    Extruder

    ¢45mm

    ¢60mm

    ¢75mm

    ¢75mm

    ¢90mm

    ¢90mm

    ¢120mm

    ¢150mm

    Extruder power

    AC30kw

    DC75kw

    DC110kw

    DC110kw

    DC160kw

    DC160kw

    DC280kw

    DC335kw

    Extrusion capacity

    60-100kg

    100-150kg

    250-300kg

    250-300kg

    350-400kg

    350-400kg

    650-700kg

    850-900kg

    Max. production speed

    10m/min

    6m/min

    6m/min

    6m/min

    3 m/min

    1.2m/min

    0.9m/min

    0.7m/min

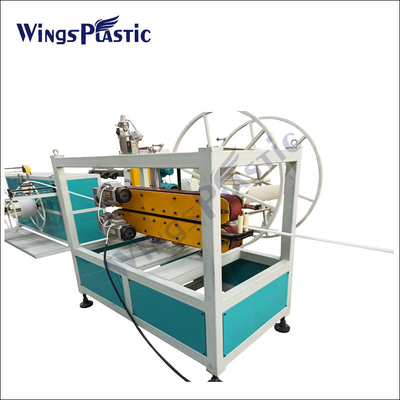

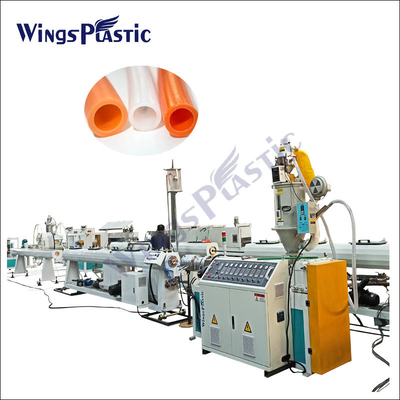

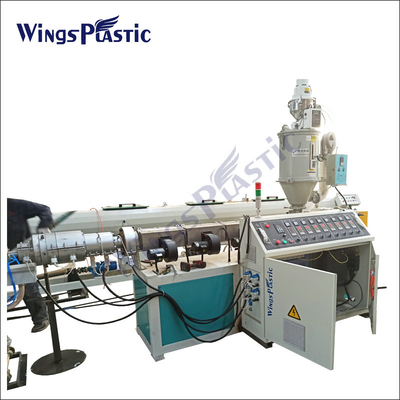

    Our machinery and factory pictures:



    Supplyer For PE Pipe Production Line, HDPE Pipe Extrusion MachineSupplyer For PE Pipe Production Line, HDPE Pipe Extrusion MachineSupplyer For PE Pipe Production Line, HDPE Pipe Extrusion Machine

    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
