Plastic HDPE Tube Production Line / Extrusion Machine Supplied In China

Plastic HDPE Tube Production Line / Extrusion Machine Supplied In China

    • Plastic HDPE Tube Production Line / Extrusion Machine Supplied In China
    • Plastic HDPE Tube Production Line / Extrusion Machine Supplied In China
    • Plastic HDPE Tube Production Line / Extrusion Machine Supplied In China
    • Plastic HDPE Tube Production Line / Extrusion Machine Supplied In China
    • Plastic HDPE Tube Production Line / Extrusion Machine Supplied In China
    • Plastic HDPE Tube Production Line / Extrusion Machine Supplied In China
  • Plastic HDPE Tube Production Line / Extrusion Machine Supplied In China

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Plastic Processed: PE Application: Pipe
    Screw Design: Single-screw Product Other Name: HDPE PE Tube Extrusion Machine
    Max Production Speed: 4m-7m/min Plastic Materials: PP PE Granules
    Pipe Name: HDPE Water Or Gas Pipe Extruder Type: Single Screw Extruder
    Quality: CE, ISO Origin: Qingdao

    Plastic HDPE Tube Production Line / Extrusion Machine Supplied In China



    The HDPE Tube Production Applications:



    Tube applications : water drinking / drainage pipes

    Screw type: single screw

    Capacity: 100-500kg/h

    Speed: 1-10m/min



    The production line adopts HDPE special using high performance extruder,screw is designed with barrier unit and mixing structure, and the barrel use new style grooves. All of these offer good plastification and mixing effect.

    Special design of basket die head for HDPE tube,mould offer lower melting temperature, good mixing,lower pressure of cavity ,and stable production .

    The whole line adpots PLC performance control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another extruder used for extruding the pipe mark line.



    Plastic HDPE Tube Production Line / Extrusion Machine Supplied In China Machinery Informations:



    model

    screw diameter

    L/D

    driving power

    output

    SJ-45/30

    45 mm

    30:1

    22/30kw

    60/80kg/h

    SJ-65/33

    65 mm

    33:1

    45/75/90kw

    150/210/250kg/h

    SJ-75/33

    75 mm

    33:1

    110/132kw

    350/450kg/h

    SJ-90/33

    90 mm

    33:1

    185/220kw

    550/700kg/h

    SJ-105/33

    105 mm

    33:1

    220/285kw

    650/800kg/h

    SJ-120/33

    120 mm

    33:1

    315kw

    950kg/h

    SJ-150/33

    150 mm

    33:1

    450kw

    1350kg/h

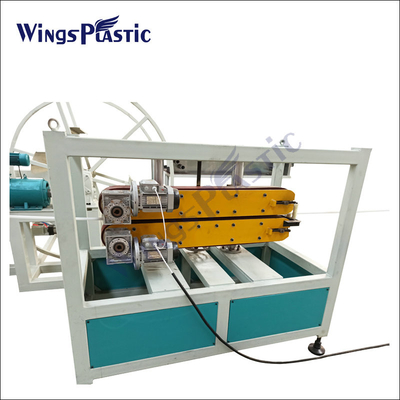

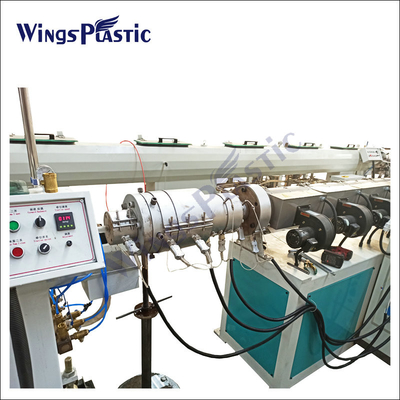

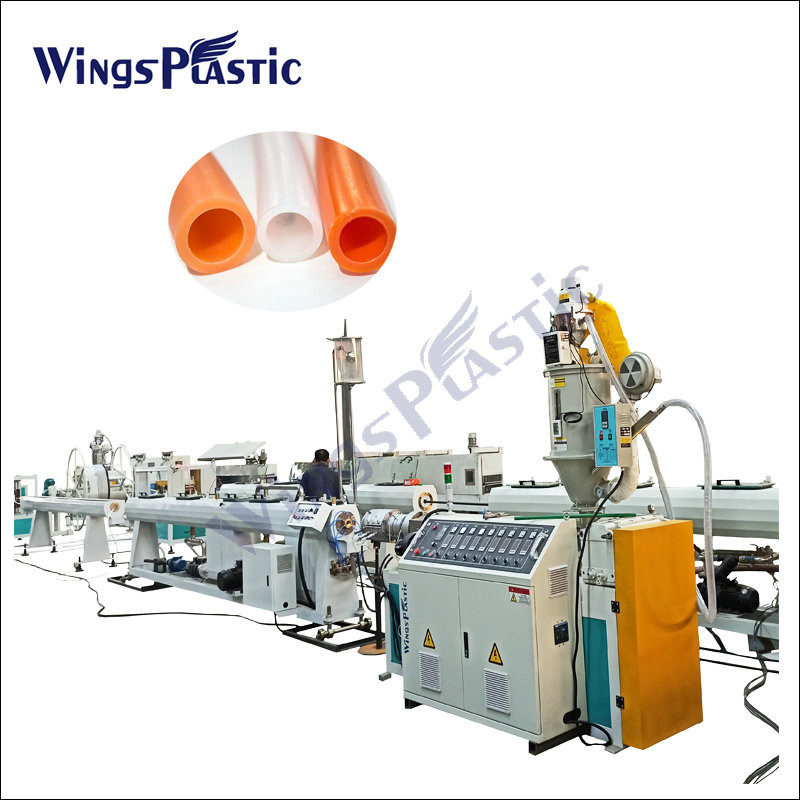

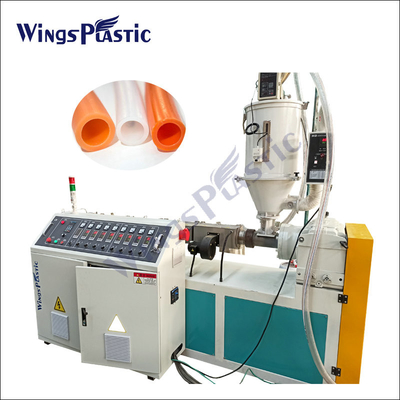

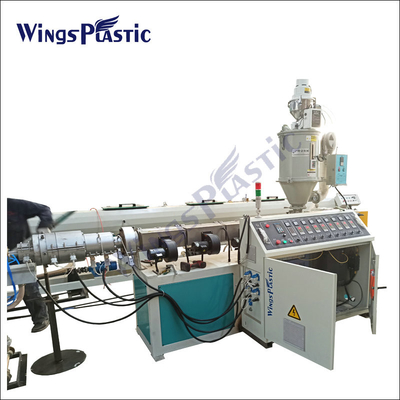

    Plastic HDPE Tube Production Line / Extrusion Machinery Pictures:



    Plastic HDPE Tube Production Line / Extrusion Machine Supplied In ChinaPlastic HDPE Tube Production Line / Extrusion Machine Supplied In ChinaPlastic HDPE Tube Production Line / Extrusion Machine Supplied In China

    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
