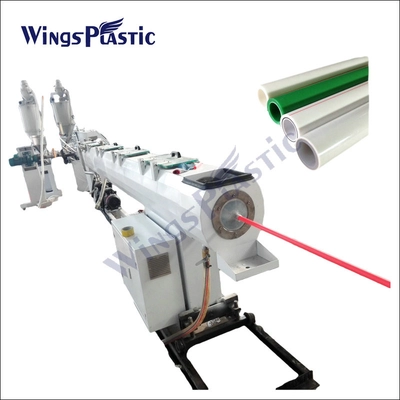

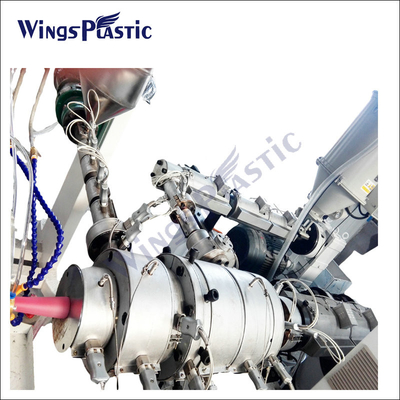

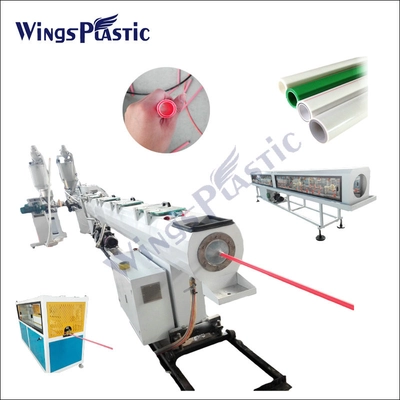

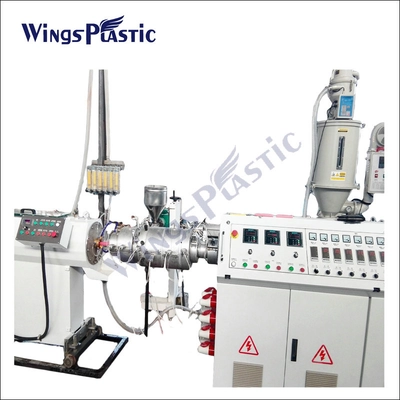

Plastic PPR Pipe Extruding Machine / Extrusion Line Made In China

Plastic PPR Pipe Extruding Machine / Extrusion Line Made In China

    • Plastic PPR Pipe Extruding Machine / Extrusion Line Made In China
    • Plastic PPR Pipe Extruding Machine / Extrusion Line Made In China
    • Plastic PPR Pipe Extruding Machine / Extrusion Line Made In China
    • Plastic PPR Pipe Extruding Machine / Extrusion Line Made In China
    • Plastic PPR Pipe Extruding Machine / Extrusion Line Made In China
    • Plastic PPR Pipe Extruding Machine / Extrusion Line Made In China
  • Plastic PPR Pipe Extruding Machine / Extrusion Line Made In China

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Product Other Name: Plastic PPR Pipe Extruding Machine / Extrusion Line Made In China Max Production Speed: 12m/min
    Plastic Materials: PPR Granules Pipe Name: PPR Pipe
    Extruder Type: Single Screw Extruder Level: Qingdao,China
    Inverter: ABB Condition: New
    Extruder: TXT Motor: AC Motor

    Plastic PPR Pipe Extruding Machine / Extrusion Line Made In China



    Application and features:

    1) It is mainly used in producing pipe material whose raw material is mainly PP-R resin. It also is suitable for producing pipe materials of PPR, PE resin etc.
    2) It has been widely applied to the transportation of housing cold-hot water and liquid gas.
    The PP pipe production line is a new type of environmentally friendly product of the National Ministry of Construction.
    3) We introduce the latest overseas technology, which fully displays our technical superiority. 4) This production line has higher output, good plasticized performance, and higher pipe pressure resistance.



    Advantages of PPR Pipe




    1. PPR-C stands for poly Propylene Random Co Polymer.It is a water supply pipe used in construction.It is an internationally approved,high quality,envionmentally friendly and energy saving pipe.

    2. It is lightweight : Density is 0.89-0.92g/CM3, only ie 1/9 of steel pipe,therefore easy to transport and install.

    3. Fine anti - heat performance : it is resistant to extreme heat/cold and will not deform or give in between -200 C and +950 environmental temperatures.

    4. Good anti-corrosion property : It is resistant to corrosion and does not rust,decay or erode.

    5. Low heat conduction factor : Heat conduction is 0.23-0.24W/mk at 200 C .It is much lower than that of galvanized steel pipe.

    6. It endures to heat and high climatic temperatures.It reserves its original form,flexibility and chemical properties at high temperatures.

    7. Firm pipe fittings connection : Because polypropylene has fine thermal casting performance.Thermal casting between the pipe and pipe fittings with the same material as an integration, it can prevent water from leaking.

    8. The friction correlation is very low,the surface is clean and smooth and will not hold other particles to fill in canvities.



    China PPR Pipe Extruding Machine / Extrusion Line Made in China Informations:



    Model Diameter Extruder Line Speed Max Output Installed Power
    65/33 16-63mm 65/33 13.5m/min 120kg/h 55kw
    90/33 75-160mm 90/33 12m/min 260kg/h 120kw
    65/33 20-110mm 65/33 1-12m/min 180kg/h 150kw



    Plastic PPR Pipe Extruding Machine / Extrusion Line Made In ChinaPlastic PPR Pipe Extruding Machine / Extrusion Line Made In ChinaPlastic PPR Pipe Extruding Machine / Extrusion Line Made In China



    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
