Home ProductsHDPE Pipe Production Line

HDPE Pipe Extruder Machine / Making Machine / Production Line / Extrusion Line

HDPE Pipe Extruder Machine / Making Machine / Production Line / Extrusion Line

    • HDPE Pipe Extruder Machine / Making Machine / Production Line / Extrusion Line
    • HDPE Pipe Extruder Machine / Making Machine / Production Line / Extrusion Line
    • HDPE Pipe Extruder Machine / Making Machine / Production Line / Extrusion Line
    • HDPE Pipe Extruder Machine / Making Machine / Production Line / Extrusion Line
    • HDPE Pipe Extruder Machine / Making Machine / Production Line / Extrusion Line
    • HDPE Pipe Extruder Machine / Making Machine / Production Line / Extrusion Line
  • HDPE Pipe Extruder Machine / Making Machine / Production Line / Extrusion Line

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Plastic Processed: PE Application: Pipe
    Screw Design: Single-screw Product Other Name: HDPE PP Pipe Machine
    Max Production Speed: 4m/min Plastic Materials: PP PE Granules
    Pipe Name: HDPE Water Or Gas Pipe Extruder Type: Single Screw Extruder
    Condition: New Inverter: ABB

    HDPE Pipe Extruder Machine / Making Machine / Production Line / Extrusion Line
    Qingdao Wings Plastic Technology co., LTD supply various kinds of plastic pipe production line,especially HDPE pipe production line.

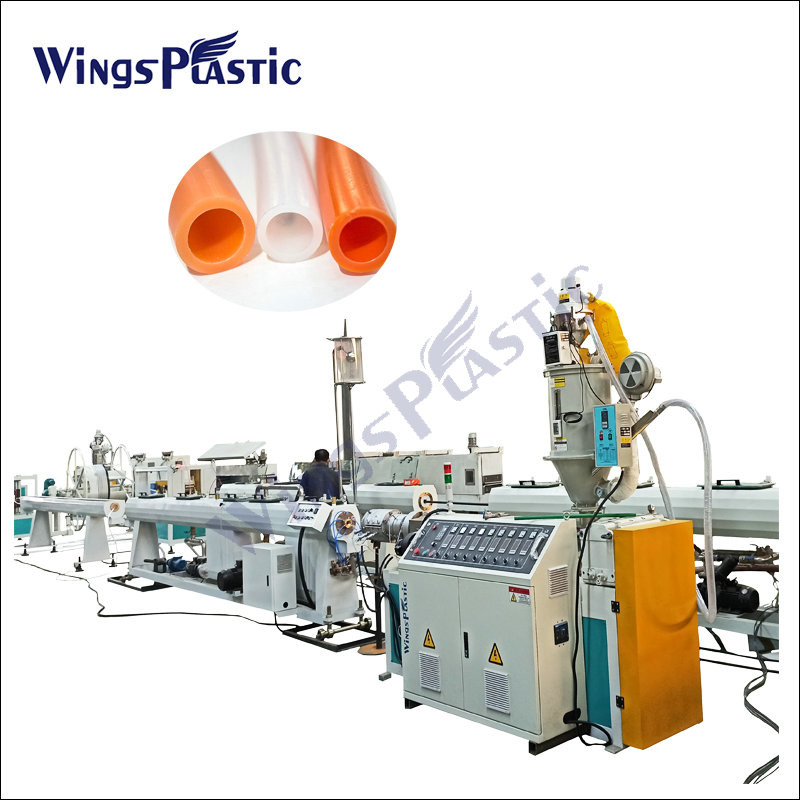

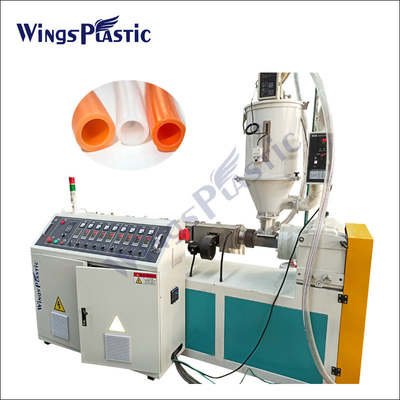

    A. the extruder uses SJ65 efficient PE screw and grooving feed barrel, with A set of powerful cooling water, and greatly improve the transmission capacity, ensure efficient extrusion;
    B. Basket and composite head which is suitable for processing of polyethylene (PE) , not only ensure the stability of the high speed extrusion, and can realize little stress of low melt temperatureand high pipe quality.
    C. by high double chamber vacuum sizing technology and spray cooling water tank, improve the yield of pipe, meet the needs of high-speed production, vacuum sizing machine and cooling water tank are all made of stainless steel;

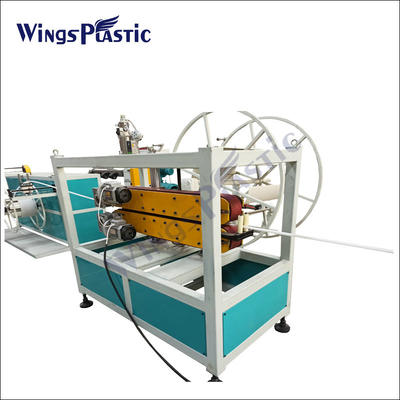

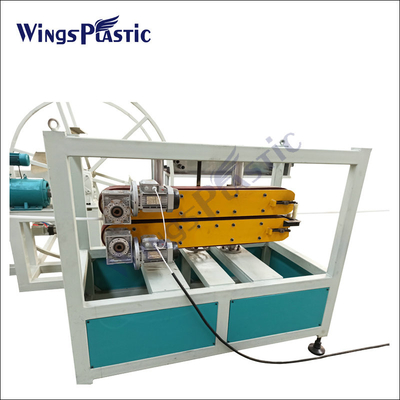

    D. adopts double crawler tractor, synchronous track control, frequency control of motor speed;
    E. and high-speed, accurate design of cutting machine, low noise.
    Company specializing in the production of HDPE pipe extrusion production line equipment
    1, the supply of goods
    our company is a high quality production enterprises with PE, PP pipe production line equipment , the company provides the high quality production equipment, which sent to Saudi Arabia, Thailand, Turkey and other places.
    2, the equipment size

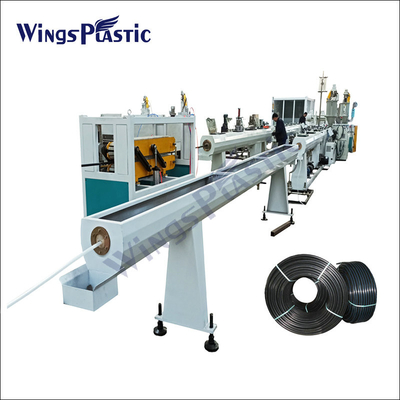

    Production line is mainly composed of extruder, die, vacuum sizing tank, cooling spray tank, traction cutting machine, discharging machine, auxiliary equipment, equipment length 22 m, 1.5 m wide, 2.2 m high.
    3, equipment color
    Mainly white and blue pen, can change the color as required.
    4, after-sales service
    Equipment guarantee period: 12 months, responsible for equipment installation, debugging and training base.
    5, equipment delivery
    Equipment need to 40 feet tall ark when transport abroad , domestic need to 9 m, 13 m trucks.



    Characteristic:

    Pipe range

    16-63mm

    20-110mm

    75-160mm

    90-250mm

    110-315mm

    160-450mm

    315-630mm

    500-800mm

    Extruder

    ¢45mm

    ¢60mm

    ¢75mm

    ¢75mm

    ¢90mm

    ¢90mm

    ¢120mm

    ¢150mm

    Extruder power

    AC30kw

    DC75kw

    DC110kw

    DC110kw

    DC160kw

    DC160kw

    DC280kw

    DC335kw

    Extrusion capacity

    60-100kg

    100-150kg

    250-300kg

    250-300kg

    350-400kg

    350-400kg

    650-700kg

    850-900kg

    Max. production speed

    10m/min

    6m/min

    6m/min

    6m/min

    3 m/min

    1.2m/min

    0.9m/min

    0.7m/min





    Welcome to receive your inquiry for more information about HDPE pipe production line!



    HDPE Pipe Extruder Machine / Making Machine / Production Line / Extrusion LineHDPE Pipe Extruder Machine / Making Machine / Production Line / Extrusion LineHDPE Pipe Extruder Machine / Making Machine / Production Line / Extrusion Line



    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
