Plastic HDPE Pipe Production Line Machinery Single Screw Extruder

Plastic HDPE Pipe Production Line Machinery Single Screw Extruder

    • Plastic HDPE Pipe Production Line Machinery Single Screw Extruder
    • Plastic HDPE Pipe Production Line Machinery Single Screw Extruder
    • Plastic HDPE Pipe Production Line Machinery Single Screw Extruder
    • Plastic HDPE Pipe Production Line Machinery Single Screw Extruder
    • Plastic HDPE Pipe Production Line Machinery Single Screw Extruder
    • Plastic HDPE Pipe Production Line Machinery Single Screw Extruder
  • Plastic HDPE Pipe Production Line Machinery Single Screw Extruder

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: TXT-SJ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Plastic Materials: HDPE Extruder Type: Single Screw Extruder
    Delivery Time: 45 Working Days After Received Your Payment Model Number: SJS
    Brand Name: TXT Certification: CE / ISO
    Pipe Application: Water And Gas Supply Minimum Order Quantity: 1 Set
    Guaranteed Time: 12 Months Place Of Origin: China
    Payment Terms: T/T Or Western Union



    Plastic HDPE Pipe Production Line Machinery Single Screw Extruder​





    This machine is used for producing water / gas supply, and sewage and drain pipe, also undergroud pipes. The Materials could be HDPE, PP,PPR materials. HDPE,PP,PPR pipe is from same machine.



    Description of PE Pipe Extrusion Line



    This PE Pipe Extrusion Line can be used in PE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.

    So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb.

    Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.



    Technical Parameter for pe pipe production machine



    Pipe Range 16-63mm 20-110 75-160 90-250 110-315 160-450 315-630mm 500-800mm
    Extruder ¢45mm ¢60mm ¢75mm ¢75mm ¢90mm ¢90mm ¢120mm ¢150mm
    Extruder Power AC30KW DC75KW 110KW 110KW 160KW 160KW 280KW 335KW
    Extrusion Capacity(kg) 60-100 100-150 250-300 250-300 350-400kg 350-400kg 650-700kg 850-900kg
    Max. Speed 10m/min 6m/min 6m/min 6m/min 3m/min 1.2m/min 0.9m/min 0.7m/min

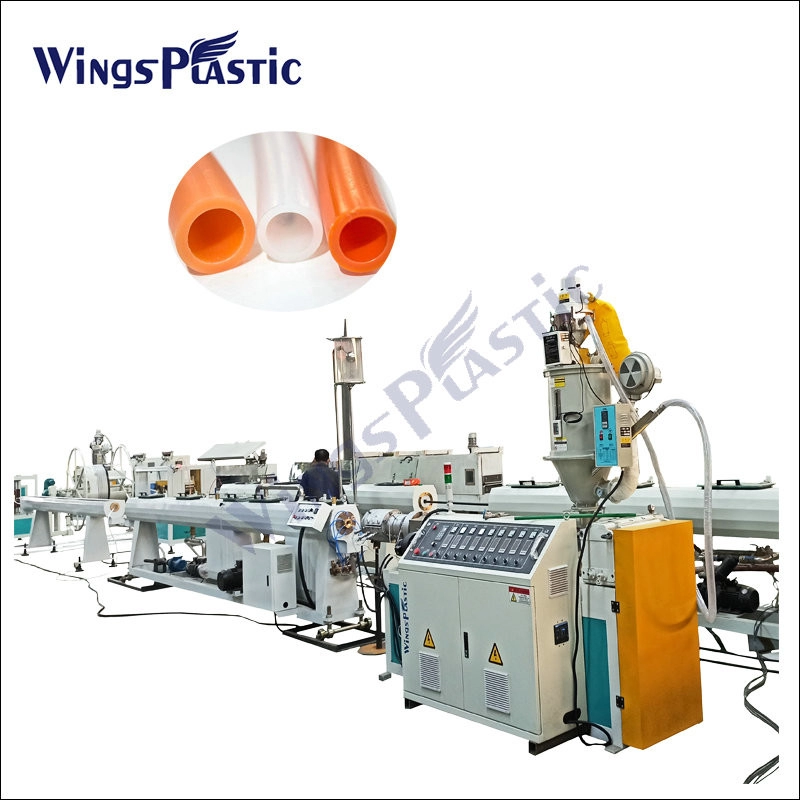

      Plastic HDPE Pipe Production Line Machinery Pictures:

    Plastic HDPE Pipe Production Line Machinery Single Screw ExtruderPlastic HDPE Pipe Production Line Machinery Single Screw ExtruderPlastic HDPE Pipe Production Line Machinery Single Screw Extruder



    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
