|Place of Origin:||Qingdao|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden box and film|
|Delivery Time:||30 workdays|
|Payment Terms:||T/T 30% for prepayment and 70% after machinery testing|
|Supply Ability:||100 sets every year|
|Plastic Materials:||HDPE||Extruder Type:||Single Screw Extruder|
|After-sales Service Provided:||Engineers Are Available For Installation And Training||Condition:||New|
|Brand Name:||TXT||Certification:||CE / ISO|
|Pipe Application:||Water And Gas Supply||Screw No:||Single-screw|
|Guaranteed Time:||12 Months||Place Of Origin:||China|
90 / 33 HDPE pipe extruder / extrusion machine / production line (110mm-315mm)
This 90 / 33 HDPE pipe extrusion machine / production line (110mm-315mm) is mainly used to produce HDPE pipe for water / gas supply, and sewage and drain pipe, also undergroud pipes,with a diameter from 110mm-315mm.
90 / 33 HDPE pipe extruder / extrusion machine / production line (110mm-315mm) introduction:
1. Total installed power:238Kw, 380 V three phases+N+G, 50HZ
Load factor: 55%-80% (Actual power is 150kw)
2. Cooling circulars water: 10 m3/h
3. Compress air:0. 8m3/min
4. Workhouse: 40000×2500×2900mm(length, width and high of line)
5. Products dimension: 110mm,125mm,140mm,160mm,200mm,225mm,250mm,280mm,315mm
6. Raw material :HDPE 80/100
7. Pipe working Pressure:PN6 & PN10
8. Max Output:540 kgs per hour
90 / 33 HDPE pipe extrusion machine / production line (110mm-315mm) machinery specification:
All the 90 / 33 HDPE pipe extruder / extrusion machine / production line (110mm-315mm):
1. Automatic Feeder and drying hopper
2.Single Screw Extruder 90/33
3. PIPE molds (SDR11,SDR17)
4.Vacuum sizing tank
5. spray cooling tank
6.Heating printer with all letter blocks
7. Belt haul-off unit
8.Non scrap Cutting unit:
10.Electric Control Cabinet

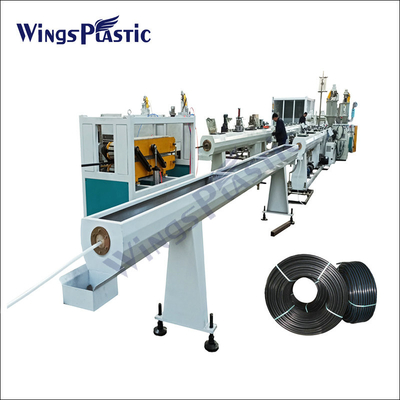

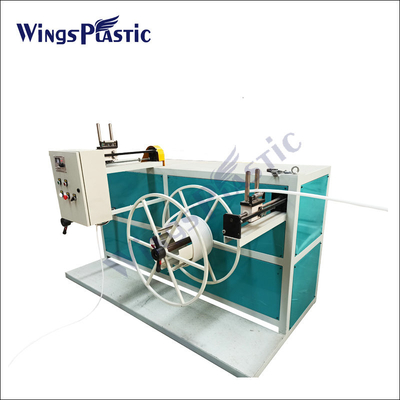

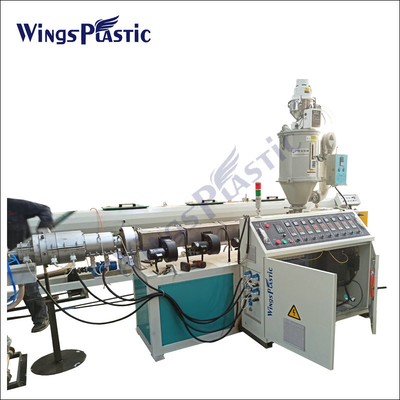

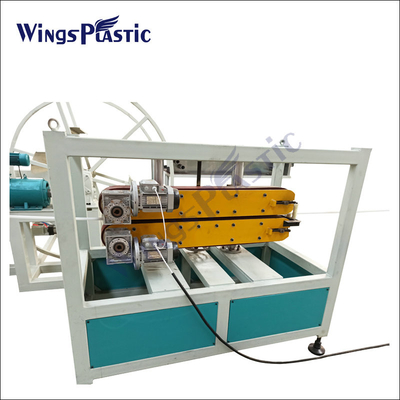

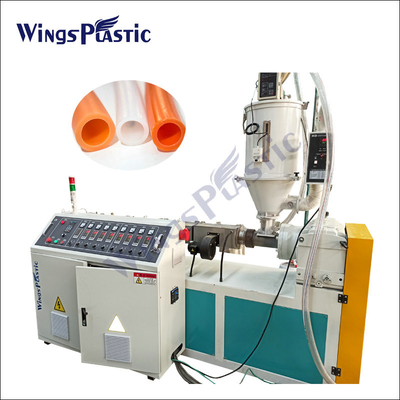

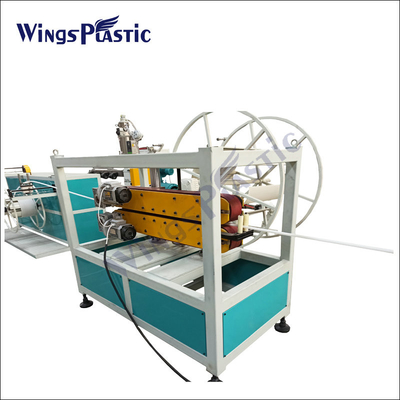

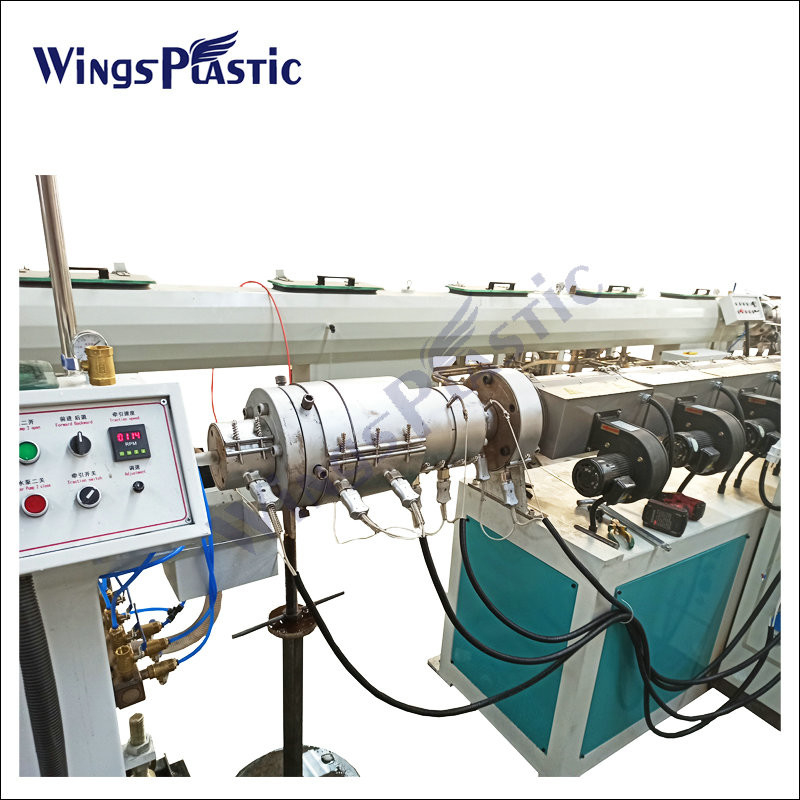

HDPE Pipe Making machine/extrusion line Pictures:
*Q: What’s the price of this machine please?
*A: Dear customer, for each kind of our machines, we have lots of models.
Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.
*Q: What is your advantage in this line?
*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.
We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
