PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion Line

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
Customer Reviews
I purchased the single wall corrugated pipe extrusion machine from here, it is running well, double speed and better quality than my old machine.

—— Mohammed Elnemr

I know they could produce the plastic pipe machine in good quality, and my choose is right. They only focus on plastic pipe extrusion line.

—— Nasser Al Saifi

I'm Online Chat Now

PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion Line

PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion Line
PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion Line PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion Line PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion Line PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion Line PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion Line PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion Line

Large Image :  PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion Line

Product Details:
Place of Origin: Qingdao
Brand Name: WINGS
Certification: CE,ISO
Model Number: SJ65
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Email negotiate
Packaging Details: Wooden box and film
Delivery Time: 30 workdays
Payment Terms: T/T 30% for prepayment and 70% after machinery testing
Supply Ability: 100 sets every year

PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion Line

Description
Plastic Processed: PVC Application: Pipe
Screw Design: Double-screw Product Other Name: PVC Pipe Machine , Conduit Pipe Extruder
Max Production Speed: 3-4m/min Plastic Materials: PVC Powder+ CaCO3 Powder
Pipe Name: Conduit Pipe Or Threading Pipe Extruder Type: Twin Screw Extruder
Origin: Qingdao China Level: Germany
Machinery Color: Blue, Yellow ,White

PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion Line



PVC pipe extrusion line main features:



1.Well designed well made high quality double screw extruder with exclusive helical gear reducer and high efficiency converter motors, make high speed extrusion;

2.Sepcial screw designs, reverse outward rotating conical double screw, ensure high quality plasticization;

3.High precise extrusion die head, tin bronze groove type vacuum calibrating sleeve, stable vacuum degree calibrating tank, high effective water spray cooling system, uniform speed and high traction force NBR caterpillar haul-off machine help making perfect PVC pipes;

4.Whole line with high degree of automation, easy to operate;

5.High quality steel materials, strict producing process make high quality line;

6.New advanced energy saving technology, lowered energy consumption;

7.Whole line adopt newest design concept, using well known brand electrical components, enhanced line stability.



Main Electricity Brand:



Main Motor: Famous brand in china or SIMENS

Frequency control: ABB

Bearing : NSK, Japan

Contactor: SIMENS



Size of the whole production line: 25-30m

Power consumption of the production line(actually): 60-100kw





This line can solve the problems of high temperature melting, high viscosity, easy-decomposition. The special designed screw, gearbox, tooling, and HMI system make the line reliable and easy operation.



PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion LineMachinery List:



Item Description Quantity
1 ZJF300 Powder Charger (for extruder) 1 set
2 SJZ-51/105 Conical Twin Screw Extruder 1 set
3 Molds (including die, core rods, calibration sleeves) 1set
4 Vacuum Calibrator tank(6m) 1set
5 Printer 1set
6 Two Belt Haul-off 1set
7 SQF 180 Synchronous Cutter 1set
8 Control cabinet 1set

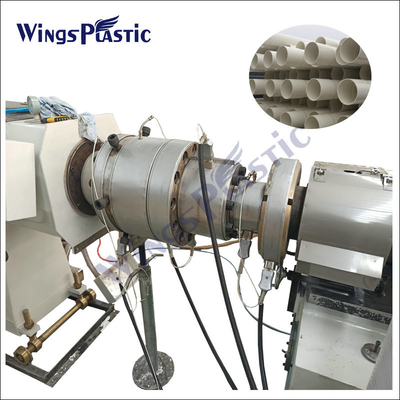

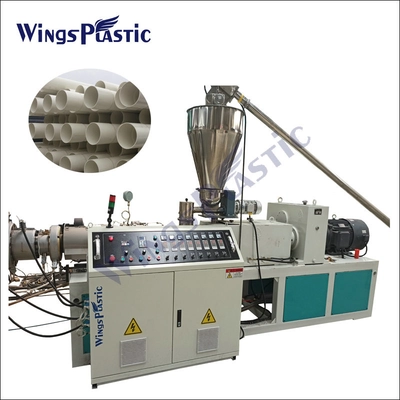

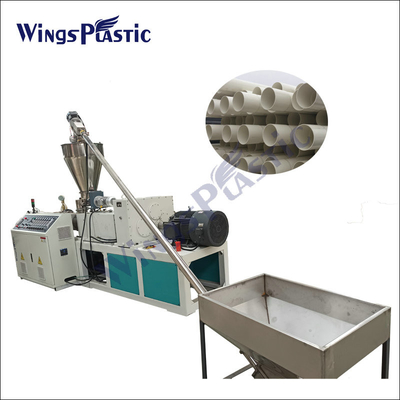

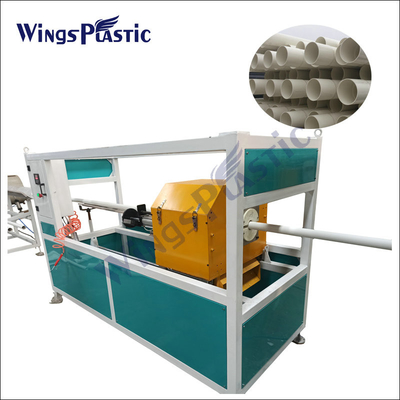

PVC Conduit Pipe Making Machine 16-40mm , Electrical Conduit System PVC Duct Extrusion Line Pictures:




Q&A

*Q: What’s the price of this machine please?

*A: Dear customer, for each kind of our machines, we have lots of models.

Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

*Q: What is your advantage in this line?

*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

Company Profile:

Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
