Full Automatic PVC Plastic Pipe Extrusion Line with Simens Motor

Full Automatic PVC Plastic Pipe Extrusion Line with Simens Motor

    • Full Automatic PVC Plastic Pipe Extrusion Line with Simens Motor
    • Full Automatic PVC Plastic Pipe Extrusion Line with Simens Motor
    • Full Automatic PVC Plastic Pipe Extrusion Line with Simens Motor
    • Full Automatic PVC Plastic Pipe Extrusion Line with Simens Motor
    • Full Automatic PVC Plastic Pipe Extrusion Line with Simens Motor
    • Full Automatic PVC Plastic Pipe Extrusion Line with Simens Motor
  • Full Automatic PVC Plastic Pipe Extrusion Line with Simens Motor

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Plastic Processed: PVC Application: Pipe
    Screw Design: Double-screw Product Other Name: PVC Pipe Machine , Conduit Pipe Extruder
    Max Production Speed: 3-4m/min Plastic Materials: PVC Powder+ CaCO3 Powder
    Pipe Name: Conduit Pipe Or Threading Pipe Extruder Type: Twin Screw Extruder
    Origin: Qingdao China Level: Germany
    Machinery Color: Blue, Yellow ,White

    Full Automatic PVC Plastic Pipe Extrusion Line With Simens Motor

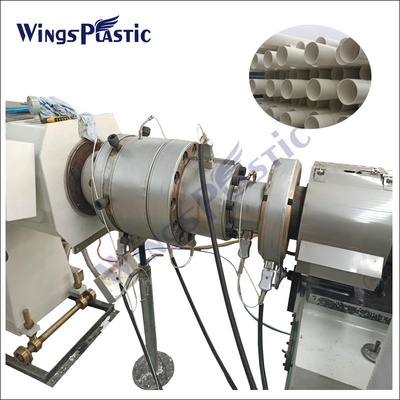

    This machine group consists mainly of twin conical (parallel) screw extruder, vacuum calibration tank, haul-off, cutter, tilter...etc. The screw extruder and haul-off unit have applied imported A/C inverter, the barrel and screw are under hard chrome plated an bimetallic treatment, effectively reduce the abrasion caused by the CaCo3 and other additives. Both vacuum pump and driving motor have applied excellent products.
    The haul-off machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type...etc. Sawing cutting machine or planet cutting machine can be applied, it is additionally equipped with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high, with special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer foam pipe...etc.

    We can supply the online full automatic belling machine according to customer's requirement.

    Pipe scope : 16-630mm
    Weight: 10T
    Suitable: pvc upvc
    Power:110-360KW
    Motor:simens
    Condition: new
    Type:PVC pipe production line, pvc pipe extrusion line
    application:1. Water supply and drainage pipelines in building;
    2. Rainwater drainage pipelines in building;
    3. Electrical wiring pipe in building;
    4. Air conditioning condensate water systems.
    5. Certification: CE UL CSA
    6. Screw material:38Cr2MoAlA

    Description:

    1. The line is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the
    aspects such as the agricultural and constructional plumbing, cable laying etc.

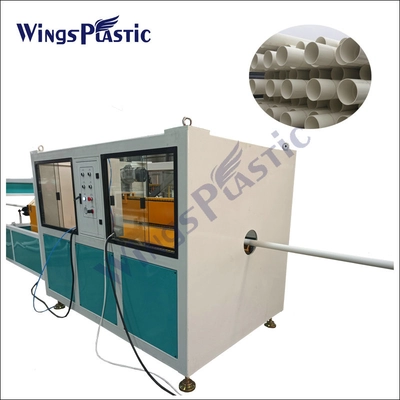

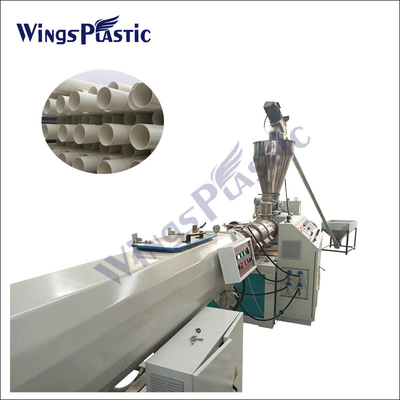

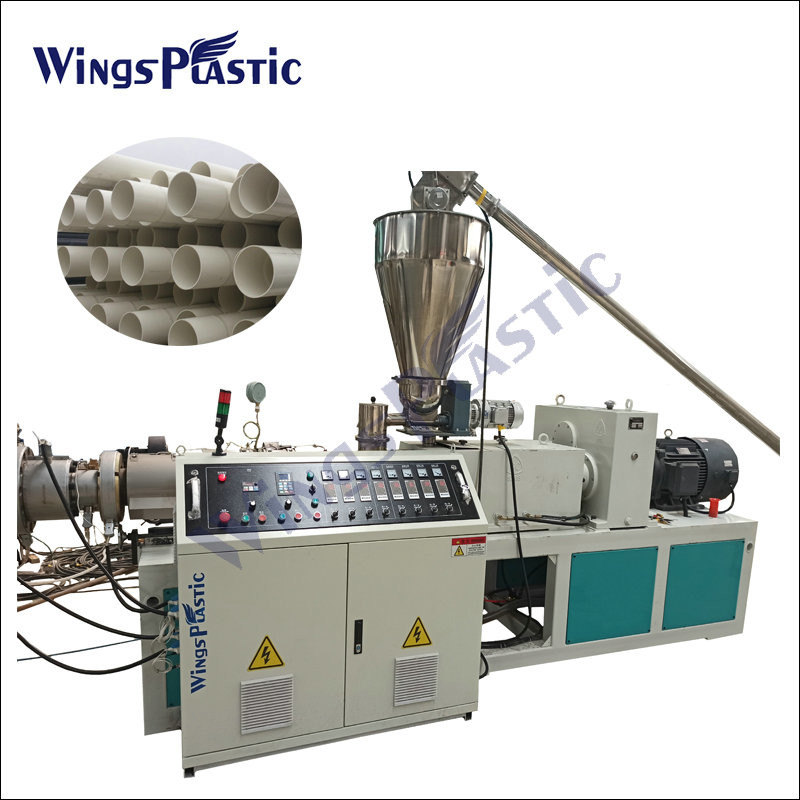

    2. This set is composed of the conical twin-screw extruder, vacuum calibrating tank, haul-off, cutter, stacker
    or belling machine etc.
    3. The extruder and haul-off adopt the imported AC frequency control device.

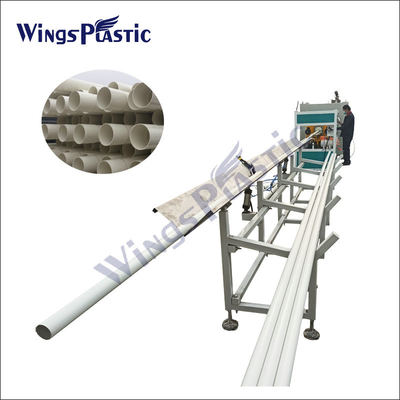

    4. The haul-off has different specifications, such as two-claw, three-claw, four-claw, six-claw etc.

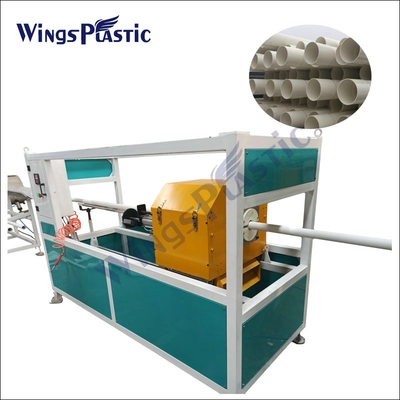

    5. The cutter may choose the saw blade cutting type or the planetary cutting type.
    6. The unit is of reliable performance and high production efficiency.
    Specifications:

    PVC pipe machine Line list

    Pipe Range 16-40mm
    (double)
    20-110mm 50-250mm 160-400mm 315-630mm
    Extruder SJZ65/132
    Or
    SJZ51/105
    SJZ65/132 SJZ65/132
    Or
    SJZ80/156
    SJZ80/156 SJZ92/188
    Motor(KW) 37KW
    or
    18.5KW
    37KW 37KW
    Or
    55KW
    55KW 110KW
    Capacity(KG/H) 80-180 150-250 150-350 200-360 400-600
    Lineal speed(M/min) 1-15 1-12 0.3-6 0.2-2 0.1-1


    Applications:

    1. Water supply and drainage pipelines in building;
    2. Rainwater drainage pipelines in building;
    3. Electrical wiring pipe in building;
    4. Air conditioning condensate water systems.


    Competitive Advantage:

    1. Excellent in chemical corrosion, no rust;
    2. With self extinguishing and flame retardant;
    3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60
    degrees Celsius;
    4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7%
    higher than the cast iron pipe;
    5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to
    the steel pipes, low labor intensity, short duration;
    6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23
    to 2kv/mm;
    7. The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is
    narrow.


    Full Automatic PVC Plastic Pipe Extrusion Line with Simens MotorFull Automatic PVC Plastic Pipe Extrusion Line with Simens MotorFull Automatic PVC Plastic Pipe Extrusion Line with Simens Motor
