Promotional ppr pipe production line / ppr pipe extrusion machine in China

Promotional ppr pipe production line / ppr pipe extrusion machine in China

    • Promotional ppr pipe production line / ppr pipe extrusion machine in China
    • Promotional ppr pipe production line / ppr pipe extrusion machine in China
    • Promotional ppr pipe production line / ppr pipe extrusion machine in China
    • Promotional ppr pipe production line / ppr pipe extrusion machine in China
    • Promotional ppr pipe production line / ppr pipe extrusion machine in China
    • Promotional ppr pipe production line / ppr pipe extrusion machine in China
  • Promotional ppr pipe production line / ppr pipe extrusion machine in China

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Plastic Processed: PP Application: Pipe
    Screw Design: Single-screw Product Other Name: PPR Pipe Extruding Machine
    Max Production Speed: 6m/min Plastic Materials: PPR Or PE Granules
    Pipe Name: PPR Pipe Or PE Pipe Extruder Type: Single Screw Extruder
    Level: Qingdao,China Qulity: CE, ISO

    Promotional ppr pipe production line / ppr pipe extrusion machine in China

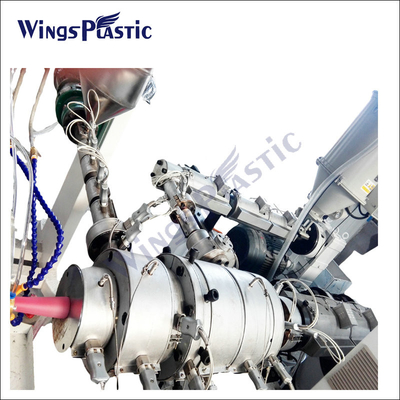

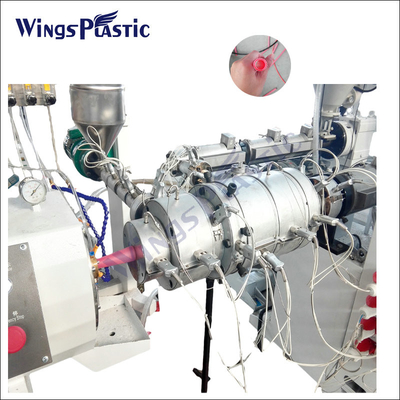

      1,The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.

       2,Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.

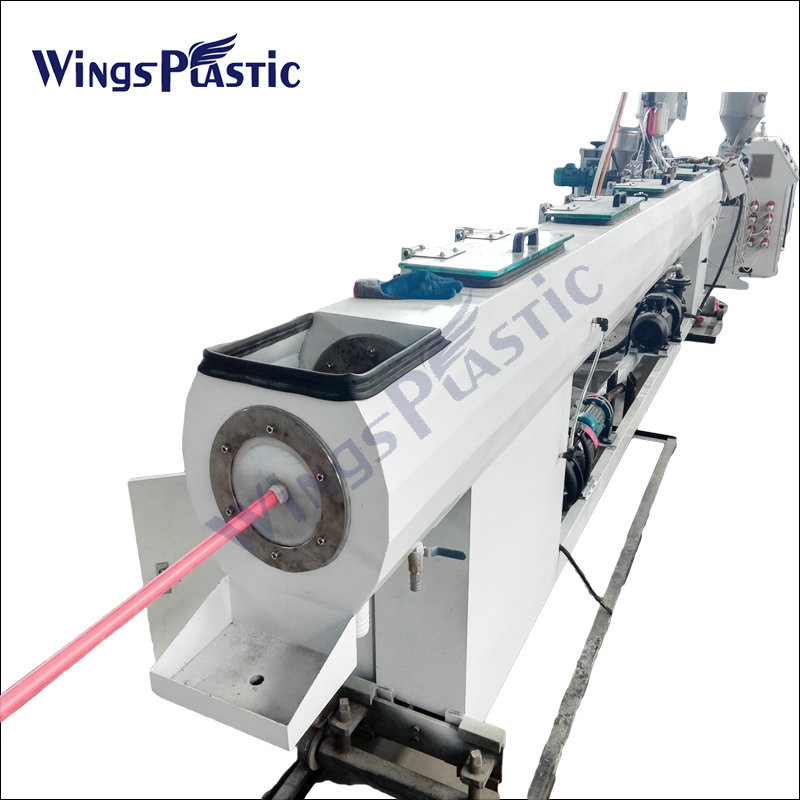

       3, Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.

       4,Caterpiller of the hauling machine adopts anti abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.

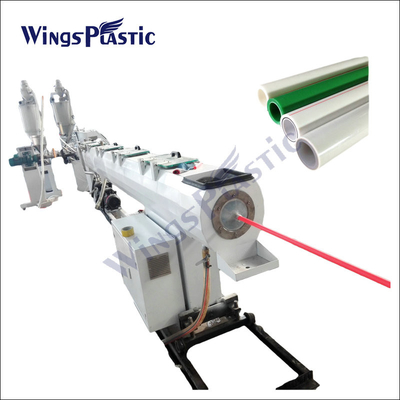

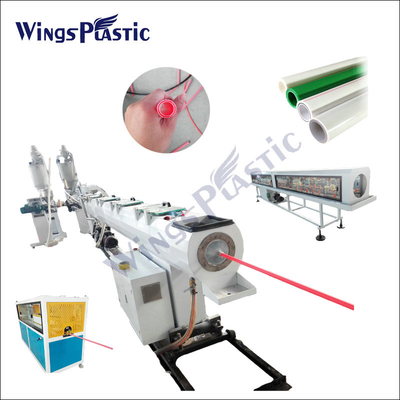

    Consist For Full Production Line:

    A.Single screw extruder

    B.PPR / PE / PP pipe extrusion mould

    C.Vacuum shaping platform

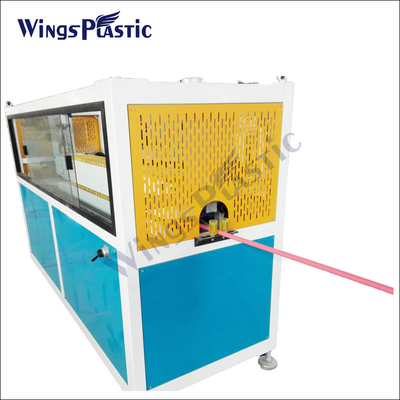

    D.Haul off machine

    E.Cutting machine

    F.Stacker

    Model

    PP-R-32

    PP-R-110

    Specifications of extruder

    SJ65/30

    SJ90/30

    Pipe Type(mm)

    φ16- φ 63

      φ 75- φ 110

     Production line speed(m/min)

     ≥ 10

     ≥ 5

     Air pressure(≥ 0.6MPa)(m3/min)

     0.3

     0.5

     Cooling water flow rate(m3/h)

     2

     8

     Total power(kw)

     55

     120

     Dimension(mm)

    20000*4000*1700

     30000*5000*1750

     Weight(kg)

     3500

     4500


    Promotional ppr pipe production line / ppr pipe extrusion machine in ChinaPromotional ppr pipe production line / ppr pipe extrusion machine in ChinaPromotional ppr pipe production line / ppr pipe extrusion machine in China


    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
