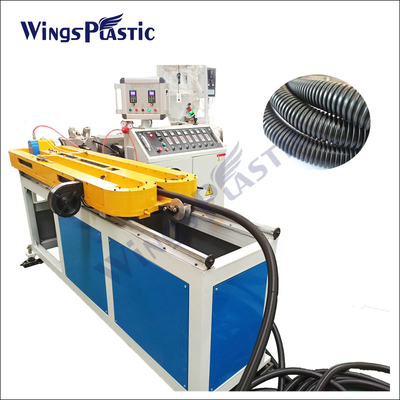

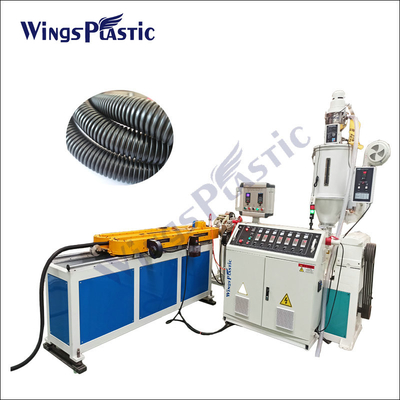

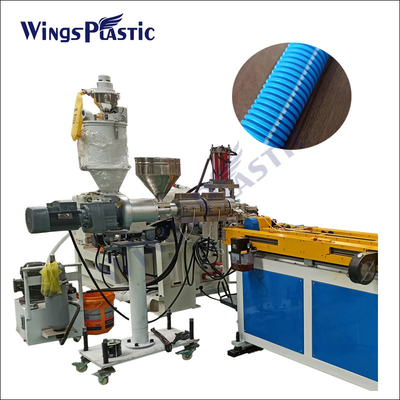

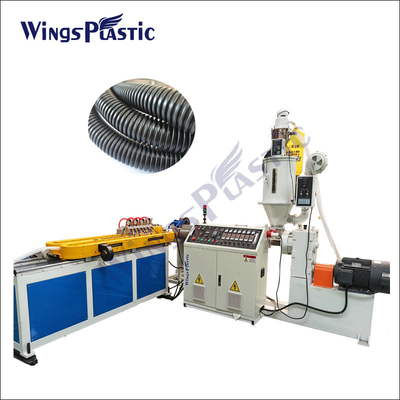

Quality HDPE PP PA PVC Single Wall Corrugated Pipe Extrusion Line

Quality HDPE PP PA PVC Single Wall Corrugated Pipe Extrusion Line

    • Quality HDPE PP PA PVC Single Wall Corrugated Pipe Extrusion Line
    • Quality HDPE PP PA PVC Single Wall Corrugated Pipe Extrusion Line
    • Quality HDPE PP PA PVC Single Wall Corrugated Pipe Extrusion Line
    • Quality HDPE PP PA PVC Single Wall Corrugated Pipe Extrusion Line
    • Quality HDPE PP PA PVC Single Wall Corrugated Pipe Extrusion Line
    • Quality HDPE PP PA PVC Single Wall Corrugated Pipe Extrusion Line
  • Quality HDPE PP PA PVC Single Wall Corrugated Pipe Extrusion Line

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: 10mm-32mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Product Other Name: Corrugated Expansion Pipe Making Machine Extrusion Speed: 12-20m/min
    Screw Type: Single Screw Extruder Origin: Qingdao
    Technology: Germany Quality: CE, ISO
    Pipe Name: Expansion Corrugated Pipe Machinery Color: Blue

    Quality HDPE PP PA PVC Single Wall Corrugated Pipe Extrusion Line



    Our company supply the PA/PVC/PP/HDPE single-wall corrugated pipe extrusion machine, plastic corrugated pipe production equipment, professional production, corrugated pipe line, quality assurance.


    PA / PE / PP / PVC single-wall corrugated pipe features:
    1).With good flexibility, resistance to deformation, bending performance is good, not afraid of acid, oil, cold, etc
    2).Inside and outside the wall smooth, small friction resistance
    3).Carrying capacity is strong, can withstand the weight, not deformation, fracture can quickly recover, small corrugated pipe unit, itself has no any damage



    Plastic single-wall corrugated hose production line features:
    1).Ceramic heating can be used, stable and reliable, also can use electromagnetic heater, can save 40% to 60% of its electricity.
    2).All electrical components (switch/converter/temperature control table) are is Siemens, schneider, omron and other world famous brand
    3).PLC control, easy to operate
    4).Forming machine 38-72 for forming module, according to the velocity and pipe diameter selective.
    5).Production speed is 15 m/min to 25 m/min.



    Process flow:

       Raw material + master batches → mixing → vacuum feeding → material dryness → single screw extruder → extrusion mould → corrugation forming machine → meter measurer→ double winder → finished product inspecting & packing

       This plastic corrugated pipe line equips with high quality machines in the whole line, with good equipments, the plastic corrugated pipe line can produce pipes stable and fast. Also all these machines share a ling service life which reduces buyer's cost.

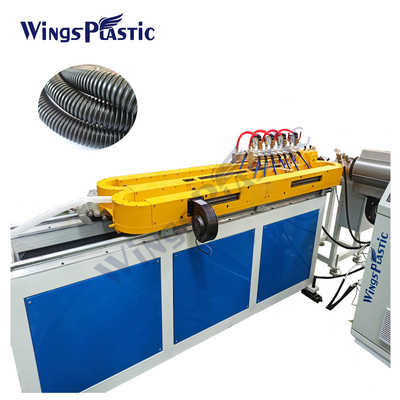

       High speed corrugator: Easy to change the mould blocks , high speed , stable running , high quality of pipe .

       Useage:  PE PVC Single wall Corrugated Pipe Production Line can produce pipe with heating-proof , corrosion-proof, friction-proof and high strength . And the pipe will be used in electricity/pneumatic wire conduit , Auto wire conduit , protection conduit , machine tools , electric locomative, projections installation , lights, automatic tools and other fields . It is a big market demand .

       Characteristics and advantages :

    1. Special structure design of screw and dies and convenience in changing mould blocks solve the problem of easy-worn of screw and barral ,as well as the difficulty in forming of plastic resin .

    2. Corrugator adopts closed water cooling structure ,closed forming blocks chain ,and special design of rail, which will make all blocks matching correctly ,running stablely . You even couldn’t see the connecting line on the surface of pipe . Cooling water is cycling inside the corrugator ,it will make the cooling speed fast, so the production speed of pipe will be raised highly .

    Meanwhile ,the corrugator adopts building blocks design , we can use same basis structure but different forming length of corrugator . The longer forming length of corrugator , the more output of pipe . We can make different forming length corrugator according to different cusotmers’ needs.

    Line Model

    Extruder model

    Production scope

    Output

    Total Power

    Production speed

    PE-40

    SJ-45/30

    Φ6-40mm

    60kg/h

    25KW

    6-10m/min

    PE-63

    SJ-65/30

    Φ12-63mm

    80kg/h

    30KW

    6-10m/min

    PA-40

    SJ-45/28

    Φ6-40mm

    60kg/h

    25KW

    6-10m/min

    PVC-50

    SJ51/105

    Φ16-50mm

    100kg/h

    27KW

    6-10m/min



    Quality HDPE PP PA PVC Single Wall Corrugated Pipe Extrusion LineQuality HDPE PP PA PVC Single Wall Corrugated Pipe Extrusion LineQuality HDPE PP PA PVC Single Wall Corrugated Pipe Extrusion Line



    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
