Home ProductsPlastic Single Wall Corrugated Pipe Extruder Machine

Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery

Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery

    • Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery
    • Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery
    • Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery
    • Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery
    • Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery
    • Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery
  • Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: 4.5mm-10mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Product Other Name: E, PP ,PVC Single Wall Corrugated Pipe Extrusion Line Extrusion Speed: 12-20m/min
    Screw Type: Single Screw Extruder Origin: Qingdao
    Technology: Germany Quality: CE, ISO
    Pipe Name: Expansion Corrugated Pipe Machinery Color: Blue

    Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery



    Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery

    Introduction:

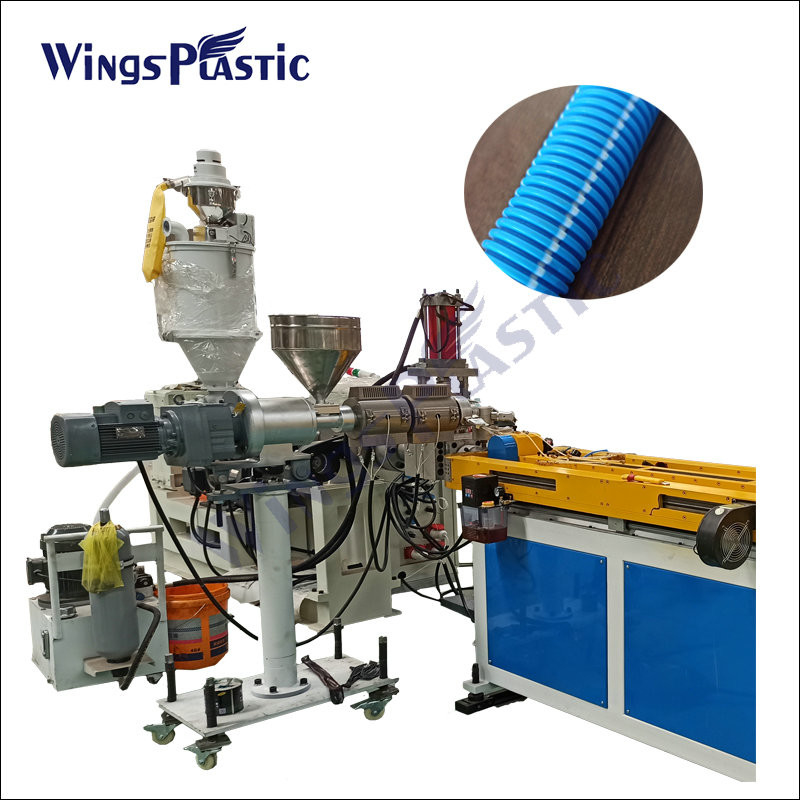

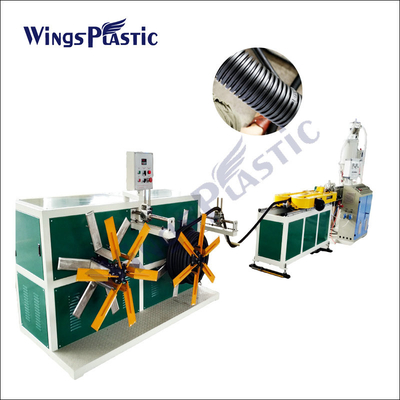

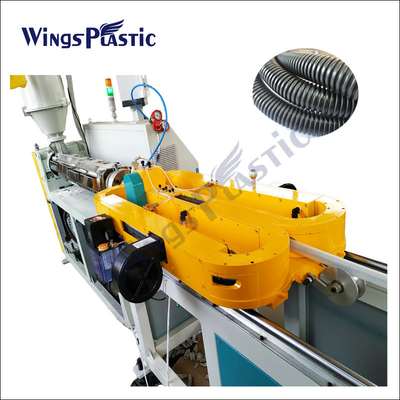

    It consists of automatic feeding system / single screw extruder / die head / forming machine / winder. It is mainly produce PE / PP / PVC / PA single corrugated pipe. The plastic single corrugated pipe is mainly used in the golf course, playgrounds as light load of drainage, floods; Interior decoration cable casing; Automotive wire casing; The washing machine, air conditioner drain; Prestressed concrete special pipe, etc.

    Features of PE/PP/PVC/PA Single Wall Pipes:
    1). It has good flexibility: To resist distortion, bending good performance Acid, lubricating oil, cooling fluid, etc
    2). Exterior luster, friction resistance
    3). Carrying capacity is strong, can bear the weight of the foot, doesn't break, deformation, can quickly recover, and itself without any damage

    Features of plastic Single Wall Corrugated Pipe Production Line:
    1). Adopt Electric-magnetic heater which can save 40% to 60% electric energy.
    2). All electric parts ( breaker/relay/ inverter ) is Siemens/SCHNEIDER/OMRON
    3). PLC control and simple operation

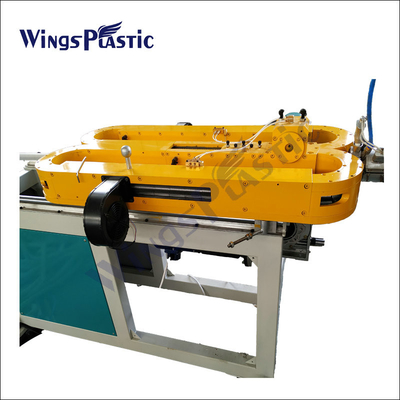

    4). The forming machine has 38 pairs to 72 pairs forming block.
    5). Production speed is 15m/min to 25m/min.

    Technical parameter of PVC/PE/PP single wall corugated pipe/ hose extrusion machine:

    Pipe diameter 4-12mm 10-36mm 16-50mm 16-50mm 50-110mm
    Extruder SJ-30/28 SJ-45/33 SJ-45/33 SJ-65/30 SJ-90/30
    Capacity 8-15kg/h 80kg/h 80kg/h 120kg/h 250kg/h
    Speed of production line 1-12m/min 15-20m/min 10-18m/min 10-20m/min 6-8m/min
    Quantity of mould block 30 pairs 72 pairs 72 pairs 81 pairs 50 pairs


    Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery

    Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery

    Plastic Flexible Hose Making Machine / Corrugated Pipe Machinery

    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
