Automatic pipe threading machine corrugation pipe manufacture machinery

Automatic pipe threading machine corrugation pipe manufacture machinery

    • Automatic pipe threading machine corrugation pipe manufacture machinery
    • Automatic pipe threading machine corrugation pipe manufacture machinery
    • Automatic pipe threading machine corrugation pipe manufacture machinery
    • Automatic pipe threading machine corrugation pipe manufacture machinery
    • Automatic pipe threading machine corrugation pipe manufacture machinery
    • Automatic pipe threading machine corrugation pipe manufacture machinery
  • Automatic pipe threading machine corrugation pipe manufacture machinery

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: 10mm-32mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Product Other Name: Single Wall Corrugated Pipe Extruder Extrusion Speed: 10m/min
    Level: Germany Quality: ISO, CE
    Plastic Materials: PE, PVC ,PP ,PA Pipe Name: Corrugated Pipe
    Origin: China, Qingdao

    Automatic pipe threading machine corrugation pipe manufacture machinery

     Single-walled high-speed machine ,module replacement is convenient, the production speed, high efficiency, stable performance can be high, steel tubes are of good quality and beautiful appearance.

     Automatic pipe threading machine corrugation pipe manufacture machinery can be used to produce single-wall or one wall corrugated pipe of PE,PP,PVC,EVA continuously, as well as PA corrugated pipes.

       Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine,etc...

       Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.

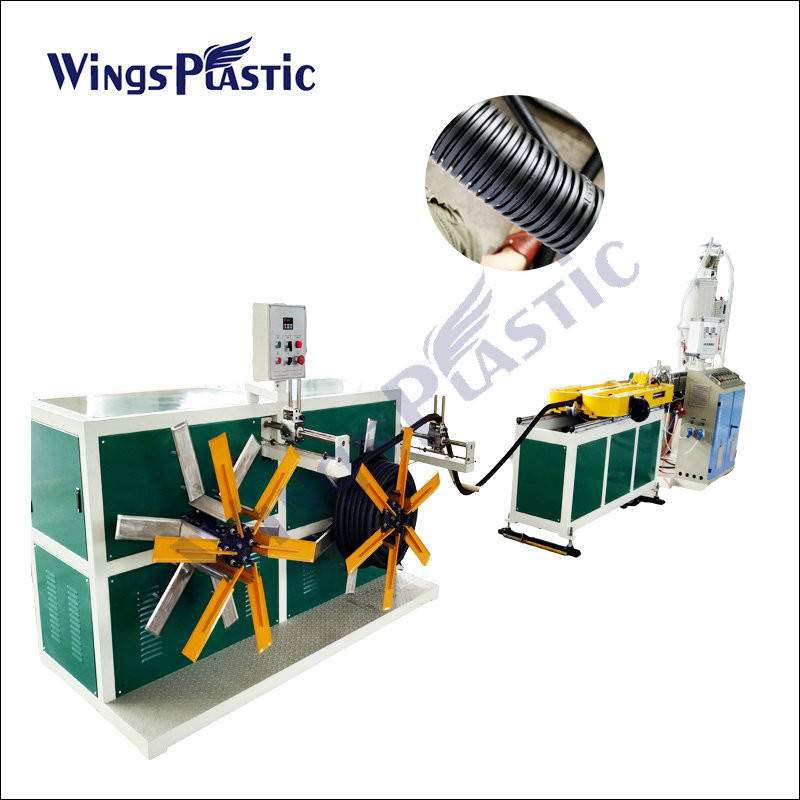

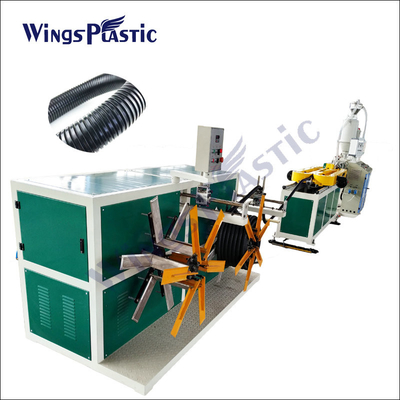

    Introduction of automatic pipe threading machine corrugation pipe manufacture machinery

    We developed the mahcine on the basis of traditional structure,  we could produce the corrugated pipe with 20m/min.

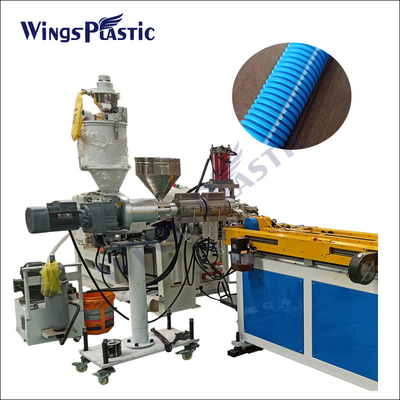

    1. Single screw extruder, model of extruder depends on the pipe diameter and output capacity request.

    2. Die head.

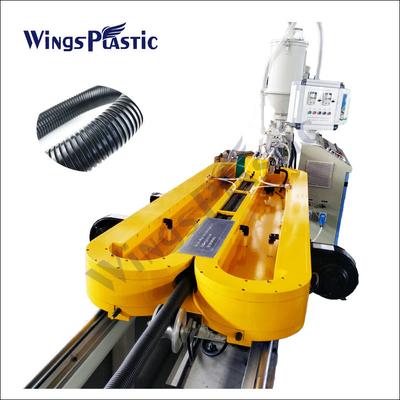

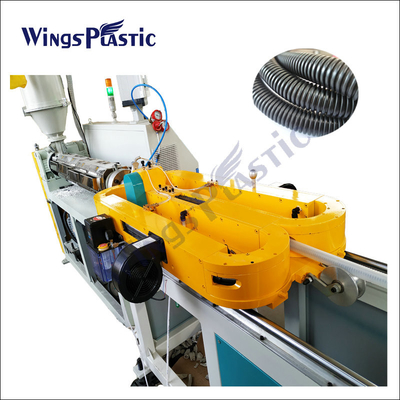

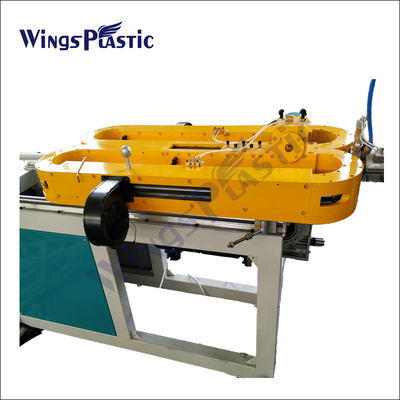

    3. Forming machine. The corrugated pipe is formed by two groups of calibration mould block. The pipe is cooling by fan and water.

    4. Winder. Two position winder or single position winder.

    Plastic prestressed pipe corrugated pipe threaded pipe making machine informations:

    Main Machine Provided

    SJ-65×25 Single-Screw Extruder

    Pair of Mold Block

    72

    Pipe State

    Single wall corrugated pipe

    Girth of Mold Block

    2133.6mm

    Drawing Speed

    10-20m/min

    Mold Block Cooling Mode

    Water and air cooling

    Pipe Cooling Mode

    Water and air cooling

    Wind Cooling Power

    0.5×2KW

    Main Machine Power

    15-18.5KW

    Driving Power of Auxiliary Machine

    2.2KW

    Set Weight

    2500kg

    Set Appearance Dimension

    7500mm×1600mm×1700mm

    (L×W×H)



    Automatic pipe threading machine corrugation pipe manufacture machineryAutomatic pipe threading machine corrugation pipe manufacture machineryAutomatic pipe threading machine corrugation pipe manufacture machinery



    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
