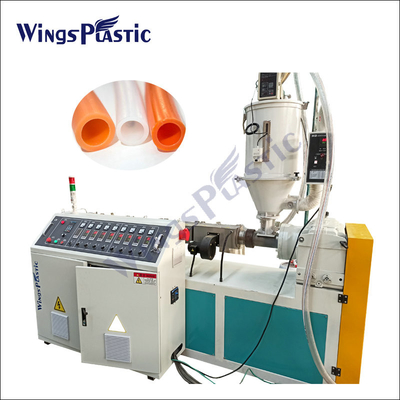

Plastic HDPE Water Supply Pipe Production Line / Extruder Machine

Plastic HDPE Water Supply Pipe Production Line / Extruder Machine

    • Plastic HDPE Water Supply Pipe Production Line / Extruder Machine
    • Plastic HDPE Water Supply Pipe Production Line / Extruder Machine
    • Plastic HDPE Water Supply Pipe Production Line / Extruder Machine
    • Plastic HDPE Water Supply Pipe Production Line / Extruder Machine
    • Plastic HDPE Water Supply Pipe Production Line / Extruder Machine
  • Plastic HDPE Water Supply Pipe Production Line / Extruder Machine

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Detailed Product Description
    Plastic Processed: PE Application: Pipe
    Screw Design: Single-screw Product Other Name: HDPE PP Pipe Machine
    Max Production Speed: 4m/min Plastic Materials: PP PE Granules
    Pipe Name: HDPE Water Or Gas Pipe Extruder Type: Single Screw Extruder

    Plastic HDPE Water Supply Pipe Production Line / Extruder Machine

    The extrusion line is newly developed based on European technique of new type pipe production line.

    It’s suitable for PE , PP and other polyolefine pipes high-speed extrusion.
    The extrusion line has many advantages, such as, nest outline , highly automatic control . stable performance.
    It’s greatly reputed by the customers due to “European performance and domestic.

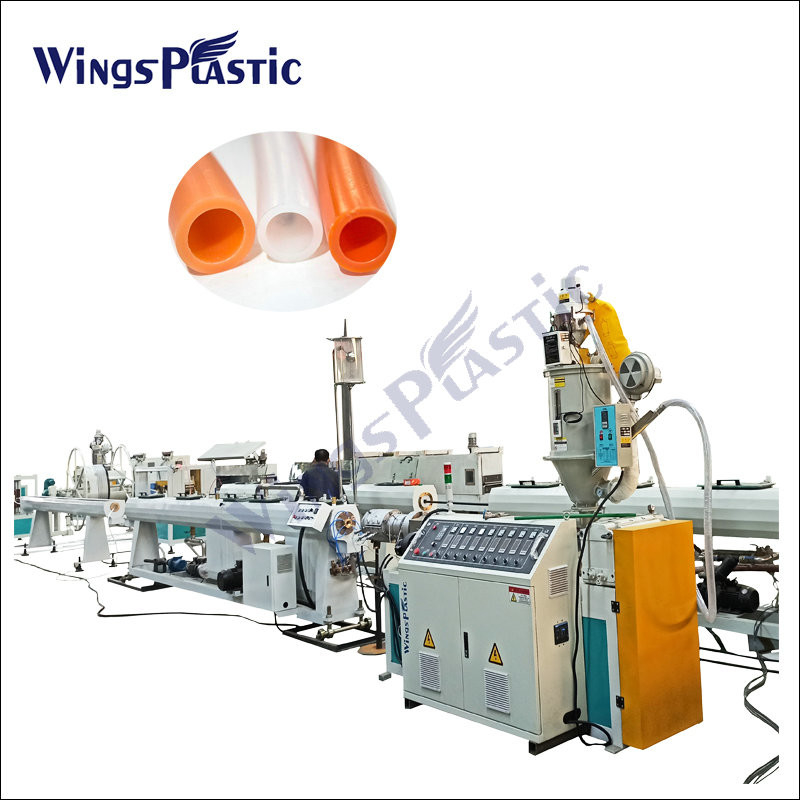

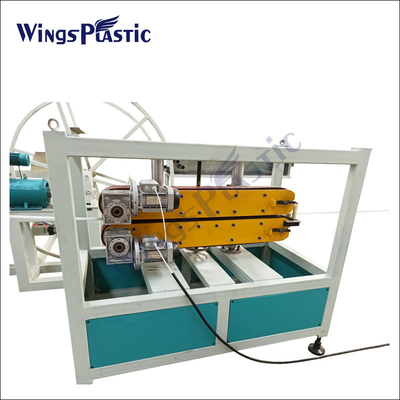

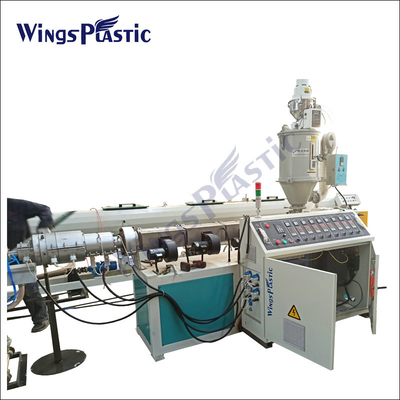

    PE pipe production line contains single screw extruder, mould, single screw extruder (for mark line), calibrating tank, cooling tank, haul-off, cutter and stacker.

    Description:



    Our Single screw extruder is very suitable to process PE resin with high capacity, max capacity can reach 1000kg/h

    The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.

    Diameter range is 16mm-800mm, which can be changed into inch standard to meet special requirement.



    Characteristic:

    Pipe range

    16-63mm

    20-110mm

    75-160mm

    90-250mm

    110-315mm

    160-450mm

    315-630mm

    500-800mm

    Extruder

    ¢45mm

    ¢60mm

    ¢75mm

    ¢75mm

    ¢90mm

    ¢90mm

    ¢120mm

    ¢150mm

    Extruder power

    AC30kw

    DC75kw

    DC110kw

    DC110kw

    DC160kw

    DC160kw

    DC280kw

    DC335kw

    Extrusion capacity

    60-100kg

    100-150kg

    250-300kg

    250-300kg

    350-400kg

    350-400kg

    650-700kg

    850-900kg

    Max. production speed

    10m/min

    6m/min

    6m/min

    6m/min

    3 m/min

    1.2m/min

    0.9m/min

    0.7m/min





    Welcome to receive your inquiry for more information about PE pipe production line!




    Plastic HDPE Water Supply Pipe Production Line / Extruder Machine
    Plastic HDPE Water Supply Pipe Production Line / Extruder MachinePlastic HDPE Water Supply Pipe Production Line / Extruder Machine

    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
