PVC Water Pipe Extruder Machine with Conical Twin Screw Extruder

PVC Water Pipe Extruder Machine with Conical Twin Screw Extruder

    • PVC Water Pipe Extruder Machine with Conical Twin Screw Extruder
    • PVC Water Pipe Extruder Machine with Conical Twin Screw Extruder
    • PVC Water Pipe Extruder Machine with Conical Twin Screw Extruder
    • PVC Water Pipe Extruder Machine with Conical Twin Screw Extruder
    • PVC Water Pipe Extruder Machine with Conical Twin Screw Extruder
    • PVC Water Pipe Extruder Machine with Conical Twin Screw Extruder
  • PVC Water Pipe Extruder Machine with Conical Twin Screw Extruder

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Plastic Processed: PVC Application: Pipe
    Screw Design: Double-screw Product Other Name: PVC Pipe Machine , Conduit Pipe Extruder
    Max Production Speed: 3-4m/min Plastic Materials: PVC Powder+ CaCO3 Powder
    Pipe Name: Conduit Pipe Or Threading Pipe Extruder Type: Twin Screw Extruder
    Origin: Qingdao China Level: Germany
    Machinery Color: Blue, Yellow ,White

    PVC Water Pipe Extruder Machine With Conical Twin Screw Extruder

    PVC pipe machine:
    *Process flow

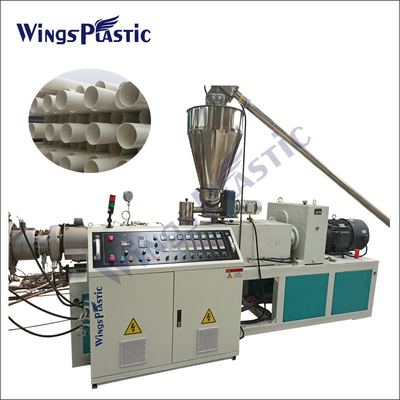

    Raw material+ additive→mixing→ feeding machine→hopper dryer→twin-screw extruder→coextruder→

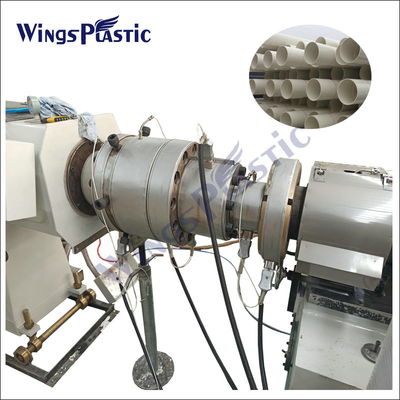

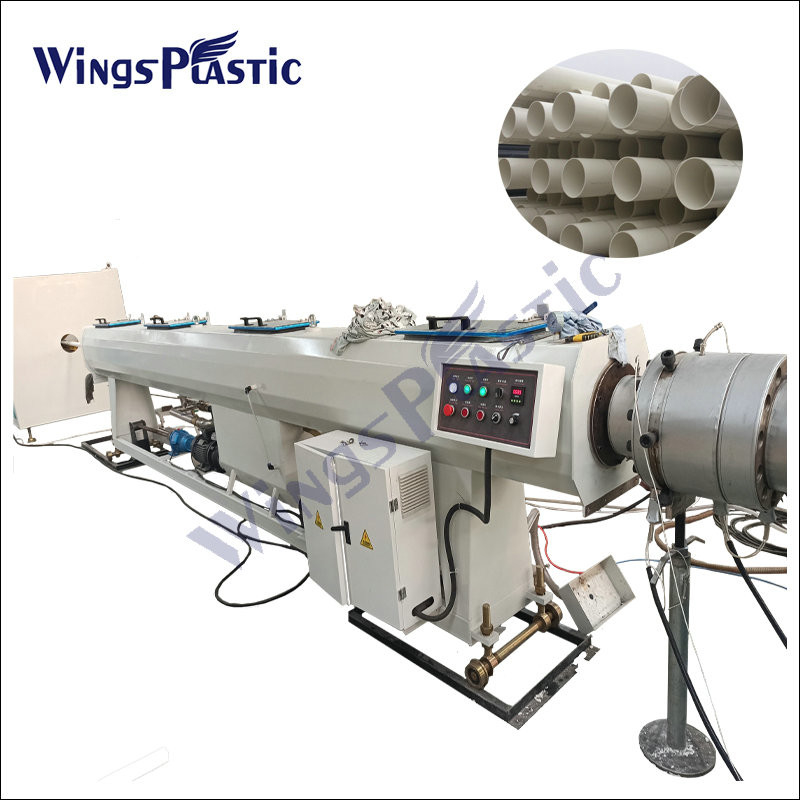

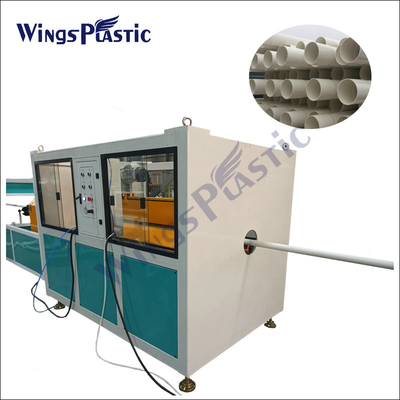

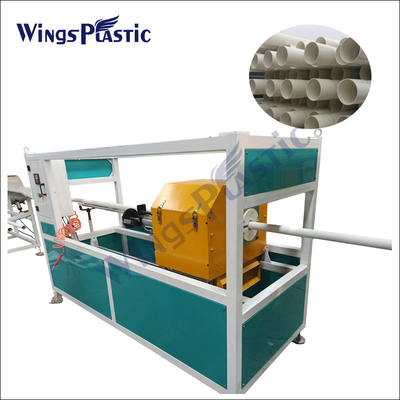

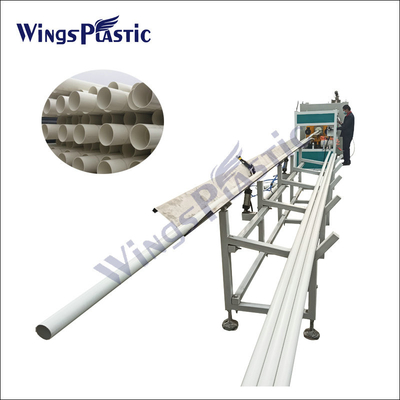

    mould and calibrator→vacuum calibration tank→spraying cooling tank→haul-off machine→cutting machine→stacker

    *Technical Parameter

    Pipe unit specification&model WS110 WS160 WS250 WS400 WS630
    Max pipe diamter(mm) 110 160 250 400 630
    Total power of auxiliary machine(kw) 13 14 19 27.5 35
    Cooling water capacity(m 3 /h) 3 6 6 9 12
    Compressed air pressure(Mpa) 0.6 0.6 0.6 0.6 0.6


    Noting:
    Please feel free to contact us for more information.Additionally,it is worth noting that it will be more advantage if u told the diameter and more detailsof the pipes you are going to produce when sending your messages.

    Advantages of PVC pipes:
    1.smooth inside wall,low friction
    2.The shape of pipes is really round.
    3.Our vacuum calibration tank is based on German Battenfeld Technology and Indian Kabra Design and
    Twin Filter System Ensures Zero Work-down Time.

    PVC pipe machine Line list

    Pipe Range 16-40mm
    (double)
    20-110mm 50-250mm 160-400mm 315-630mm
    Extruder SJZ65/132
    Or
    SJZ51/105
    SJZ65/132 SJZ65/132
    Or
    SJZ80/156
    SJZ80/156 SJZ92/188
    Motor(KW) 37KW
    or
    18.5KW
    37KW 37KW
    Or
    55KW
    55KW 110KW
    Capacity(KG/H) 80-180 150-250 150-350 200-360 400-600
    Lineal speed(M/min) 1-15 1-12 0.3-6 0.2-2 0.1-1

    Applications:

    1. Water supply and drainage pipelines in building;
    2. Rainwater drainage pipelines in building;
    3. Electrical wiring pipe in building;
    4. Air conditioning condensate water systems.


    Competitive Advantage:

    1. Excellent in chemical corrosion, no rust;
    2. With self extinguishing and flame retardant;
    3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60
    degrees Celsius;
    4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7%
    higher than the cast iron pipe;
    5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to
    the steel pipes, low labor intensity, short duration;
    6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23
    to 2kv/mm;
    7. The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is
    narrow.



    PVC Water Pipe Extruder Machine with Conical Twin Screw ExtruderPVC Water Pipe Extruder Machine with Conical Twin Screw ExtruderPVC Water Pipe Extruder Machine with Conical Twin Screw Extruder


    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
