Product Details:
|
| Application: | Pipe | Screw Design: | Single-screw |
|---|---|---|---|
| Product Other Name: | Plastic Flexible Hose Machine | Max Production Speed: | 12-20m/min |
| Plastic Materials: | PVC Granules + Fiber | Pipe Name: | PVC Fiber Reinforced Hose |
| Extruder Type: | Single Screw Extruder | Measurement: | 8000×1200×2000mm(length, Width And High Of Line) |
PVC Garden Hose Production Line, Plastic PVC Garden Hose Machine, PVC Hose Line
PVC Garden Hose Introduction:
Being widely used for irrigation and washing in the garden, park, community, mine, factory and family
Colorful, light, flexible, elastic, protable, excellent function and adaptable to high pressure and tough weather
Anti-UV
Work Temperature: -5ºC-65ºC
pvc fiber hose production line PVC Fiber Reinforced pipe making machine/ PVC Fiber Reinforced pipe production line/PVC Fiber Reinforced Hose Extrusion Line/pvc fiber hose production line
This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .
The Hose making machinery introduction:
1. Good quality single screw extruder equipped with vacuum feeder. The screw is special design for pvc granule materials. High frequency and high speed working.
2. All the electric parts are purchased from famous company, like ABB inverter, Siemens or Schneider, Omron temperature controller, and so on.
3. More options, it could be PLC control system or normal electric control system.
4. Before shippment, the machine will be tested for showing good working.
PVC Garden Hose Production Line, Plastic PVC Garden Hose Machine, PVC Hose Line Informations:
| Model/dato | Diameter | Extruder | Speed | Max capacity | Installed power | Dimension | Weight |
| W20 | 10-20mm | SJ45/28 | 1-10m/min | 40kg/h | 30kw | 20*3.5*2.5m | 8.5t |
| W40 | 16-40mm | SJ65/28 | 1-8m/min | 80kg/h | 60kw | 25*3.5*2.5m | 10t |
| W50 | 20-50mm | SJ75/28 | 1-5m/min | 100kg/h | 75kw | 28*3.5*2.5m | 13t |

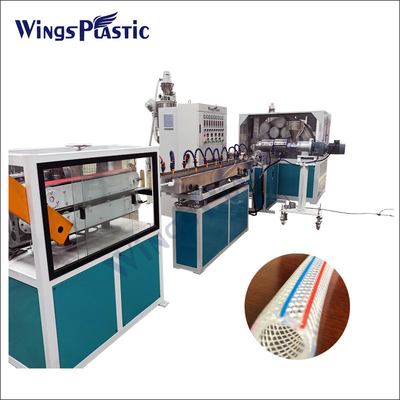

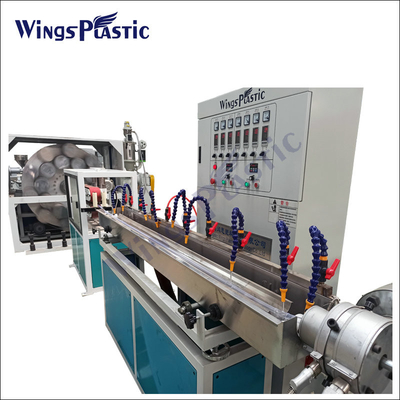

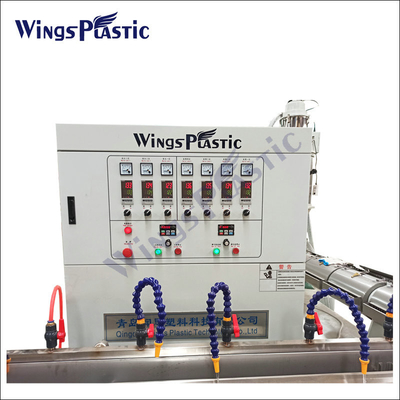

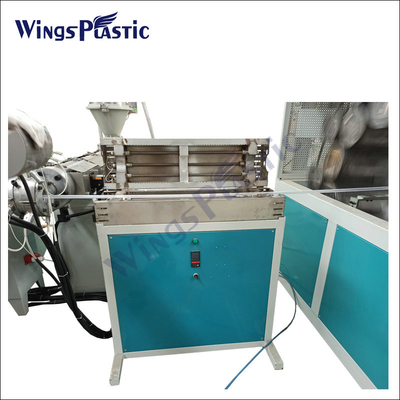

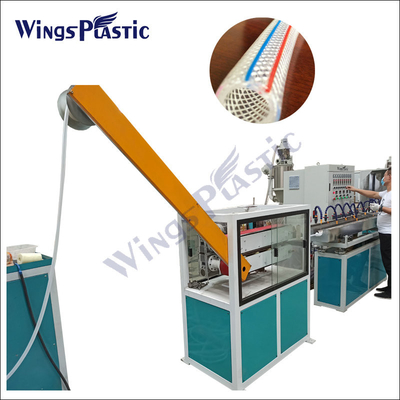

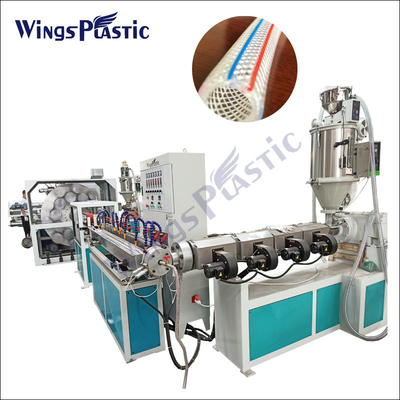

PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line Machinery Pictures:
Q&A
*Q: What’s the price of this machine please?
*A: Dear customer, for each kind of our machines, we have lots of models.
Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.
*Q: What is your advantage in this line?
*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
Company Profile:
Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.
We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
