Product Details:
|
| Application: | Pipe | Screw Design: | Single-screw |
|---|---|---|---|
| Product Other Name: | Plastic Flexible Hose Machine | Max Production Speed: | 12-20m/min |
| Plastic Materials: | PVC Granules + Fiber | Pipe Name: | PVC Fiber Reinforced Hose |
| Extruder Type: | Single Screw Extruder | Measurement: | 8000×1200×2000mm(length, Width And High Of Line) |
Plastic PVC Materials Fiber Reinforced Hose Production Line
PVC Garden Hose / Reinforced PVC Tuing are made of tough PVC materials and high tensile polyester reinforcement, this kind of hose can work under very high working pressure. It is light, flexible, durable, anti-erosion, and explosion resistant.
PVC Garden Hose / Reinforced PVC Tubing Application
The hose is widely used in pneumatic tools, pneumatic washing apparatus, compressors, engine components, machine service and civil engineering equipments.
Main PVC Fiber Reinforced Hose Informations:
| SIZE Inch |
I.D. mm |
O.D. mm |
LENGTH m |
W.P. Mpa |
B.P. Mpa |
WEIGHT Kg/roll |
| 5/16 | 8.5 | 14 | 100 | 2 | 8.5 | 13.0 |
| 3/8 | 10 | 16 | 100 | 2 | 8.0 | 16.5 |
| 1/2 | 13 | 20 | 50 | 2 | 7.5 | 12.0 |
| 5/8 | 16 | 25 | 50 | 1.8 | 6.0 | 19.5 |
| 3/4 | 19 | 28.5 | 50 | 1.7 | 5.2 | 24 |
| 1 | 25 | 34.5 | 50 | 1.5 | 4.8 | 30 |

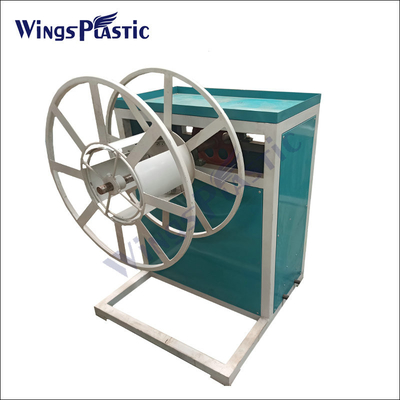

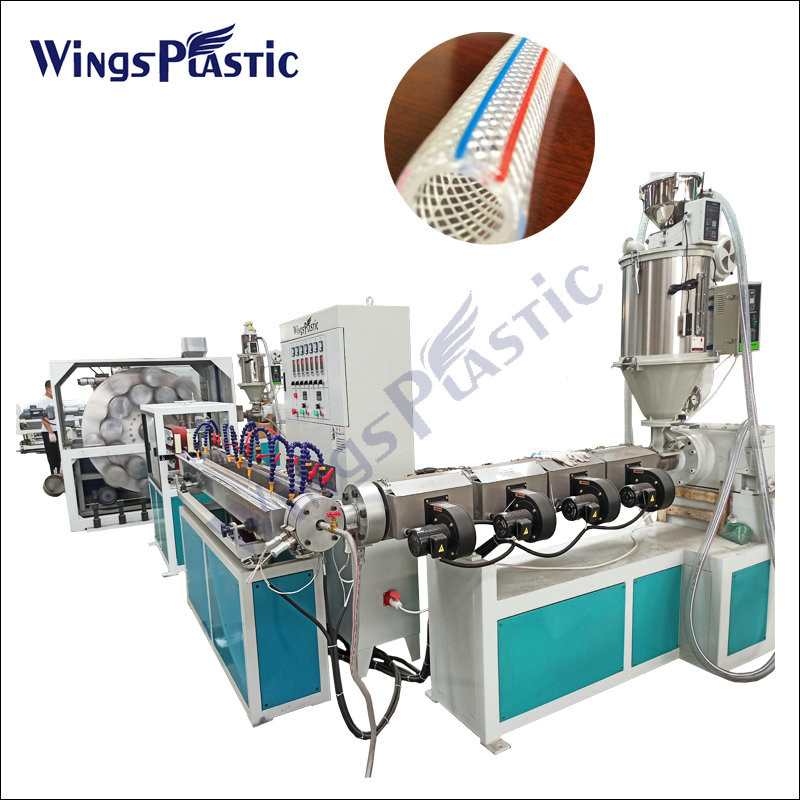

This Line consists of main extruders,water cooling tank, haul off machine, fiber braiding machine,coiler etc, which has reasonable design, unique structure, stable performance ,easy operation and maintenance, constant production capacity, warmly welcomed by customers.
Plastic PVC Materials Fiber Reinforced Hose Production Line Machinery Informations:
| Model/dato | Diameter | Extruder | Speed | Max capacity | Installed power | Dimension | Weight |
| WS20 | 10-20mm | SJ45/28 | 1-10m/min | 40kg/h | 30kw | 20*3.5*2.5m | 8.5t |
| WS40 | 16-40mm | SJ65/28 | 1-8m/min | 80kg/h | 60kw | 25*3.5*2.5m | 10t |
| WS50 | 20-50mm | SJ75/28 | 1-5m/min | 100kg/h | 75kw | 28*3.5*2.5m | 13t |

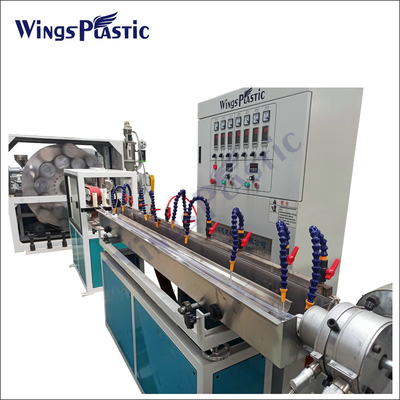

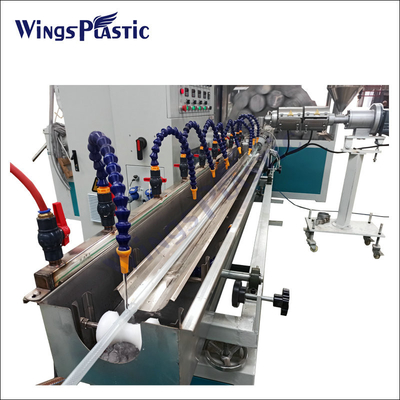

Plastic PVC Materials Fiber Reinforced Hose Production Line Machinery Pictures:
Q&A
*Q: What’s the price of this machine please?
*A: Dear customer, for each kind of our machines, we have lots of models.
Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.
*Q: What is your advantage in this line?
*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
Company Profile:
Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.
We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
