PVC Fiber Reinforced Hose Machine, PVC Braided Hose Production Line

PVC Fiber Reinforced Hose Machine, PVC Braided Hose Production Line
PVC Fiber Reinforced Hose Machine, PVC Braided Hose Production Line PVC Fiber Reinforced Hose Machine, PVC Braided Hose Production Line PVC Fiber Reinforced Hose Machine, PVC Braided Hose Production Line PVC Fiber Reinforced Hose Machine, PVC Braided Hose Production Line PVC Fiber Reinforced Hose Machine, PVC Braided Hose Production Line PVC Fiber Reinforced Hose Machine, PVC Braided Hose Production Line

Large Image :  PVC Fiber Reinforced Hose Machine, PVC Braided Hose Production Line

Product Details:
Place of Origin: Qingdao
Brand Name: WINGS
Certification: CE,ISO
Model Number: 16mm-50mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Email negotiate
Packaging Details: Wooden box and film
Delivery Time: 30 workdays
Payment Terms: T/T 30% for prepayment and 70% after machinery testing
Supply Ability: 100 sets every year

PVC Fiber Reinforced Hose Machine, PVC Braided Hose Production Line

Description
Application: Pipe Screw Design: Single-screw
Product Other Name: Plastic Flexible Hose Machine Max Production Speed: 12-20m/min
Plastic Materials: PVC Granules + Fiber Pipe Name: PVC Fiber Reinforced Hose
Extruder Type: Single Screw Extruder Measurement: 8000×1200×2000mm(length, Width And High Of Line)

PVC hose machine, PVC braided hose production line
Mainly consists; extruder,water tank,haul-off unit,fiber coiling machine and winding machine

PVC fiber reinforced hose machine

The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, the hose possesses of such features as being non-toxic, transparent, resistance to pressure, tensile resistant, acid-alkali resistant and beautiful in appearance, soft and light, and able to stand wear and tears; they are widely used to convey the middle pressure or corrosive gas and liquid. Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters). At the present time, it is widely used to the irrigation pipe to the garden and lawn.

PVC fiber-reinforced hose production line mainly consists of extruder, spray water cooling tank, haul-off unit, fiber coiling machine and winding machine. It is rational in configuration, unique in construction, reliable in performance, simple in operation, convenient for maintenance and high in continuous capability; and has been greatly accepted by the customers.

Plastic PVC Materials Fiber Reinforced Hose Production Line Machinery Informations:

Model/dato Diameter Extruder Speed Max capacity Installed power Dimension Weight
W20 10-20mm SJ45/28 1-10m/min 40kg/h 30kw 20*3.5*2.5m 8.5t
W40 16-40mm SJ65/28 1-8m/min 80kg/h 60kw 25*3.5*2.5m 10t
W50 20-50mm SJ75/28 1-5m/min 100kg/h 75kw 28*3.5*2.5m 13t

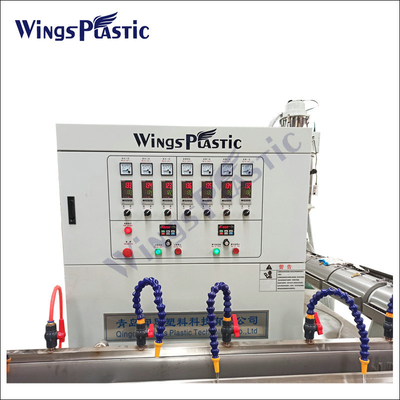

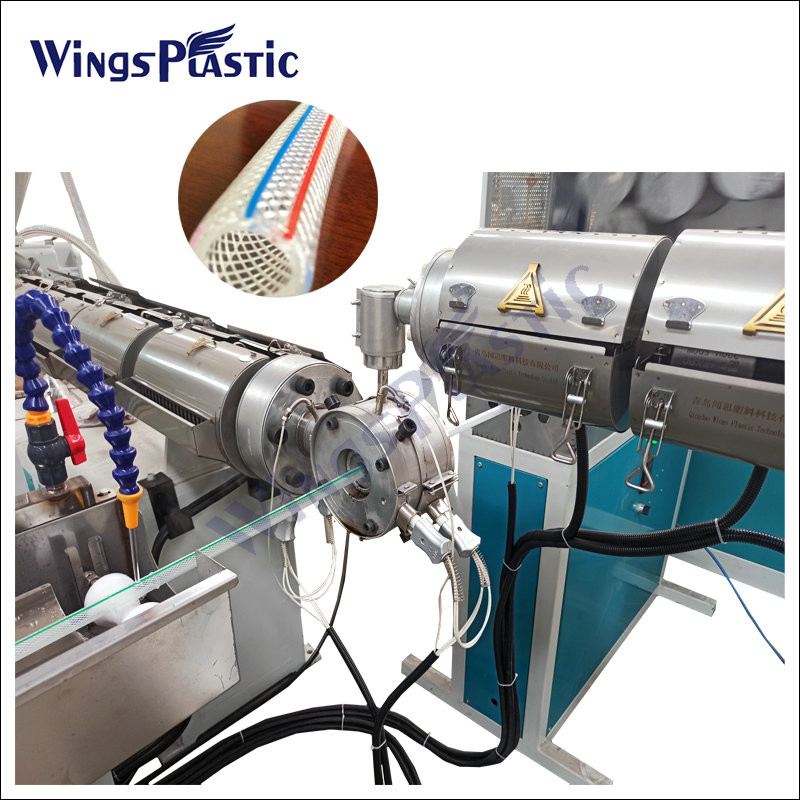

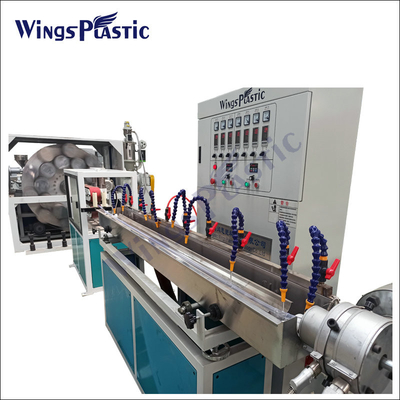

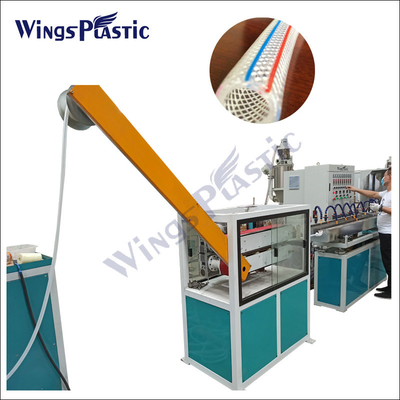

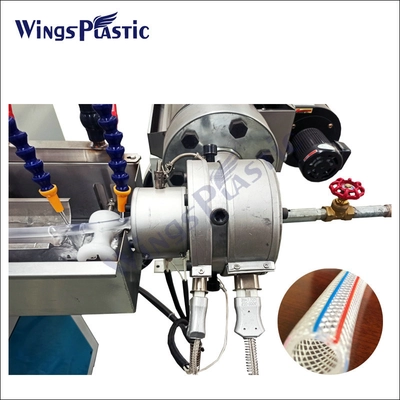

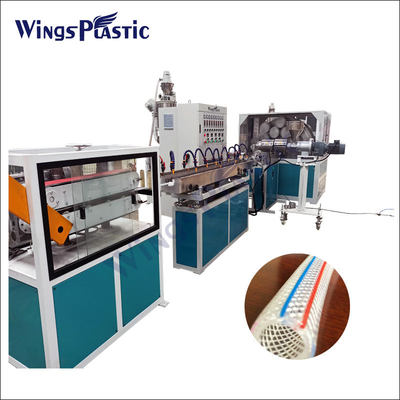

PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line Machinery Pictures:





Q&A

*Q: What’s the price of this machine please?

*A: Dear customer, for each kind of our machines, we have lots of models.

Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

*Q: What is your advantage in this line?

*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

Company Profile:

Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
