PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line

PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line
PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line

Large Image :  PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line

Product Details:
Place of Origin: Qingdao
Brand Name: WINGS
Certification: CE,ISO
Model Number: 16mm-50mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Email negotiate
Packaging Details: Wooden box and film
Delivery Time: 30 workdays
Payment Terms: T/T 30% for prepayment and 70% after machinery testing
Supply Ability: 100 sets every year

PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line

Description
Application: Pipe Screw Design: Single-screw
Product Other Name: Plastic Flexible Hose Machine Max Production Speed: 12-20m/min
Plastic Materials: PVC Granules + Fiber Pipe Name: PVC Fiber Reinforced Hose
Extruder Type: Single Screw Extruder Measurement: 8000×1200×2000mm(length, Width And High Of Line)

PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line

PVC high pressure fiber braided Hose
1. Qualified hi-strength , fiber braiding
2. Constructed of three PVC layers
3. Resistant to high pressure
4. Non-toxic, odorless
5. Long service life

High pressure Fiber braided PVC Hose is used for conveying water, oil and gas under high working pressure in the factory, farm, ship, building and family. It can be also used for gardening, car spray washing, floor cleaning and other daily life uses.

High pressure Fiber braided PVC Hose Characteristics:
1 polyester open mesh braiding permanently encapsulated in walls of clear, flexible PVC tubing
2 Compound does not contain any known cancer-causing chemicals
3 Constructed of three PVC layers, it offers far higher pressure resistent capabilities than unreinforced PVC tubing
4 Mirror smooth interior permits outstanding flow characteristics, more beautiful by adding symbol lines on the surface of the hose
5 anti-UV, flexible
6 Corrosion and abrasion resistant with flexibility similar to rubber but with much longer life

We are offering the pvc high pressure fiber brading hose extruder machine / production line.
This Line consists of main extruders,water cooling tank, haul off machine, fiber braiding machine,coiler etc, which has reasonable design, unique structure, stable performance ,easy operation and maintenance, constant production capacity, warmly welcomed by customers.

PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line Machinery Informations:

Model/dato Diameter Extruder Speed Max capacity Installed power Dimension Weight
WSJ20 10-20mm SJ45/28 1-10m/min 40kg/h 30kw 20*3.5*2.5m 8.5t
WSJ40 16-40mm SJ65/28 1-8m/min 80kg/h 60kw 25*3.5*2.5m 10t
WSJ50 20-50mm SJ75/28 1-5m/min 100kg/h 75kw 28*3.5*2.5m 13t

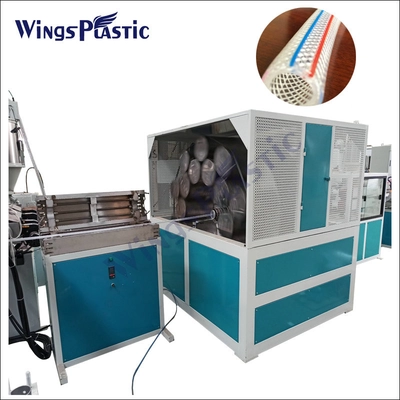

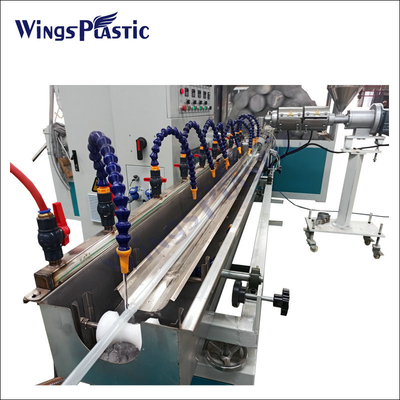

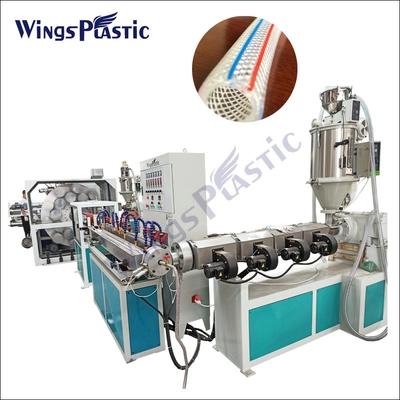

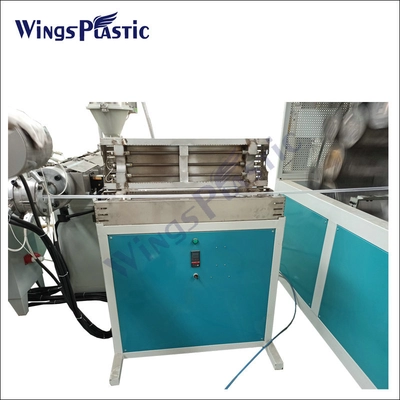

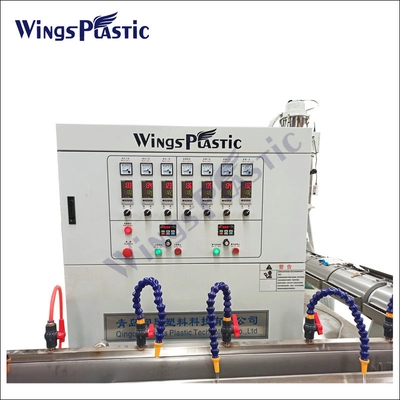

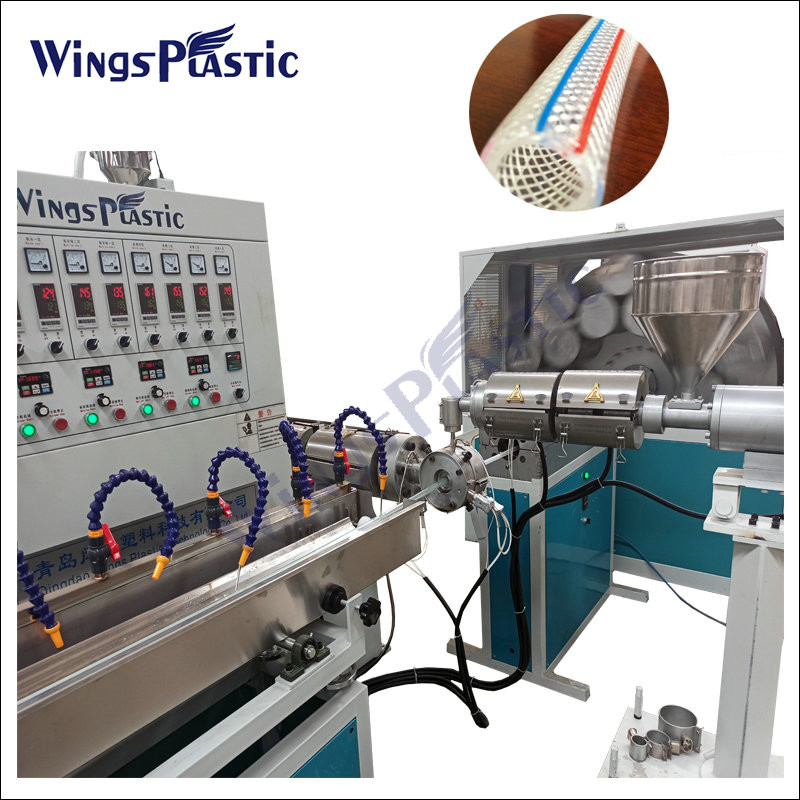

PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line Machinery Pictures:





Q&A

*Q: What’s the price of this machine please?

*A: Dear customer, for each kind of our machines, we have lots of models.

Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

*Q: What is your advantage in this line?

*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
