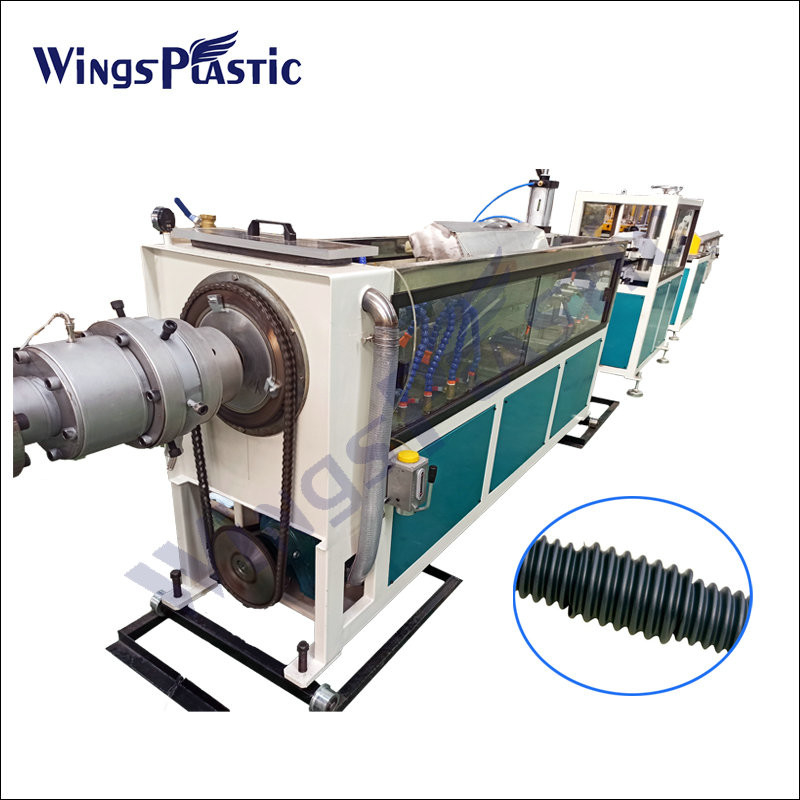

New style PE carbon spiral duct tube extrusion line / extruder machine

New style PE carbon spiral duct tube extrusion line / extruder machine

    • New style PE carbon spiral duct tube extrusion line / extruder machine
    • New style PE carbon spiral duct tube extrusion line / extruder machine
    • New style PE carbon spiral duct tube extrusion line / extruder machine
    • New style PE carbon spiral duct tube extrusion line / extruder machine
    • New style PE carbon spiral duct tube extrusion line / extruder machine
  • New style PE carbon spiral duct tube extrusion line / extruder machine

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Detailed Product Description
    Plastic Processed: PE Application: Pipe
    Screw Design: Single-screw Product Other Name: PE Carbon Corrugated Pipe
    Max Production Speed: 6m/min Plastic Materials: PE + Carbon
    Pipe Name: PE + Carbon Corrugated Pipe Duct Extruder Type: Single Screw Extruder
    Level: Qingdao,China Qulity: CE, ISO

    New style PE carbon spiral duct tube extrusion line / extruder machine

    Features of production line:

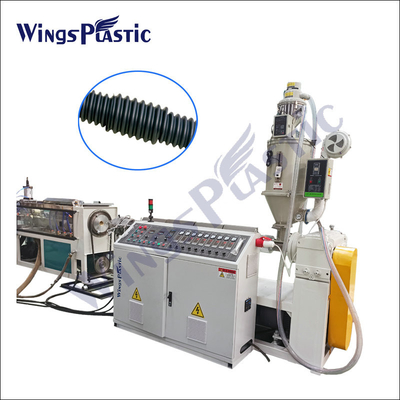

    1. Dedicated single-screw extruder is especially used for producing polyolefin products, and the specialized separating type mix-melting screw possesses features of high-speed extrusion and plasticization, etc.

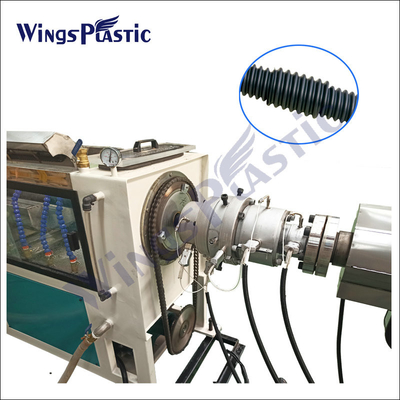

    2. The pipe die head is designed in standard, and the reasonable flowing path ensures smoothness of the inside and outside walls of the pipe. The way of assembling the die head is designed according to the client’s requirement, which saves much room.

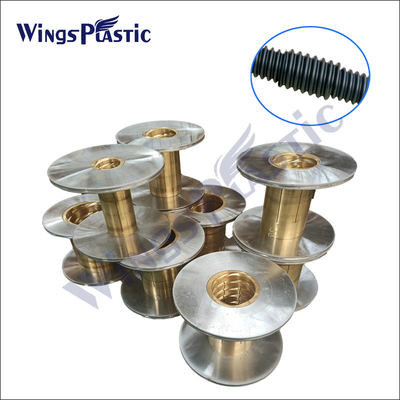

    3. Both scientifically designed copper spiral sizing sheath and the powerful inhaling vacuum device contribute to high extrusion of the pipes.
    4. The tank is made of stainless steel, and automatic controller is used to control the liquid level. The peculiar spraying nozzle brings about effective cooling and the motor ensures longitudinal movement and three-dimensional adjustment in terms of the directions of upward, downward, left and right.
    5.  The special sizing and cooling mode enable the production line to produce pipes whose diameter range is from 25mm to 200mm, at a speed of 0.8to 1.5 meters per minute.

    6.Stainless steel cooling water trough is three-dimensional regulation,longitudinal moved by motor.

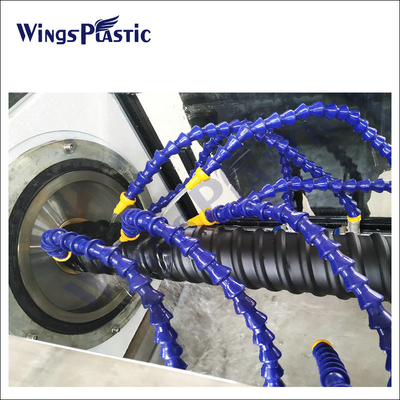

    7.High efficient cooling comes from peculiar spraying nozzle and high efficiency water pump.

    Components

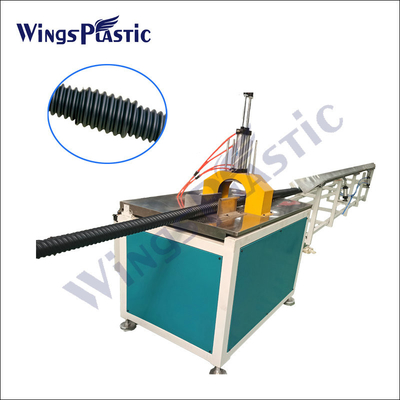

    1. Automatic Feeder   2. Hopper Dryer  3. Single-screw extruder  4. Mould  5. Vacuum Calibration Tank  6. Spray Box  7. Haul-off Machine  8. Cutting  9. Stacker



    The Main Parameters of the machine:

    Model

    SJ-65B

    SJ-90B

    L/D

    30:1

    30:1

    Pipe Diameter(mm)

    50-100

    50-200

    Output(kg/h)

    20-60

    50-100

    Production speed (m/min)

    0.8-1.5

    0.8-1.5

    Power (kw)

    32.7

    50.2






    New style PE carbon spiral duct tube extrusion line / extruder machineNew style PE carbon spiral duct tube extrusion line / extruder machine

    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
