Home ProductsPlastic Double Wall Corrugated Pipe Extruder Machine

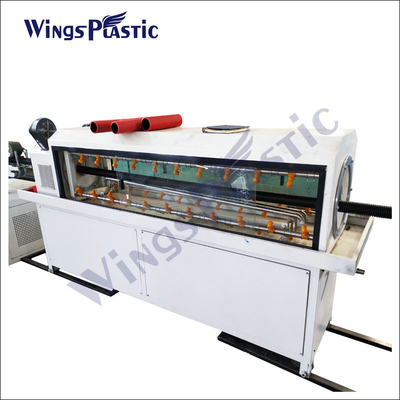

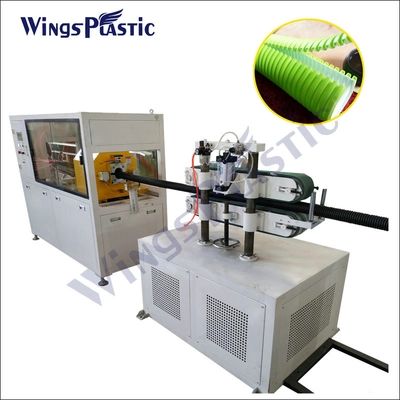

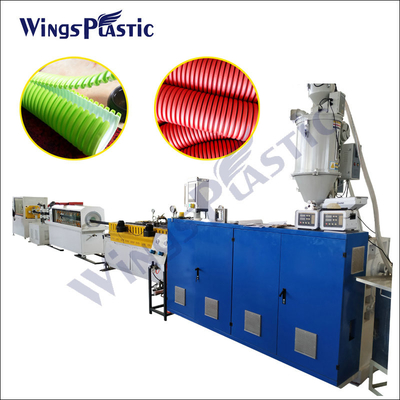

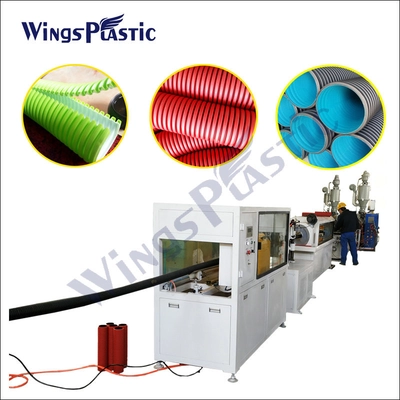

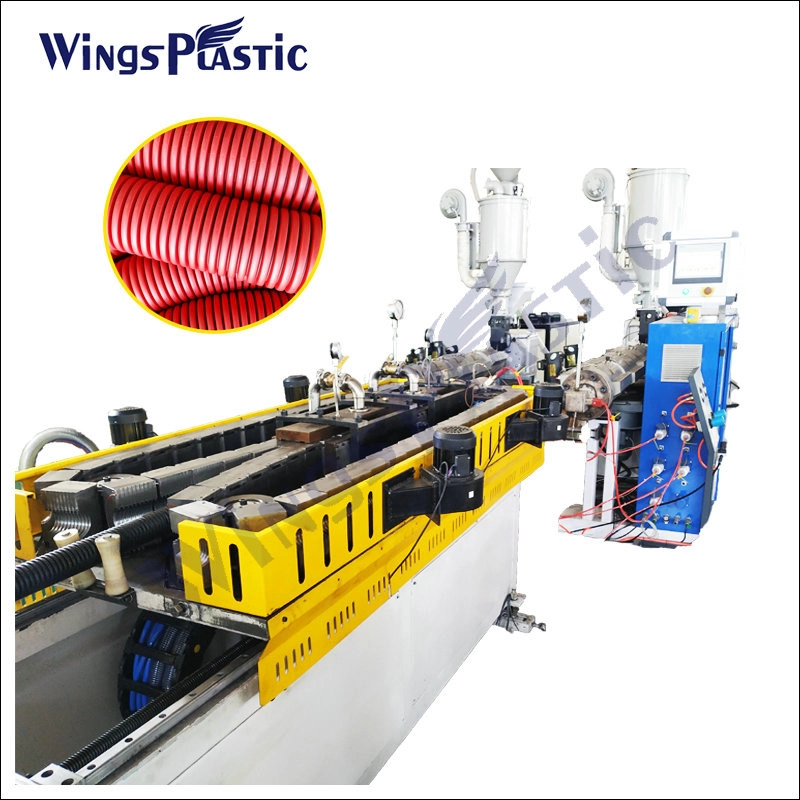

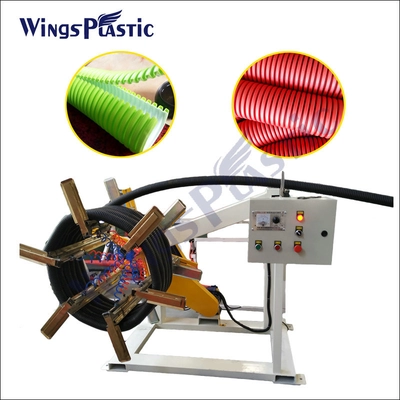

Plastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion Line

Plastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion Line

    • Plastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion Line
    • Plastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion Line
    • Plastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion Line
    • Plastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion Line
    • Plastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion Line
    • Plastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion Line
  • Plastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion Line

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SBG250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Product Other Name: Plastic DWC Pipe Machine Max Production Speed: 4m/min
    Plastic Materials: PP PE Granules / PVC Powder Pipe Name: Double Wall Corrugated Pipe DWC Pipe
    Extruder Type: Single Screw Extruder

       Plastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion Line.
       Application of plastic DWC double wall corrugated pipe:
       It is widely used both at home and abroad as it is an easy and reliable coupling without any complex fitting, and replaces the concrete pipe and cast iron pipe. At present, PE double wall corrugated piping is being used extensively to ensure the development of environmental protection during networking of water and sewerage.
       Plastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion Line Features:
       In order to meet the demand of plastic pipe market, Tianxintai Company designed and developed this HDPE / PP / PVC Double Wall Corrugated Pipe Extrusion Line by absorbing advanced technology from Germany plastic machinery industry. This Plastic DWC Corrugated Pipe Extrusion Line is the latest study achievement in the plastic extrusion field. DWC Double Wall Corrugated Pipe Extrusion Line adopts directly extruding (two extruders' co-extrusion) and forming technology, human-machine interface control system. It makes high automation degree, reliable quality and stable production become true. And this pipe production line wins our home and abroad customers' good reputation.

    Name
    Model
    Dimension
    (L×W×H)mm
    Total Power(kw)
    Weight
    (kg)
    Extruder
    (Co-extrusion)
    SJ75×30
    SJ55×30
    3400×560×3000
    2575×460×2600
    55(max)
    22(max)
    4500
    2000
    Extruder
    ( Single-extrusion)
    SJ90×30
    3400×560×3000
    110(max)
    4500
    Mould Blocks
    (ID)
    PE50
    2000×Φ300
    16(max)
    100
    PE63
    150
    PE75
    160
    PE90
    180
    PE110
    300
    PE125
    2000×Φ326
    350
    PE145
    400
    PE160
    420
    PE200
    450
    Corrugator
    SBCJ200
    3940×1720×2070
       4(max)
    5000
    Cutter
    QG200
    2715×1000×1720
    2.2
    800
    Unloading Bracket
    JGJ200
    5000×800×1000

    150
    Plastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion LinePlastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion LinePlastic DWC Pipe Manufacturing Machine / HDPE Corrugated Pipe Extrusion Line



    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
