HDPE DWC Corrugated Pipe Extrusion Machine Manufacturer In China

HDPE DWC Corrugated Pipe Extrusion Machine Manufacturer In China

    • HDPE DWC Corrugated Pipe Extrusion Machine Manufacturer In China
    • HDPE DWC Corrugated Pipe Extrusion Machine Manufacturer In China
    • HDPE DWC Corrugated Pipe Extrusion Machine Manufacturer In China
    • HDPE DWC Corrugated Pipe Extrusion Machine Manufacturer In China
    • HDPE DWC Corrugated Pipe Extrusion Machine Manufacturer In China
    • HDPE DWC Corrugated Pipe Extrusion Machine Manufacturer In China
  • HDPE DWC Corrugated Pipe Extrusion Machine Manufacturer In China

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SBG500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Product Other Name: Plastic DWC Pipe Machine Max Production Speed: 4m/min
    Plastic Materials: PP PE Granules / PVC Powder Pipe Name: Double Wall Corrugated Pipe DWC Pipe
    Extruder Type: Single Screw Extruder Origin: Qingdao,China
    Cooling Way: Water Cooling System

    HDPE DWC Pipe Extrusion Machine Manufacturer In China


    DWC Pipe Introduction:

    HDPE double wall corrugated pipes (double-layer twisted pipes) are one mould profile two layer extruding. Applies to rain water drainage, sewage drainage in residential district, or pollutant and exhaust gas discharge as well as sewage drainage for mine industry, or organic pollutants drainage from people's life, agricultural drainage, low pressure irrigation and coalmine ventilation.



    DWC Pipe Features:

    1. High tensile strength, compressive resistance and well impact resistance;
    2. Anti-uneven settling property, and can be applicable to soft clay shifting sand foundation;
    3. Convenient for connection with non-breakable joint.
    4. Smooth inner wall, high friction resistance, large quantity of water flowing.
    5. Decay resistance, "green pipe", avoid secondary pollution.
    6. Light weight, easy for carrying and transporting, convenient for construction with low comprehensive cost.

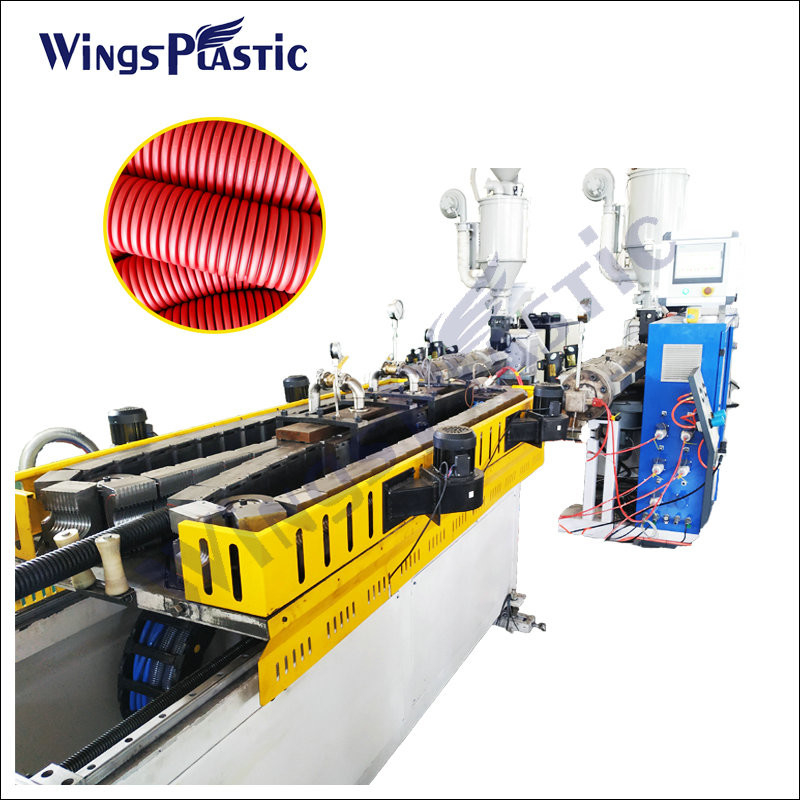

    DWC Pipe Corrugator Machinery Technology Informations:

    Corrugator is adopted horizontal structure with chain type transmission, equipped with open water cooling system and vacuum forming system. It greatly increases the production speed. The belling on line function decreases investment cost and improves production efficiency. Mold block moving adopts synchronous upper and lower mechanical drive system and advanced self-lubrication system. It assures moving accuracy and pipe quality stability.



    HDPE DWC Pipe Extrusion Machinery Informations:

    Name Model

    Dimension

    (L×W×H)mm

    Total Power

    (kw)

    Weight

    (kg)

    Extruder

    SJ90×30

    SJ75×30

    3780×600×3000

    3400×560×3000

    110(max)

    55(max)

    6000

    4500

    Mould Blocks

    (ID)

    PE200 2000×Φ326



    50 (max)



    2100
    PE300 2300×Φ440 2200
    PE400 2400
    PE500 2600
    Corrugator SBCJ500 4600×2120×2180 50(max) 10000
    Water Tank LQB500 5100×1000×1500 4 1000
    Cutter QG6030 4252×2100×2400 7.5 3600
    Unloading Bracket JGJ500 5220×2100×830   230


    HDPE DWC Corrugated Pipe Extrusion Machine Manufacturer In ChinaHDPE DWC Corrugated Pipe Extrusion Machine Manufacturer In ChinaHDPE DWC Corrugated Pipe Extrusion Machine Manufacturer In China

    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
