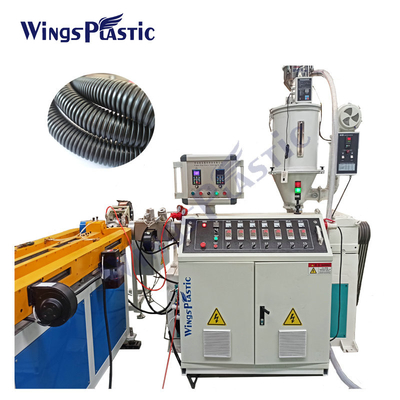

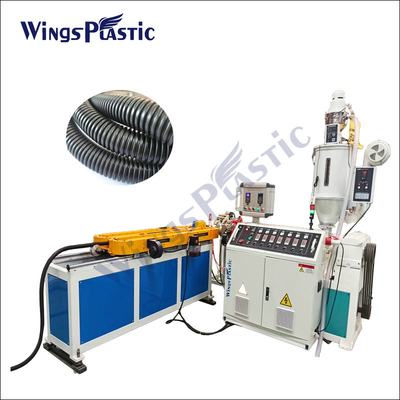

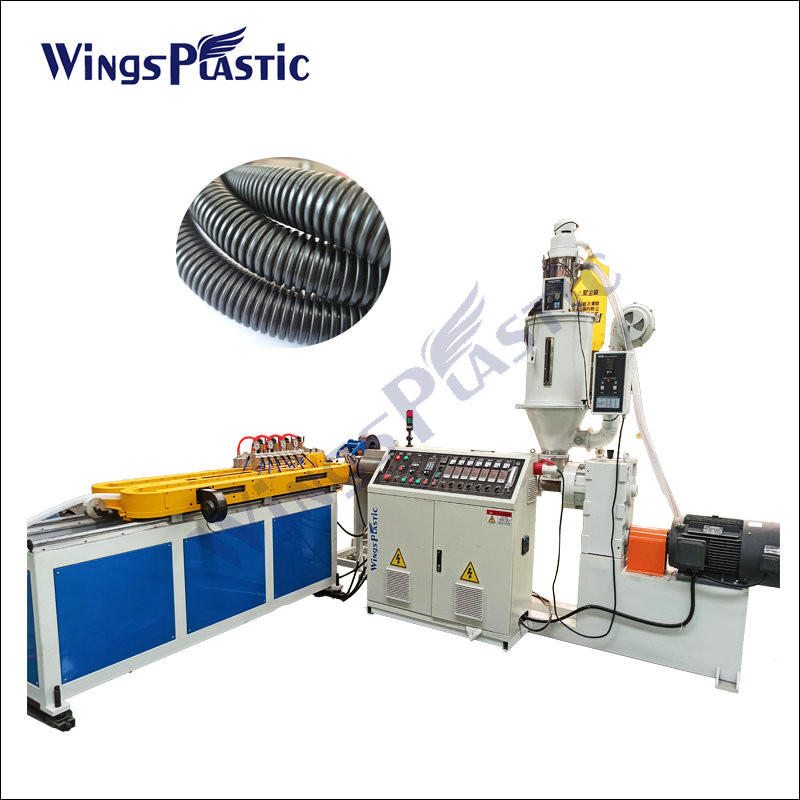

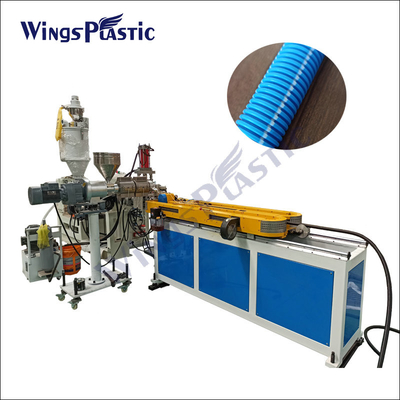

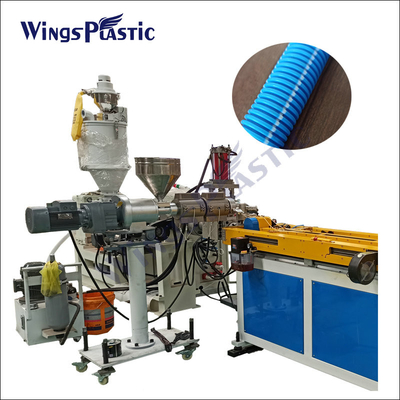

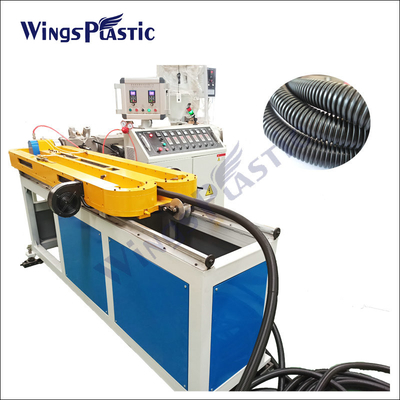

PE PP PVC Corrugated Electric Conduit Pipe Making Machine

PE PP PVC Corrugated Electric Conduit Pipe Making Machine

    • PE PP PVC Corrugated Electric Conduit Pipe Making Machine
    • PE PP PVC Corrugated Electric Conduit Pipe Making Machine
    • PE PP PVC Corrugated Electric Conduit Pipe Making Machine
    • PE PP PVC Corrugated Electric Conduit Pipe Making Machine
    • PE PP PVC Corrugated Electric Conduit Pipe Making Machine
    • PE PP PVC Corrugated Electric Conduit Pipe Making Machine
  • PE PP PVC Corrugated Electric Conduit Pipe Making Machine

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: 16mm-50mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Application: Pipe Screw Design: Single-screw
    Product Other Name: Plastic SWC Pipe Extrusion Machine Max Production Speed: 12-20m/min
    Plastic Materials: PP PVC PE PA Granules

         PE PP PVC Corrugated Electric Conduit Pipe Making Machine

        Performance and advantages: PVC single wall corrugated pipe production line use special screw, mold structure design is reasonable, convenient and reliable mould replacement, solved the difficulty of the screw barrel and material forming, line speed, stable running, easy operation control cylinder nimble.

        Material: PP PVC PE PA granule

        Configurations of Extrusion Line:

    1. Single screw extruder: FSJ-65×30    or 65/28

        Screw diameter: 65mm

        L/D: 30  or 28

        Motor: AC 37kw

        Max. Rotate speed: 90rpm

        Heater: Ceramic heater

        Heating power: 22kW  4zones

        Blower Motor : 180w , 4zones , High efficient and lower noise blower.

        Max.output: 65kg/h (14m/min for 20mm single wall corrugated pipe,10m/min for 50mm)

    b) Other parts

        Automatic loader, square stainless hopper, stainless hopper on the extruder .

    2. Die head                                                  Quantity:1 set

       Material :40Cr , the surface of die is chromeplated, anti-corrosive

       Specifications: Ø10-50mm. Heating power: 3kw

    3. Forming Unit                                      Quantity:1 set

       a) Material of mould block: 40 Cr

       b) Forming mould block: Ø10-50mm ,Mould Quantity: 1 set.

    c) Motor power: 4 kW

    d) Forming speed :1-20m/min

    e) Cooling metod: water cooling

    f) The transmission way: Gear drive,new technology,normally 12-14m/min extrusion speed.

    g) Be installed with high efficient cooling system

    4. Double wheel coiler                                   Quantity: 1 set

      a) No. of wheel:  two

      b) Speed : 1-20/min

      c) Motor : 5N.M moment motor

    5. Digital controller

      a) Temperature controller: OMRON

      b) Other electrical equipment: Siemens/Delta

     Ⅲ. Conditions For Production

      1. Total installed power: 65kw, 380V three phases+N+G, 50HZ (According customer’s demand)

    Load factor: 55%-80%

    2. Cooling circulars water: 1m3/h

    3. Compress air:0. 3m3/min

    4. Measurement: 8000×1200×2000mm(length, width and high of line)



    PE PP PVC Corrugated Electric Conduit Pipe Making MachinePE PP PVC Corrugated Electric Conduit Pipe Making MachinePE PP PVC Corrugated Electric Conduit Pipe Making Machine



    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
