Home ProductsPlastic Single Wall Corrugated Pipe Extruder Machine

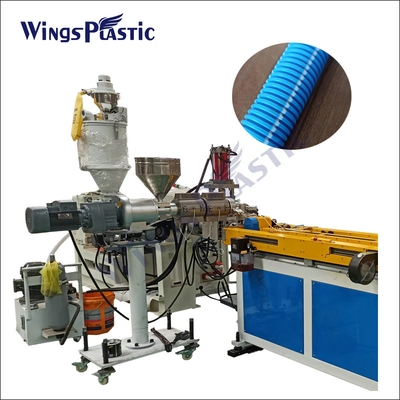

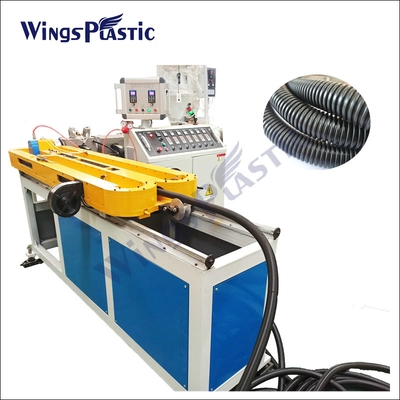

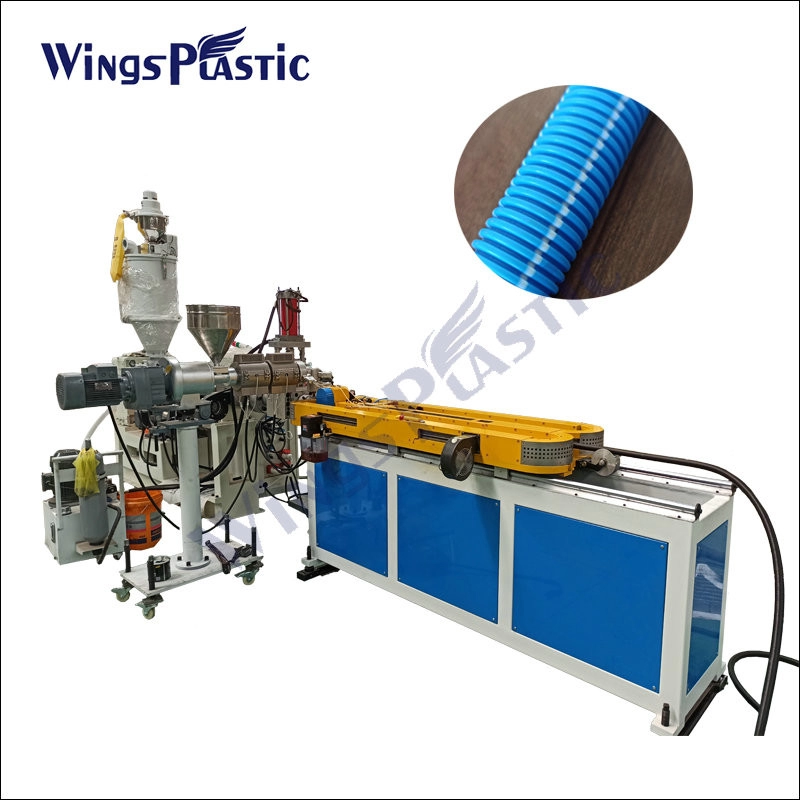

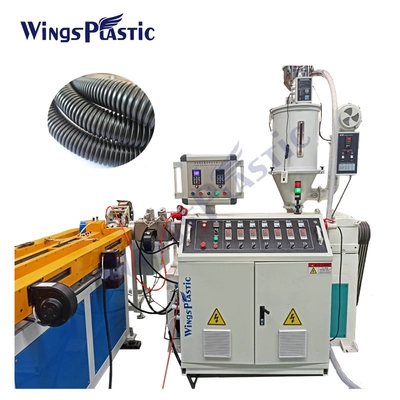

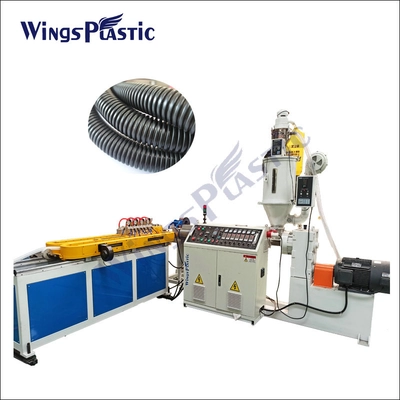

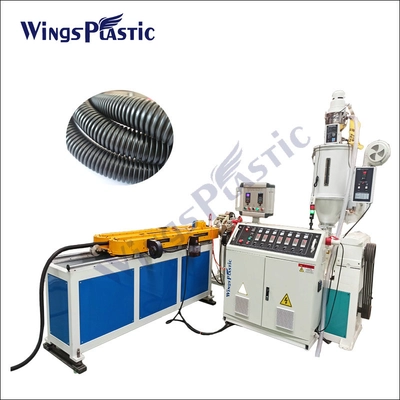

10-32mm Single Wall Corrugated Pipe Extrusion Line

10-32mm Single Wall Corrugated Pipe Extrusion Line

    • 10-32mm Single Wall Corrugated Pipe Extrusion Line
    • 10-32mm Single Wall Corrugated Pipe Extrusion Line
    • 10-32mm Single Wall Corrugated Pipe Extrusion Line
    • 10-32mm Single Wall Corrugated Pipe Extrusion Line
    • 10-32mm Single Wall Corrugated Pipe Extrusion Line
    • 10-32mm Single Wall Corrugated Pipe Extrusion Line
  • 10-32mm Single Wall Corrugated Pipe Extrusion Line

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: 10mm-32mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Product Other Name: Corrugated Expansion Pipe Making Machine Extrusion Speed: 12-20m/min
    Screw Type: Single Screw Extruder Origin: Qingdao
    Technology: Germany Quality: CE, ISO
    Pipe Name: Expansion Corrugated Pipe Machinery Color: Blue

       Corrugated Expansion pipe making machine



       PA/PE/PP/PVC single wall corrugated pipe production line
    Specializing in supply plastic corrugated pipe production line, our factory is specialized in the production of plastic corrugated pipe production line in shandong area, the advantages of plastic corrugated pipe production line;Production speed, the fastest in the industry, plastic single-wall corrugated pipe machine, low noise, convenient and easy to operate, single wall corrugated pipe mold, free debugging, training technical personnel. To provide technical support for the original manufacturer, plastic corrugated pipe production line, compact structure, simple operation, multi-usage. High ring stiffness, small friction coefficient, long life ageing resistance, corrosion resistance, good flexibility. The company promises to ensure product quality and after-sales service.

       Application :

       Single wall corrugated pipe can be widely used in golf course, playgrounds as light load of drainage, floods; Interior decoration wire casing; Automotive wire casing; Prestressed anchor cable casing; Air conditioner drain, etc.

       This corrugated pipe  production line can be used to produce single-wall or one wall corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
    Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used as wires of the up-market cars.



    Process flow:

       Raw material + master batches → mixing → vacuum feeding → material dryness → single screw extruder → extrusion mould → corrugation forming machine → meter measurer→ double winder → finished product inspecting & packing

       This plastic corrugated pipe line equips with high quality machines in the whole line, with good equipments, the plastic corrugated pipe line can produce pipes stable and fast. Also all these machines share a ling service life which reduces buyer's cost.

    Line Model

    Extruder model

    Production scope

    Output

    Total Power

    Production speed

    PE-40

    SJ-45/30

    Φ6-40mm

    60kg/h

    25KW

    6-10m/min

    PE-63

    SJ-65/30

    Φ12-63mm

    80kg/h

    30KW

    6-10m/min

    PA-40

    SJ-45/28

    Φ6-40mm

    60kg/h

    25KW

    6-10m/min

    PVC-50

    SJ51/105

    Φ16-50mm

    100kg/h

    27KW

    6-10m/min



    10-32mm Single Wall Corrugated Pipe Extrusion Line10-32mm Single Wall Corrugated Pipe Extrusion Line10-32mm Single Wall Corrugated Pipe Extrusion Line



    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
