Plastic PE single wall corrugated pipe machine made in China

Plastic PE single wall corrugated pipe machine made in China

    • Plastic PE single wall corrugated pipe machine made in China
    • Plastic PE single wall corrugated pipe machine made in China
    • Plastic PE single wall corrugated pipe machine made in China
    • Plastic PE single wall corrugated pipe machine made in China
    • Plastic PE single wall corrugated pipe machine made in China
    • Plastic PE single wall corrugated pipe machine made in China
  • Plastic PE single wall corrugated pipe machine made in China

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: 5mm-50mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Plastic Processed: PP Application: Pipe
    Screw Design: Single-screw Product Other Name: Plastic Pipe Corrugator Machine
    Extrusion Speed: 10-20m/min Origin: Qingdao City In China
    Cooling Way: Water And Air Cooling Electronic Parts: Siemens
    Plastic Materials: Plastic Granules Feeding System: Automatic Feeding
    Machinery Other Name: Single Wall Corrugator Level: Chinese Top
    Machinery Color: Yellow Cooling System: Water+air Cooling

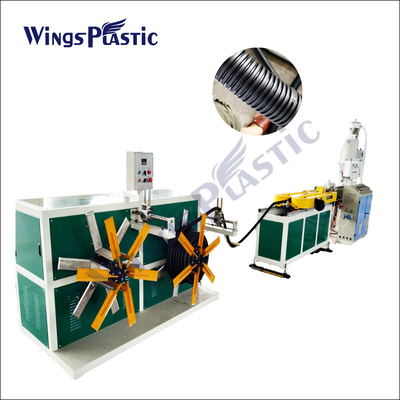

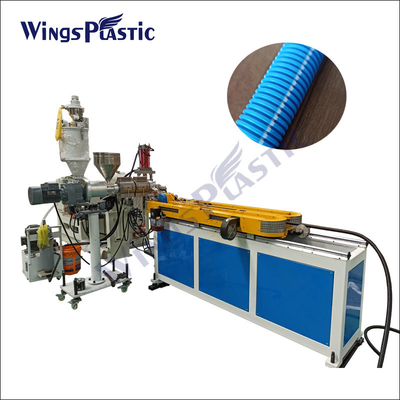

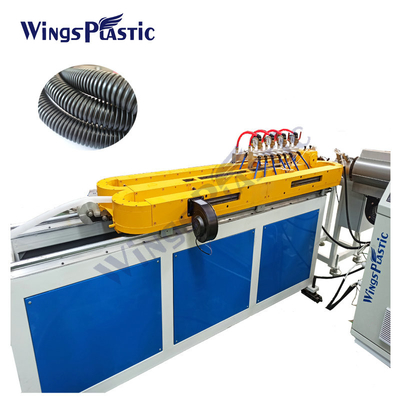

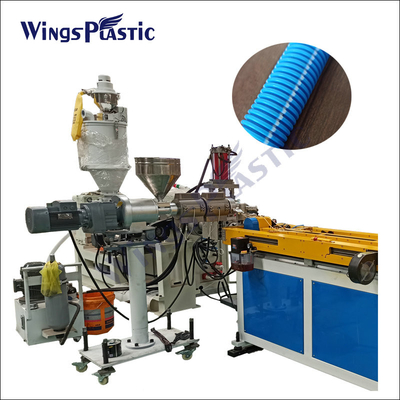

        Plastic PE single wall corrugated pipe machine made in China



       Qingdao Wings Plastic Technology Co.,Ltd pipe equipment:

        The single wall corrugated pipe machine can extrude  PP, PE. PVC. EVA AND PA  corrugated pipe. It is  high intensity,  good flexibility and use in the electric thread-passing pipes, circuit of machine tool. protective pipe so flight.

        Plastic single-wall corrugated pipes have feathers of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.

        They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

        We have the confidence to say that we are the best manufacturer for single wall corrugated pipe extrusion machine. We use gear driven and could produce the 20mm diameter corrugated pipe with 20m/min speed.

         We are the only one company which has nature technology for gear driven single wall corrugated pipe machine in China, it is water and air cooling system. This technology is different with old chain driven technology with only air cooling technology which is only 5-6m/min extrusion speed.



     Model

    SJ-30

    SJ-45

    SJ-65

     Pipe diameter  (mm)

    4.5-9

    9-32

    32-50

    L/D

    30:1

    28:1

    30;1

    Motor power (kw)

    4

    11

     8.5

    Pair of modules

    38

    42

     52

    Output ( kg/h )

    10

    40

     80

     Prodcution  speed

    6-10

    12-20

    12-20



    Plastic PE single wall corrugated pipe machine made in ChinaPlastic PE single wall corrugated pipe machine made in ChinaPlastic PE single wall corrugated pipe machine made in China



    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
