PE Single Wall Corrugated Pipe Making Machine

PE Single Wall Corrugated Pipe Making Machine
PE Single Wall Corrugated Pipe Making Machine PE Single Wall Corrugated Pipe Making Machine PE Single Wall Corrugated Pipe Making Machine PE Single Wall Corrugated Pipe Making Machine PE Single Wall Corrugated Pipe Making Machine PE Single Wall Corrugated Pipe Making Machine

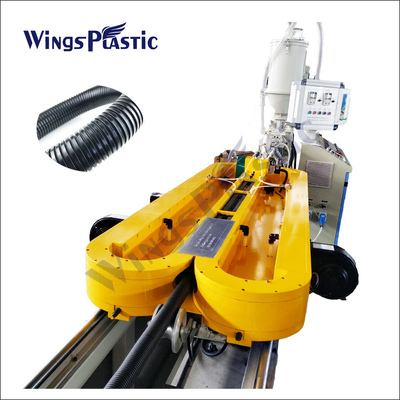

Large Image :  PE Single Wall Corrugated Pipe Making Machine

Product Details:
Place of Origin: Qingdao, China
Brand Name: WINGS
Certification: CE,ISO
Model Number: 3mm-9mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Email negotiate
Packaging Details: Wooden box and film
Delivery Time: 30 workdays
Payment Terms: T/T 30% for prepayment and 70% after machinery testing
Supply Ability: 100 sets every year

PE Single Wall Corrugated Pipe Making Machine

Description
Plastic Processed: PE Application: Pipe
Screw Design: Single-screw Product Other Name: Single Wall Corrugated Pipe Extruder
Extrusion Speed: 10m/min Level: Germany
Quality: ISO, CE Plastic Materials: PE, PVC ,PP ,PA
Pipe Name: Corrugated Pipe Origin: China, Qingdao

    PE Single Wall Corrugated Pipe Making Machine



    Plastic corrugated pipe application range
    The main application;Instrument, control cabinet, equipment manufacturing, engineering installation,    train, automobile, corrugated pipe line, subway, machine tools machinery, automatic control, etc
Plastic corrugated pipe development prospects

    PE PVC single wall corrugation pipe extrusion line plastic machine

  • Close type corrugator and vacuum for forming
  • Forming module is moving in a tunnel
  • Forming tunnel is clod by water
  • Forming module is made of hard alloy steel and anti-corrosion and abrasion.
  • No any connection between forming module, the reduce time to change.
  • Provide single sand double wall corrugation pipe head die.

    The line shall be used to produce small diameter single wall corrugation pipe in PVC,PP and PE raw material. Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct; Small size corrugated pipe of 4-6.7 are used in car.



Extruder SJ 30/25 SJ 45/33 SJ 65/30 SJ 65/33
Main motor power 5.5kw 11-18.5kw 30-45kw 55kw
Molding 52pairs 45-72pairs 50-72pairs 55pairs
Pipe diameter 4-17mm 10-35mm 40-110mm 72-200mm
Speed 5-15m/min 15-20m/min 10-20m/min 3-15m/min
Output 15kg/h 60-100kg/h 100-150kg/h 100-180kg/h







Q&A

*Q: What’s the price of this machine please?

*A: Dear customer, for each kind of our machines, we have lots of models.

Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

*Q: What is your advantage in this line?

*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

Company Profile:

Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
