Home ProductsPlastic Single Wall Corrugated Pipe Extruder Machine

Plastic Single-wall Corrugated Pipe Extrusion Production Line

Plastic Single-wall Corrugated Pipe Extrusion Production Line

    • Plastic Single-wall Corrugated Pipe Extrusion Production Line
    • Plastic Single-wall Corrugated Pipe Extrusion Production Line
    • Plastic Single-wall Corrugated Pipe Extrusion Production Line
    • Plastic Single-wall Corrugated Pipe Extrusion Production Line
    • Plastic Single-wall Corrugated Pipe Extrusion Production Line
    • Plastic Single-wall Corrugated Pipe Extrusion Production Line
  • Plastic Single-wall Corrugated Pipe Extrusion Production Line

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: 3-63mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Product Other Name: Plastic Flexible Hose Making Machine Extrusion Speed: 10-20m/min
    Machinery Length: 16000mm Quality: ISO, CE
    Plastic Materials: PE, PVC ,PP ,PA Granules Pipe Name: Flexible Conduit
    Machinery Color: Blue Cooling Way: Water + Air Cooling System
    Inverter: ABB After-sales Service Provided: Engineers Available For Installation And Training

    Plastic single-wall corrugated pipe extrusion production line, corrugated pipe equipment, production of plastic threaded corrugated pipe machine.


    Qingdao Wings Plastic Technology Co., Ltd. specializes in the production of various types of plastic pipe extrusion equipment. The products include but are not limited to: high-speed plastic single-wall corrugated pipe production line, chain gear moulds corrugated hose production line, plastic double-wall corrugated pipe production line, pre-stressed corrugated pipe production line, etc.
    The characteristics of the company's single-wall bellows production line are as follows:
    1. Using high-speed and high-efficiency single screw extruder not only saves electricity and efficiency, but also does not increase the pressure of the extruder head, so it is easy to form corrugated pipes.
    2. High-speed forming machine adopts tunnel structure, water cooling mode, and there is no link between the module and the module. The module has long service life and convenient replacement. The fastest production speed can reach 25 meters per minute.
    3. The common speed chain forming machine also uses water cooling mode, but adopts the mode of joint transmission of module chain and gear. This kind of structure is of high quality and low price.
    4. The coiler is controlled by frequency conversion motor and potentiometer, and abandons the old torque motor. The structure will not stretch the corrugated pipes.



    Welcome to get your request by email: info@wingsplastic.com



    Here is our system basic informations for single wall corrugated pipe machine.



    Machinery Type Pipe Diameter OD Moulds Quantity Forming Speed
    WS-16/54 7mm-16mm 54 Pairs 15m/min
    WS-38/44 12mm-38mm 44 Pairs 15m/min
    WS-38/72 12mm-38mm 72 Pairs 20m/min
    WS-38/81 12mm-38mm 81 Pairs 30m/min
    WS-52/60 16mm-52mm 60 Pairs 20m/min
    WS-75/60 30mm-75mm 60 Pairs 15m/min
    WS-110/60 50mm-110mm 60 Pairs 10m/min

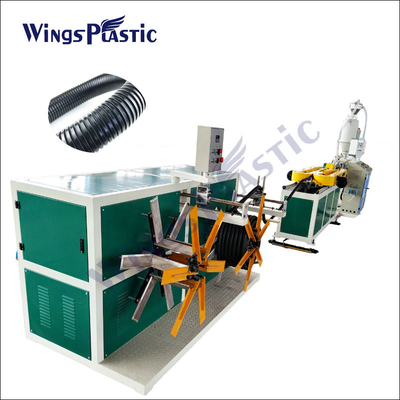

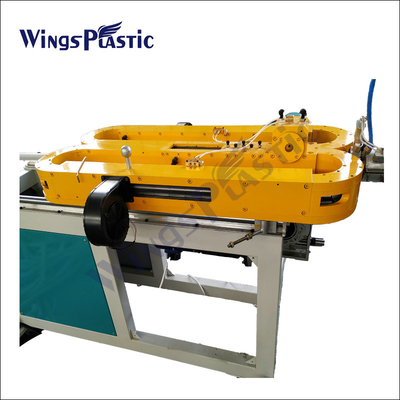

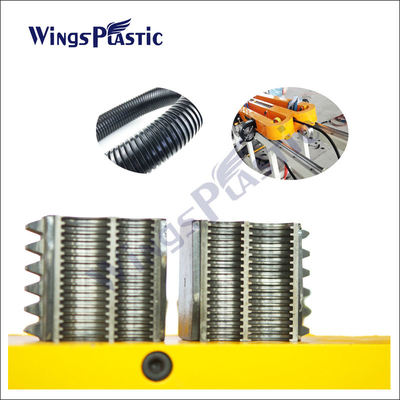

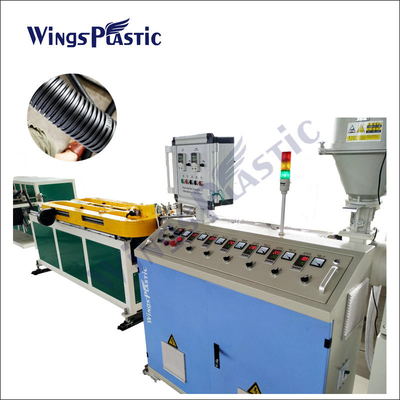

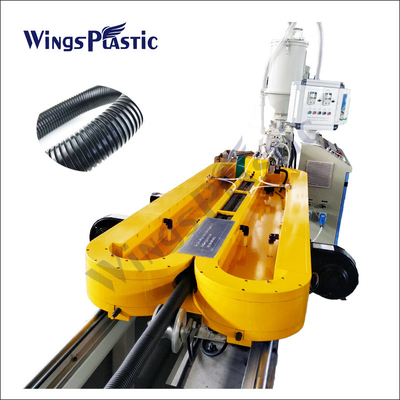

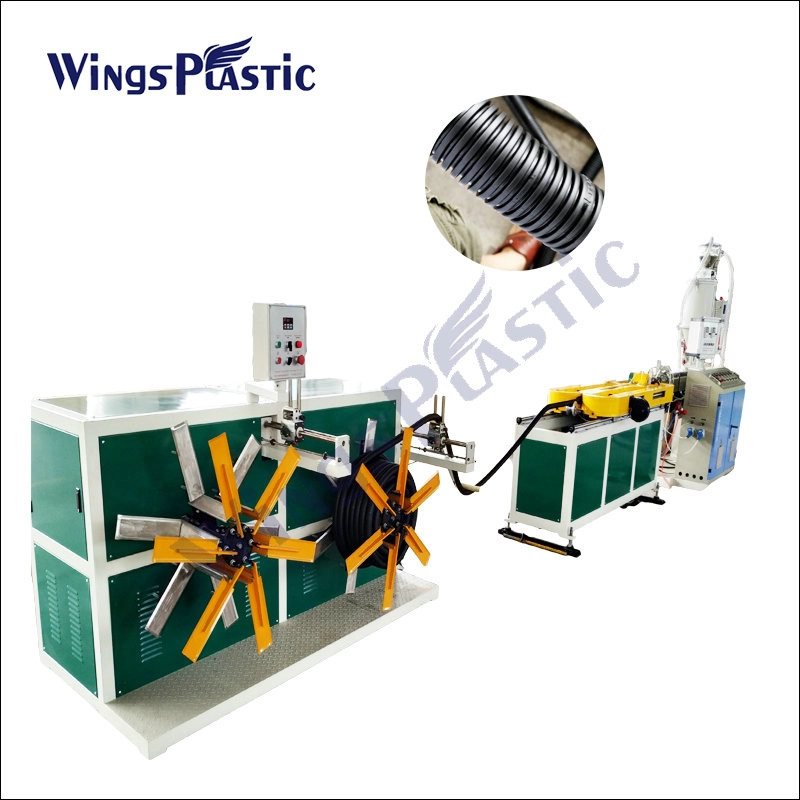

    Single wall corrugated hose production line photo: (tested in factory for customers)



    Plastic Single-wall Corrugated Pipe Extrusion Production LinePlastic Single-wall Corrugated Pipe Extrusion Production LinePlastic Single-wall Corrugated Pipe Extrusion Production LinePlastic Single-wall Corrugated Pipe Extrusion Production Line

    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
