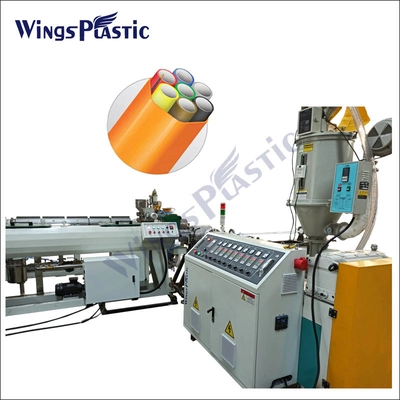

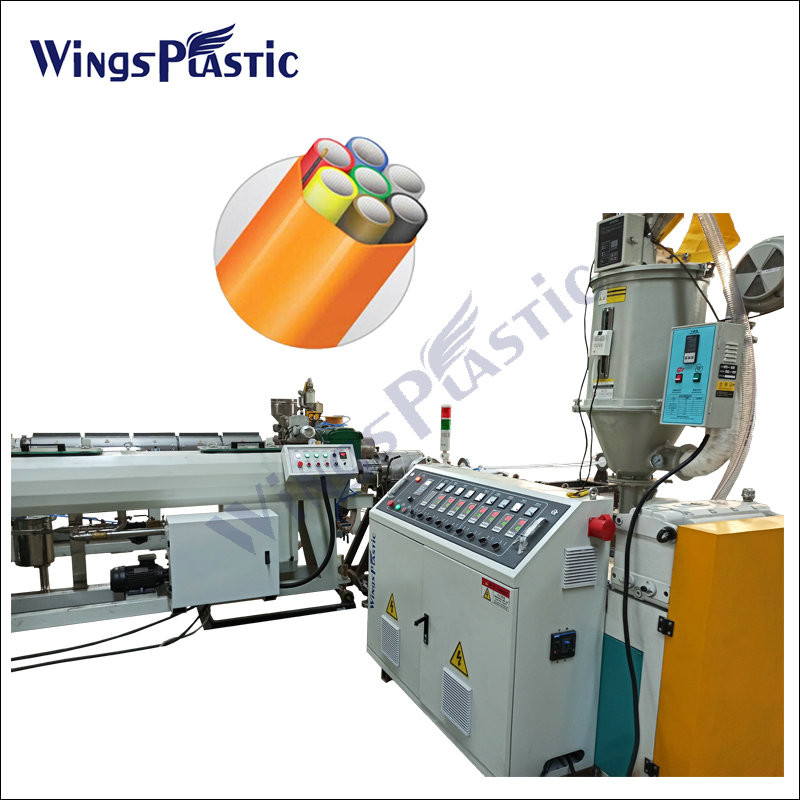

Cod Multi-Channel Cable Bundle Pipe Production Line / Cod Pipe Plant

Cod Multi-Channel Cable Bundle Pipe Production Line / Cod Pipe Plant

    • Cod Multi-Channel Cable Bundle Pipe Production Line / Cod Pipe Plant
    • Cod Multi-Channel Cable Bundle Pipe Production Line / Cod Pipe Plant
    • Cod Multi-Channel Cable Bundle Pipe Production Line / Cod Pipe Plant
    • Cod Multi-Channel Cable Bundle Pipe Production Line / Cod Pipe Plant
    • Cod Multi-Channel Cable Bundle Pipe Production Line / Cod Pipe Plant
    • Cod Multi-Channel Cable Bundle Pipe Production Line / Cod Pipe Plant
  • Cod Multi-Channel Cable Bundle Pipe Production Line / Cod Pipe Plant

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Product Other Name: HDPE Communication Pipe Production Line Max Production Speed: 6m/min
    Plastic Materials: PE Materials Pipe Name: HDPE Communication Pipe
    Extruder Type: 65/33 Single Screw Extruder Level: Qingdao,China
    Qulity: CE, ISO Condition: New
    Inverter: ABB

    COD Cable Cluster Pipe Making Machine , COD Multi-channel Cable Bundle Pipe Production Line / COD Pipe Plant

    In recent years our company developed and launched COD Cable Cluster Pipe Production Line to a new product with high yield, simple process, high automation, convenient operation, to fill the gaps, the leading domestic level.

    COD is a corrugated cable conduit Corrugated Optic Duct English abbreviation. This is summed up in the past a variety of fiber optic cable, cable ducts, based on the advantages and disadvantages to new ideas from the development of a new generation of high performance fiber optic catheter. It uses a very low coefficient of friction of modified HDPE as the main raw material, the structure of edge to a very low coefficient of friction for the child tube wall pipe to high pressure, easy to bend the bellows for the main pipe, the composite extrusion is made. It to high pressure, flexible, differentiated, easy construction as the main characteristics of the physical performance, service life, construction, and so has many other products can not match advantage.

    Product keyword : COD cable cluster pipe extrusion line , COD pipe making machine , COD cable cluster pipe manufacturing machine , fiber optic cable manufacturing

    COD Pipe Production Flow chart

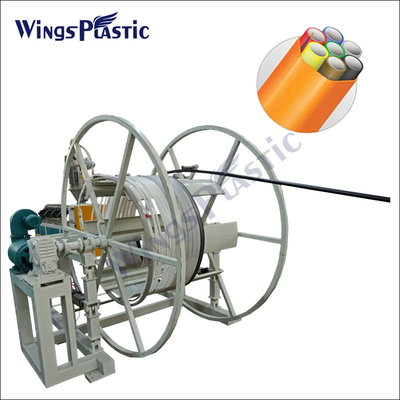

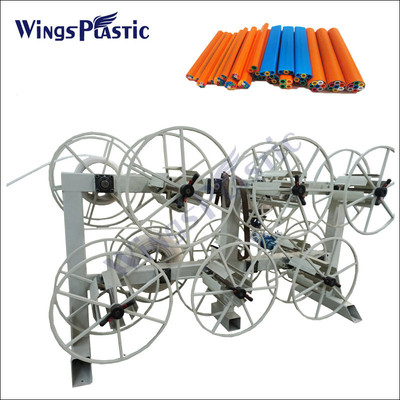

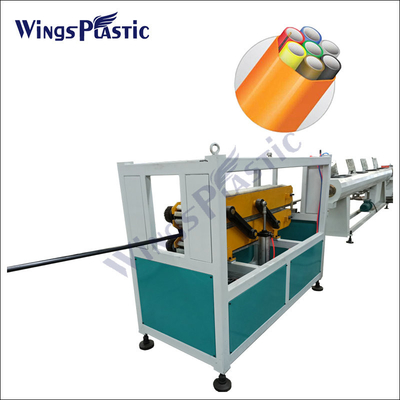

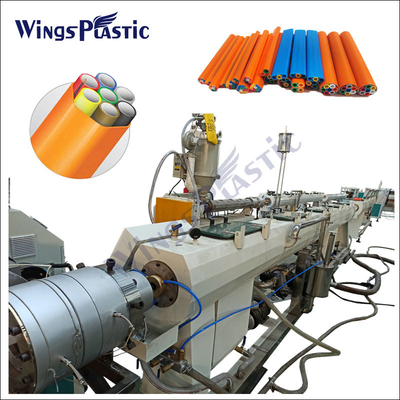

    Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→hual off→winder→finished product inspecting &packing

    The Main Parameters of the COD pipe machine (outlayer pipe):


    Model SJ-70(PE)
    L/D 30:1
    Pipe Diameter(mm) 50-200
    Output(kg/h) 150
    Production speed (m/min) 1.5
    Power (kw) 22


    The Main Parameters of the COD pipe machine (inner core pipe):


    Model SJ-65/33(PE) SJ-90/30(PE)
    L/D 33:1 30/1
    Pipe Diameter(mm) 16-32 32-63
    Output(kg/h) 150 200
    Production speed (m/min) 12-15 8-15
    Power (kw) 37 50


    The machinery electric parts details

      ITEM BRAND
    1 Motors Famous brand in China
    2 PLC (customeried) SIMENS 200 series
    3 Interface module(customeried) SIMENS
    4 Touch screen(customeried) SIMENS (10 inch)
    5 Low voltage electrical equipments SIMENS&SCHNEIDE
    6 Inverter ABB
    7 Temperature control system OMRON


    Cod Multi-Channel Cable Bundle Pipe Production Line / Cod Pipe PlantCod Multi-Channel Cable Bundle Pipe Production Line / Cod Pipe PlantCod Multi-Channel Cable Bundle Pipe Production Line / Cod Pipe Plant



    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
