Home ProductsHDPE Communication Pipe Extrusion Line

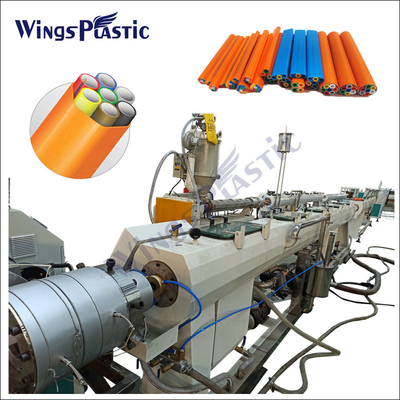

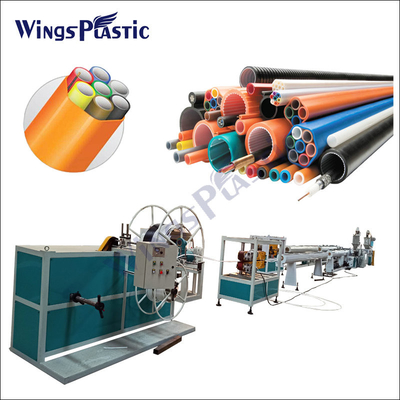

Cod Multi-Channel Cable Bundle Pipe Extrusion Line / Extruder Machine / Extrusion Equipment

Cod Multi-Channel Cable Bundle Pipe Extrusion Line / Extruder Machine / Extrusion Equipment

    • Cod Multi-Channel Cable Bundle Pipe Extrusion Line / Extruder Machine / Extrusion Equipment
    • Cod Multi-Channel Cable Bundle Pipe Extrusion Line / Extruder Machine / Extrusion Equipment
    • Cod Multi-Channel Cable Bundle Pipe Extrusion Line / Extruder Machine / Extrusion Equipment
    • Cod Multi-Channel Cable Bundle Pipe Extrusion Line / Extruder Machine / Extrusion Equipment
    • Cod Multi-Channel Cable Bundle Pipe Extrusion Line / Extruder Machine / Extrusion Equipment
    • Cod Multi-Channel Cable Bundle Pipe Extrusion Line / Extruder Machine / Extrusion Equipment
  • Cod Multi-Channel Cable Bundle Pipe Extrusion Line / Extruder Machine / Extrusion Equipment

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Product Other Name: HDPE Communication Pipe Production Line Max Production Speed: 6m/min
    Plastic Materials: PE Materials Pipe Name: HDPE Communication Pipe
    Extruder Type: 65/33 Single Screw Extruder Level: Qingdao,China
    Qulity: CE, ISO Condition: New
    Inverter: ABB

    COD Multi-channel cable bundle pipe production line

    COD cable bundle pipe production line (COD multi-channel cable bundle pipe equipment) is our company developed in recent years, and is the first to launch new productin China, the product with high output, simple process, high degree of automation, easy to operate. COD pipe that COD pipe production line

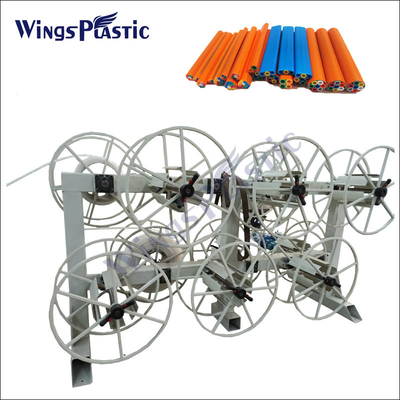

    manufactured, also know as multi-channel corrugated pipe, corrugated cable protection pipe, which is constituted by multiple cable pipes and outer pipe, COD pipe by the production process, put the inner pipes(3-7) which has produced into outer pipe, this approach created a new era in this field. Inner and outer pipes are made HDPE (high density polyethylene), with high degree of elasticity, although there are many inner piper in the outer pipe, still can intertwine well on winding frame. This is summed up the pros and cons of various of cables in the past, and produce a new generation of high-performance cables pipe. It uses a very low coefficient of friction-HDPE as the main raw material.

    Features:
    COD products are special spiral shape, it enhances the compression strength of the traditional PE straight pipe, the compression strength is several times than the traditional pipe, improve the effectiveness and flexibility, the occurrence of an earthquake, collapse, etc., but also to ensure safety. Because COD pipe (1000 meters per) coiled on the stacker, it is possible to reduce the considerable amount of labor costs, the most important thing is, COD does not require the insertion of the inner pipes, the inner tube has been varied since the equipment inside the outer pipe. Because thread processing, COD can bend freely, bending force can reach 90 degrees, and even larger angle, does not require any special tools to bend or straighten. At the construction site can bypass an obstacle. Since the inner tube of the one-line design and good low coefficient of friction, there is no connection, the problem of non-kinking wire particularly convenient, but also extend the distance between holes. The tube is completely airtight, resistant to high internal pressure, you can use the cable gas Rafah. In the case of the same outer diameter of the tube can be much more inner tube, increased use efficiency.

    COD Pipe Production Flow chart

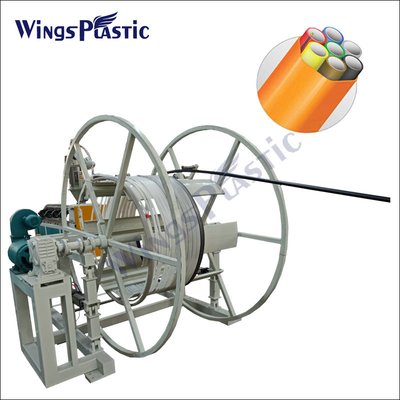

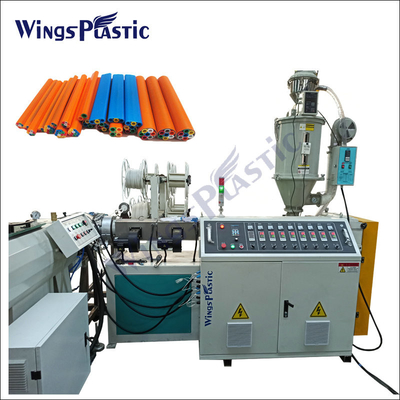

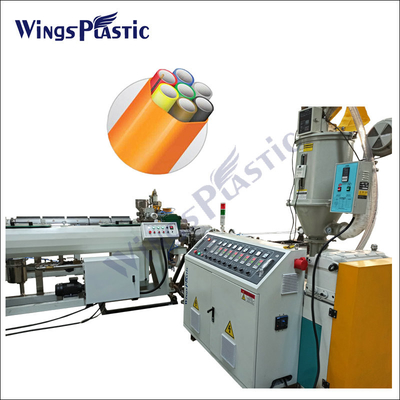

    Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→hual off→winder→finished product inspecting &packing

    The Main Parameters of the COD pipe machine (outlayer pipe):


    Model SJ-70(PE)
    L/D 30:1
    Pipe Diameter(mm) 50-200
    Output(kg/h) 150
    Production speed (m/min) 1.5
    Power (kw) 22


    The Main Parameters of the COD pipe machine (inner core pipe):


    Model SJ-65/33(PE) SJ-90/30(PE)
    L/D 33:1 30/1
    Pipe Diameter(mm) 16-32 32-63
    Output(kg/h) 150 200
    Production speed (m/min) 12-15 8-15
    Power (kw) 37 50


    The machinery electric parts details

      ITEM BRAND
    1 Motors Famous brand in China
    2 PLC (customeried) SIMENS 200 series
    3 Interface module(customeried) SIMENS
    4 Touch screen(customeried) SIMENS (10 inch)
    5 Low voltage electrical equipments SIMENS&SCHNEIDE
    6 Inverter ABB
    7 Temperature control system OMRON


    Cod Multi-Channel Cable Bundle Pipe Extrusion Line / Extruder Machine / Extrusion EquipmentCod Multi-Channel Cable Bundle Pipe Extrusion Line / Extruder Machine / Extrusion EquipmentCod Multi-Channel Cable Bundle Pipe Extrusion Line / Extruder Machine / Extrusion Equipment



    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
