PVC Water Ppipe Making Machine / Extruder Machine / Production Line

PVC Water Ppipe Making Machine / Extruder Machine / Production Line

    • PVC Water Ppipe Making Machine / Extruder Machine / Production Line
    • PVC Water Ppipe Making Machine / Extruder Machine / Production Line
    • PVC Water Ppipe Making Machine / Extruder Machine / Production Line
    • PVC Water Ppipe Making Machine / Extruder Machine / Production Line
    • PVC Water Ppipe Making Machine / Extruder Machine / Production Line
    • PVC Water Ppipe Making Machine / Extruder Machine / Production Line
  • PVC Water Ppipe Making Machine / Extruder Machine / Production Line

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Plastic Processed: PVC Application: Pipe
    Screw Design: Double-screw Product Other Name: PVC Pipe Machine , Conduit Pipe Extruder
    Max Production Speed: 3-4m/min Plastic Materials: PVC Powder+ CaCO3 Powder
    Pipe Name: Conduit Pipe Or Threading Pipe Extruder Type: Twin Screw Extruder
    Origin: Qingdao China Level: Germany
    Machinery Color: Blue, Yellow ,White

    PVC water pipe making machine / extruder machine / production line

    Complete extruder and extrusion lines for production of PVC pipes in diameter from 16 to 630mm.We also design and manufacture machines for production of CPVC pipe and PVC foam core pipe.

    Application:
    To produce variety of PVC pipe for water supply, drainage, cable protection ,etc

    Feature:

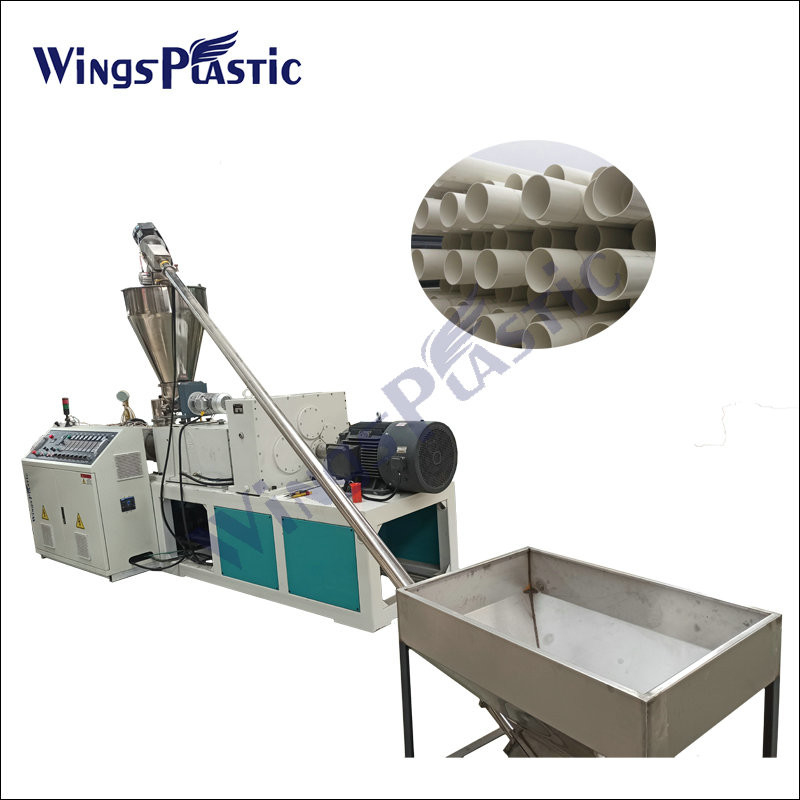

    1,SJSZ Conical twin screw extruder: using the high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

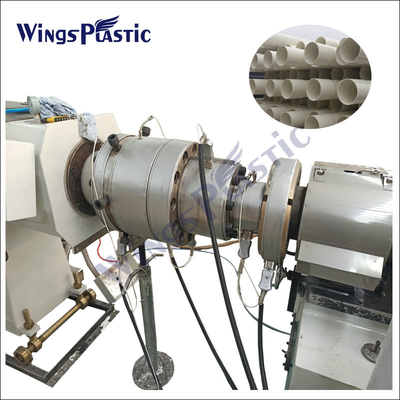

    2,Mould: spiral type die head can not only ensure high speed extrusion, but also avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

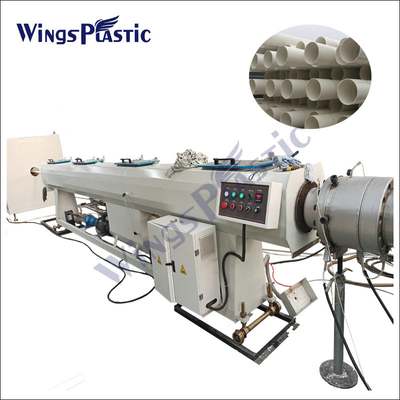

    3,Spraying and cooling tanks: Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

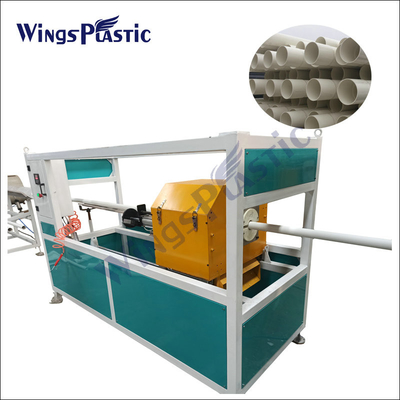

    4,Haul off machine: adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

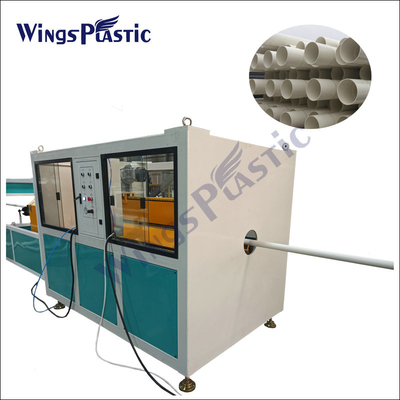

    5,Cutting machine:precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

    6,Pipe belling machine: automatic pipe belling machine comes with 2 heating ovens to ensure pipe belling quality and productivity.

    PVC pipe machine Line list

    Pipe Range 16-40mm
    (double)
    20-110mm 50-250mm 160-400mm 315-630mm
    Extruder SJZ65/132
    Or
    SJZ51/105
    SJZ65/132 SJZ65/132
    Or
    SJZ80/156
    SJZ80/156 SJZ92/188
    Motor(KW) 37KW
    or
    18.5KW
    37KW 37KW
    Or
    55KW
    55KW 110KW
    Capacity(KG/H) 80-180 150-250 150-350 200-360 400-600
    Lineal speed(M/min) 1-15 1-12 0.3-6 0.2-2 0.1-1

    PVC Water Ppipe Making Machine / Extruder Machine / Production LinePVC Water Ppipe Making Machine / Extruder Machine / Production LinePVC Water Ppipe Making Machine / Extruder Machine / Production Line


    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
