Conical Twin Screw Extruder Machine / PVC Water Supply Pipe Making Machine

Conical Twin Screw Extruder Machine / PVC Water Supply Pipe Making Machine

    • Conical Twin Screw Extruder Machine / PVC Water Supply Pipe Making Machine
    • Conical Twin Screw Extruder Machine / PVC Water Supply Pipe Making Machine
    • Conical Twin Screw Extruder Machine / PVC Water Supply Pipe Making Machine
    • Conical Twin Screw Extruder Machine / PVC Water Supply Pipe Making Machine
    • Conical Twin Screw Extruder Machine / PVC Water Supply Pipe Making Machine
    • Conical Twin Screw Extruder Machine / PVC Water Supply Pipe Making Machine
  • Conical Twin Screw Extruder Machine / PVC Water Supply Pipe Making Machine

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Plastic Processed: PVC Application: Pipe
    Screw Design: Double-screw Product Other Name: PVC Pipe Machine , Conduit Pipe Extruder
    Max Production Speed: 3-4m/min Plastic Materials: PVC Powder+ CaCO3 Powder
    Pipe Name: Conduit Pipe Or Threading Pipe Extruder Type: Twin Screw Extruder
    Origin: Qingdao China Level: Germany
    Machinery Color: Blue, Yellow ,White

    Conical Twin Screw Extruder Machine / Pvc Water Supply Pipe Making Machine

    PVC Pipe Extruding Machine
    PVC pipe making machine / PVC pipe extrusion production line is mainly used in the manufacture of the UPVC and PVC pipes with various pipe diameter and wall thickness, such as the agricultural and constructional plumbing, water supply and water drainage, electric conduit pipe etc.

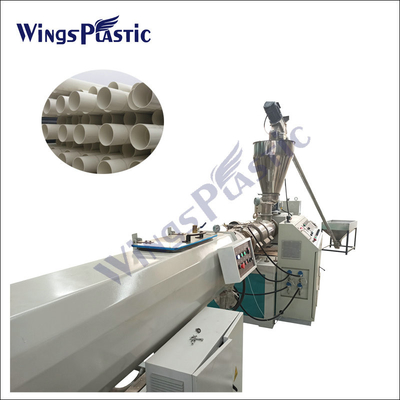

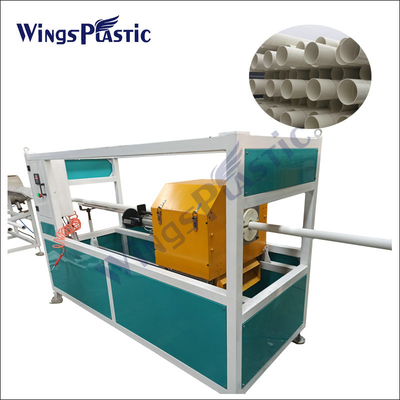

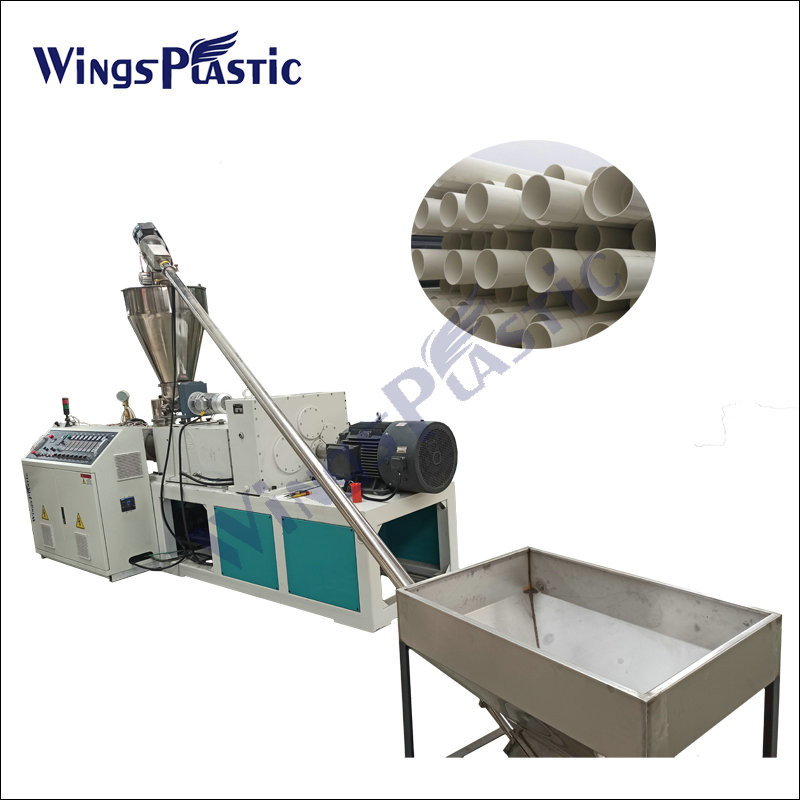

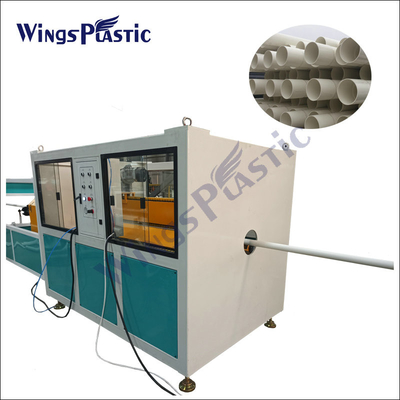

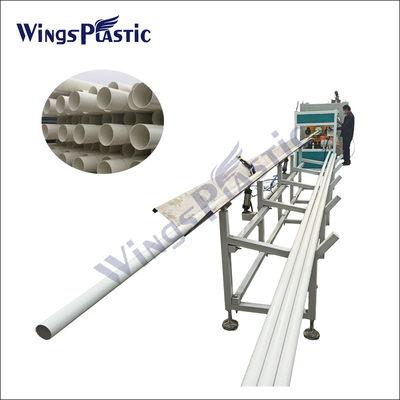

    This line is composed of conical twin-screw extruder, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder is equipped with Siemens beide brand motor and ABB brand inverter, The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models for different diameter pipes, such as two-claw, three-claw, four-claw, six-claw etc. For the cutter, you can choose lift cutting blade type and no-dust cutting type.Our PVC pipe extrusion production line is of reliable performance and high production efficiency.

    Process flow:
    PVC powder + additive → mixing
    Spring feeder → twin screw extruder → mould → vacuum calibration machine → haul off machine → cutting machine → stacker

    Our extrusion line can produce the PVC pipe with diameter from 16mm to 630mm

    PVC pipe machine Line list

    Pipe Range 16-40mm
    (double)
    20-110mm 50-250mm 160-400mm 315-630mm
    Extruder SJZ65/132
    Or
    SJZ51/105
    SJZ65/132 SJZ65/132
    Or
    SJZ80/156
    SJZ80/156 SJZ92/188
    Motor(KW) 37KW
    or
    18.5KW
    37KW 37KW
    Or
    55KW
    55KW 110KW
    Capacity(KG/H) 80-180 150-250 150-350 200-360 400-600
    Lineal speed(M/min) 1-15 1-12 0.3-6 0.2-2 0.1-1

    Conical Twin Screw Extruder Machine / PVC Water Supply Pipe Making MachineConical Twin Screw Extruder Machine / PVC Water Supply Pipe Making MachineConical Twin Screw Extruder Machine / PVC Water Supply Pipe Making Machine


    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
