Product Details:
|
| Plastic Processed: | PP | Application: | Pipe |
|---|---|---|---|
| Screw Design: | Single-screw | Product Other Name: | PPR Pipe Extruding Machine |
| Max Production Speed: | 6m/min | Plastic Materials: | PPR Or PE Granules |
| Pipe Name: | PPR Pipe Or PE Pipe | Extruder Type: | Single Screw Extruder |
| Level: | Qingdao,China | Qulity: | CE, ISO |

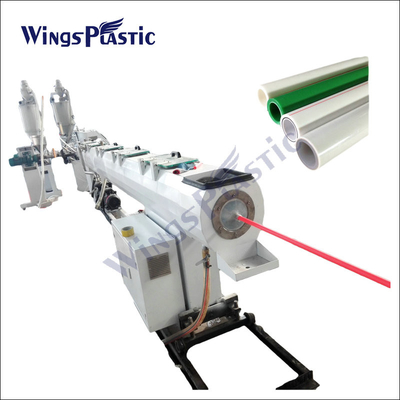

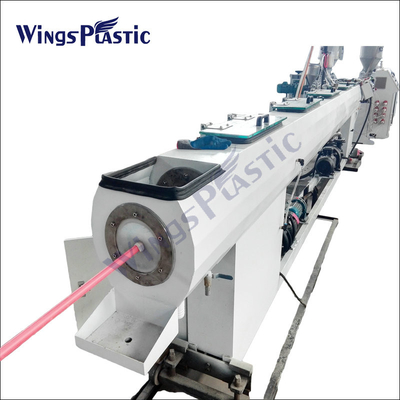

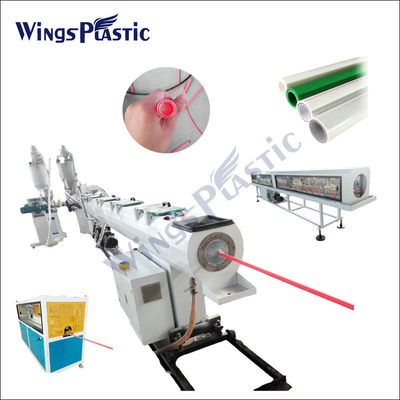

High quality ppr pipe making machine, plastic ppr pipe production line
Our machinery advantages:
1. good service
2. good extrusion ability
3. good product application
4. power saving
5. easy operation
PPR pipe application:
1, pure water, drinking water pipeline;
2, industrial water and chemical transport, emissions;
3, domestic hot and cold water pipe system;
4, beverage, drug delivery systems of production;
5, compressed air pipe;
6, other industrial, agricultural management
Consist For Full Production Line:

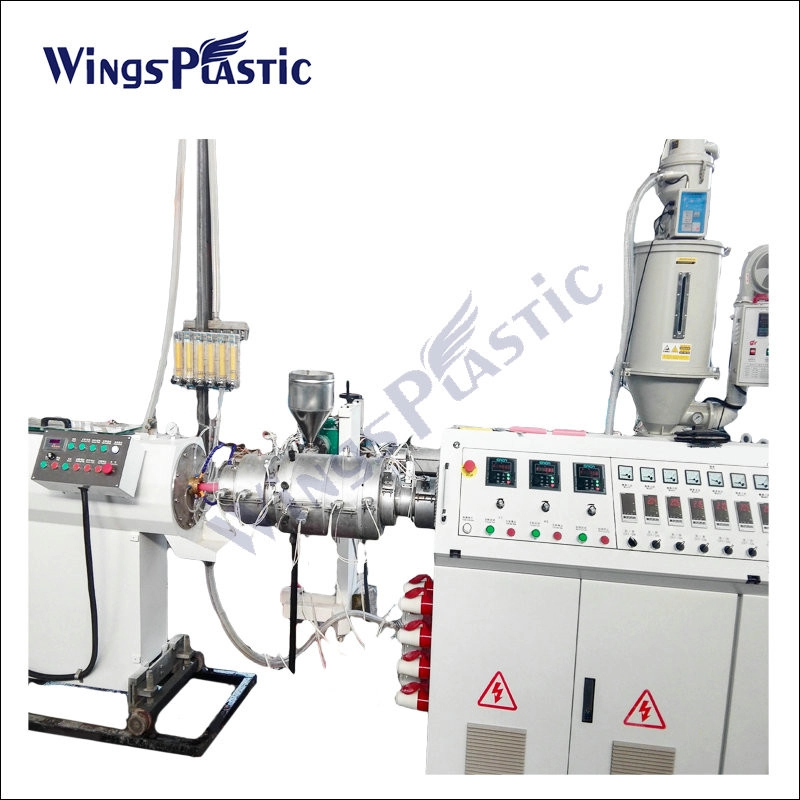

A.Single screw extruder

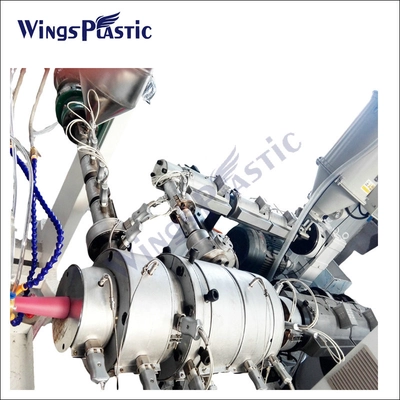

B.PPR / PE / PP pipe extrusion mould
C.Vacuum shaping platform
D.Haul off machine

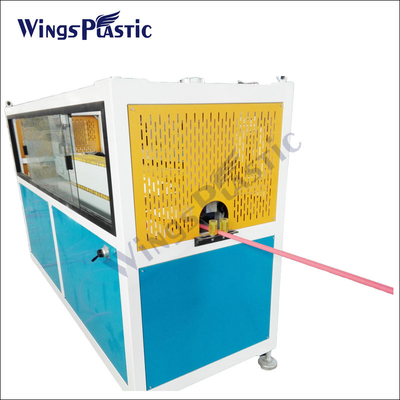

E.Cutting machine
F.Stacker
|
Model |
PP-R-32 |
PP-R-110 |
|
Specifications of extruder |
SJ65/30 |
SJ90/30 |
|
Pipe Type(mm) |
φ16- φ 63 |
φ 75- φ 110 |
|
Production line speed(m/min) |
≥ 10 |
≥ 5 |
|
Air pressure(≥ 0.6MPa)(m3/min) |
0.3 |
0.5 |
|
Cooling water flow rate(m3/h) |
2 |
8 |
|
Total power(kw) |
55 |
120 |
|
Dimension(mm) |
20000*4000*1700 |
30000*5000*1750 |
|
Weight(kg) |
3500 |
4500 |
Q&A
*Q: What’s the price of this machine please?
*A: Dear customer, for each kind of our machines, we have lots of models.
Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.
*Q: What is your advantage in this line?
*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
Company Profile:
Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.
We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
