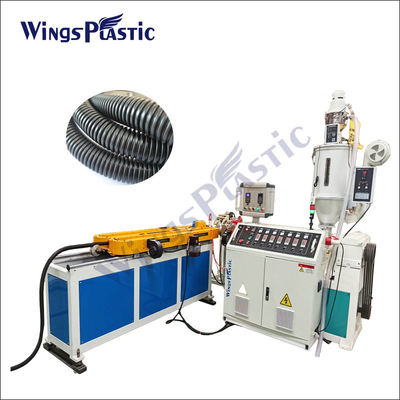

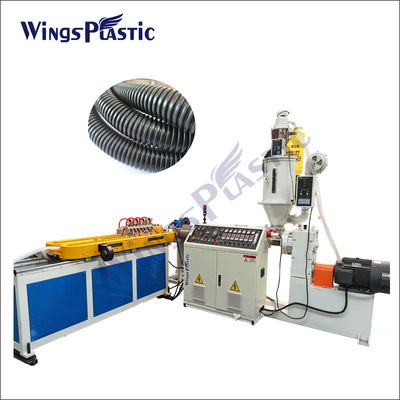

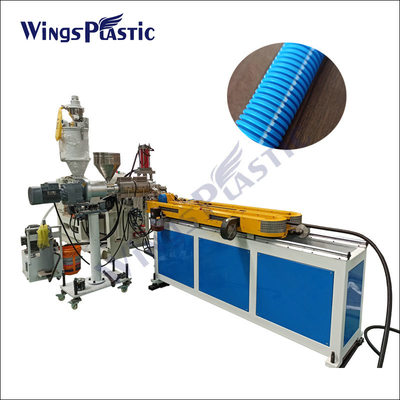

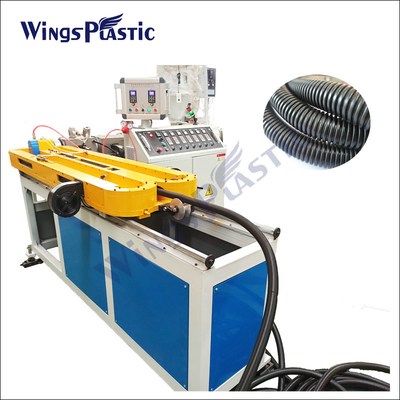

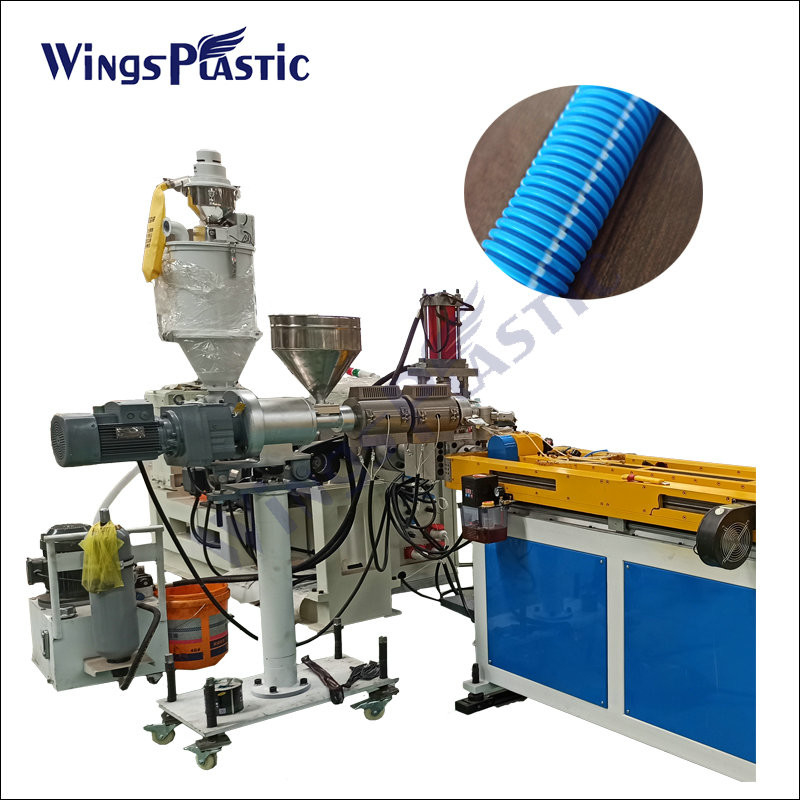

Single Wall Flexible Plastic Corrugated Conduit Making Machine

Single Wall Flexible Plastic Corrugated Conduit Making Machine
Single Wall Flexible Plastic Corrugated Conduit Making Machine Single Wall Flexible Plastic Corrugated Conduit Making Machine Single Wall Flexible Plastic Corrugated Conduit Making Machine Single Wall Flexible Plastic Corrugated Conduit Making Machine Single Wall Flexible Plastic Corrugated Conduit Making Machine Single Wall Flexible Plastic Corrugated Conduit Making Machine

Large Image :  Single Wall Flexible Plastic Corrugated Conduit Making Machine

Product Details:
Place of Origin: Qingdao, China
Brand Name: WINGS
Certification: CE,ISO
Model Number: 10mm-32mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Email negotiate
Packaging Details: Wooden box and film
Delivery Time: 30 workdays
Payment Terms: T/T 30% for prepayment and 70% after machinery testing
Supply Ability: 100 sets every year

Single Wall Flexible Plastic Corrugated Conduit Making Machine

Description
Product Other Name: Single Wall Corrugated Pipe Extruder Extrusion Speed: 10m/min
Level: Germany Quality: ISO, CE
Plastic Materials: PE, PVC ,PP ,PA Pipe Name: Corrugated Pipe
Origin: China, Qingdao

Single Wall Flexible Plastic Corrugated Conduit Making Machine



The equipment areas of application:
Widely used in the production of PE/PVC/PA single-wall corrugated pipe.
Performance characteristics:
Unit 1. According to different processing materials, choose a different type of extruder.
2. The special design of single wall corrugated pipe head, wide range of application, simple shape, uniform wall.
3. Corrugated pipe forming machine optimization design, high speed, corrugated pipe forming stable.
4. Designed for corrugated pipe cutting machine, high cutting precision, no damage wave.

   Single Wall Flexible Plastic Corrugated Conduit Making Machine is a new-generation product developed by the company, which gathers the advantage of the international advanced types into one body.

   The corrugated pipe forms fast and has the uniform shapes,consistent seams  and smooth inner & outer wall by gear driving modules and fan cooling. It continuously extrudes various standards of PVC, PP PA and HDPE single wall thermoplastic corrugated pipes.

Single Wall Flexible Plastic Corrugated Conduit Making Machine

1) It can be used to produce single-wall  corrugated pipe.

 2) Characteristic : It has features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. it developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used as wires of the up-market cars.

Single Wall Flexible Plastic Corrugated Conduit Making Machine Informations

Extruder SJ 30/25 SJ 45/33 SJ 65/30 SJ 65/33
Main motor power 5.5kw 11-18.5kw 30-45kw 55kw
Molding 52pairs 45-72pairs 50-72pairs 55pairs
Pipe diameter 4-17mm 10-35mm 40-110mm 72-200mm
Speed 5-15m/min 15-20m/min 10-20m/min 3-15m/min
Output 15kg/h 60-100kg/h 100-150kg/h 100-180kg/h







Q&A

*Q: What’s the price of this machine please?

*A: Dear customer, for each kind of our machines, we have lots of models.

Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

*Q: What is your advantage in this line?

*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

Company Profile:

Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
