Product Details:
|
| Product Other Name: | HDPE Communication Pipe Production Line | Max Production Speed: | 6m/min |
|---|---|---|---|
| Plastic Materials: | PE Materials | Pipe Name: | HDPE Communication Pipe |
| Extruder Type: | 65/33 Single Screw Extruder | Level: | Qingdao,China |
| Qulity: | CE, ISO | Condition: | New |
| Inverter: | ABB |

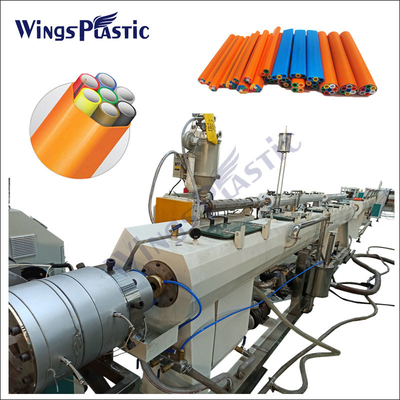

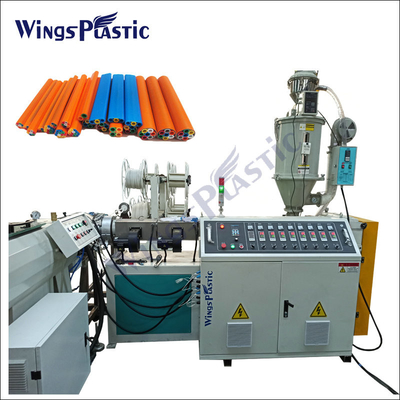

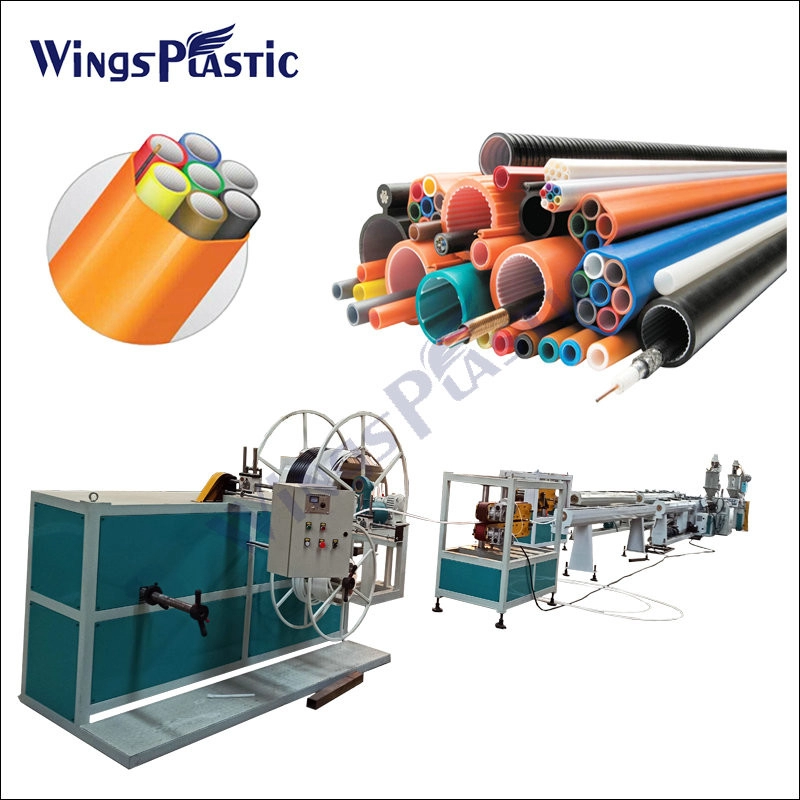

COD Pipe Making Machine / Plastic COD Pipe Extrusion Line / Plastic Pipe Extruder
Qingdao Wings Plasitc Technology Co.,Ltd independently develops the COD Pipe line in recent years, we are the first one to launch of new products in China. This line had show advantages of high yield, simple process, high automation, easy operation etc and leading China high level, Hold features of high output, easy construction, High automaticity , ease of operation etc.
COD(Corrugated Optic Duct) is composed of inner pipes, outer helix corrugated pipe as integrated. All inner pipes and outer pipes are made of HDPE materials, with high elasticity and better flexibility. Widely used in optical cable and cable protection pipe. It uses a very low coefficient of friction of modified HDPE as the main raw material, the structure to a very low coefficient of friction ridge wall pipe for the child controls to high pressure, easy to bend the corrugated pipe for the mother tube, formed by the extruder.
Compressive COD product is special spiral shape of traditional PE, it enhances the straight and the compressive capacity, its compressive ability is traditional pipe several times and improve the effectiveness and elasticity, earthquakes, subsidence, also can assure safety. Resistance to chemicals, durability strong acid, alkali skills and water resistance is more superior in the sea and wetland laid, can be corrosion resistance, is half permanent pipeline
1. It uses a very low coefficient of friction of modified HDPE as the main raw material
2. the structure to a very low coefficient of friction ridge wall pipe for the child controls to high pressure
3. easy to bend the corrugated pipe for the mother tube, formed by the extruder
4. Bears the high pressure, but is curving
Flow chart

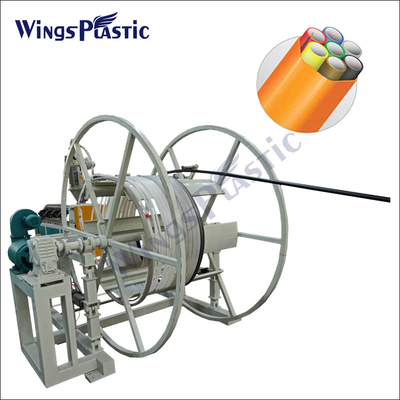

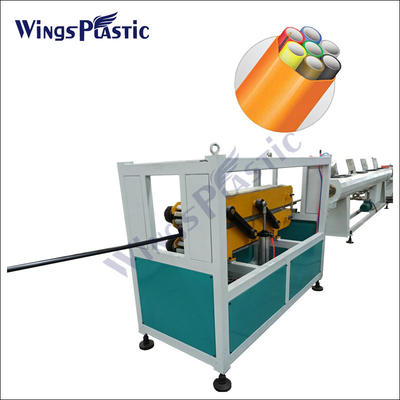

Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→hual off→winder→finished product inspecting &packing
The Main Parameters of the COD pipe machine (outlayer pipe):
| Model | SJ-70(PE) |
| L/D | 30:1 |
| Pipe Diameter(mm) | 50-200 |
| Output(kg/h) | 150 |
| Production speed (m/min) | 1.5 |
| Power (kw) | 22 |
The Main Parameters of the COD pipe machine (inner core pipe):
| Model | SJ-65/33(PE) | SJ-90/30(PE) |
| L/D | 33:1 | 30/1 |
| Pipe Diameter(mm) | 16-32 | 32-63 |
| Output(kg/h) | 150 | 200 |
| Production speed (m/min) | 12-15 | 8-15 |
| Power (kw) | 37 | 50 |
The machinery electric parts details
| ITEM | BRAND | |
| 1 | Motors | Famous brand in China |
| 2 | PLC (customeried) | SIMENS 200 series |
| 3 | Interface module(customeried) | SIMENS |
| 4 | Touch screen(customeried) | SIMENS (10 inch) |
| 5 | Low voltage electrical equipments | SIMENS&SCHNEIDE |
| 6 | Inverter | ABB |
| 7 | Temperature control system | OMRON |
Q&A
*Q: What’s the price of this machine please?
*A: Dear customer, for each kind of our machines, we have lots of models.
Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.
*Q: What is your advantage in this line?
*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
Company Profile:
Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.
We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
