Product Details:
|
| Plastic Processed: | PP | Application: | Plastic Basin Wash Drainage Pipe |
|---|---|---|---|
| Screw Design: | Single-screw | Product Other Name: | Corrugated Wash Basin Drainage Pipe Extrusion Line |
| Max Production Speed: | 8m/min | Plastic Materials: | PP Granule |
| Condition: | New | Inverter: | ABB |

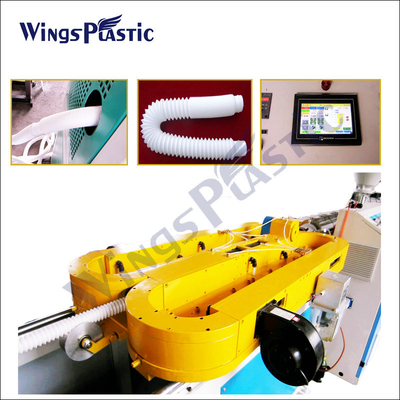

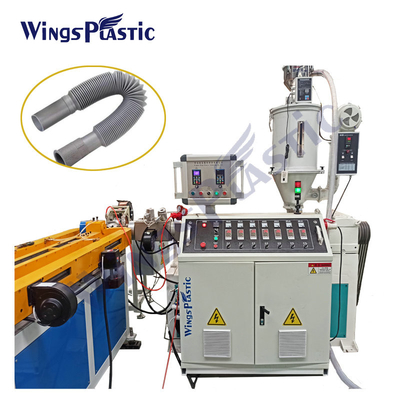

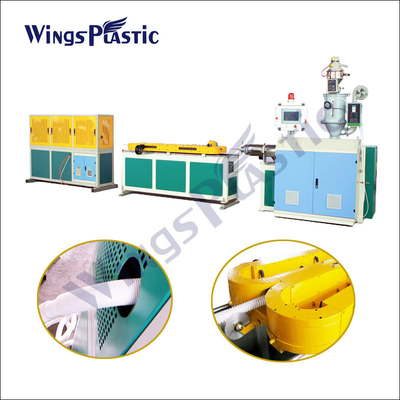

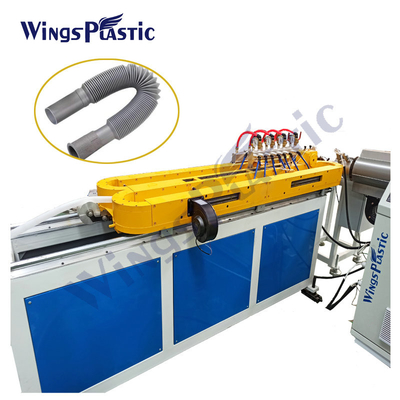

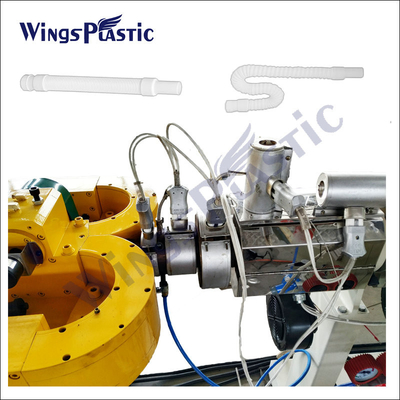

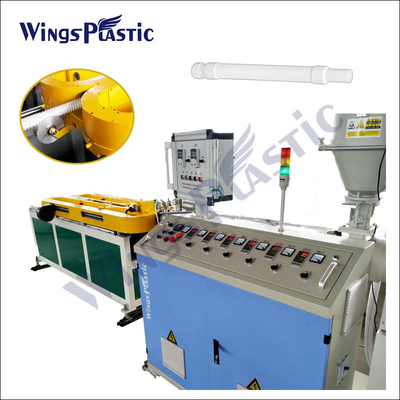

PP Flexible and Expansible Drainage Corrugated Pipe Extruder Machine / Making Machine
The PP Flexible Hose With Steel Wire Reinforce Introduction:
1.Material:PP
2.Features:steel wire inside,light weight,good extension and flexibility.
3.Application:used in kitchen room ,air conditioner,ventilation system,drainage system, sanitaryware,bath heater and portable air conditioner etc.
4.Certificate:SGS,ROHS,ISO9001:2008
Technical parameters of basin drainage siphon hose extrusion line production machine:
| Model | Screw diameter (mm) |
L/D | Pipe range (mm) |
Capacity (kg/h) | Main motor Power (km) | Total power (kw) | Line length (m) |
| WS-PP45 | 45 | 33:1 | 12-50 | 50 | 22 | 50 | 12 |
| WS-PP65 | 65 | 33:1 | 32-75 | 100 | 37 | 80 | 16 |
Process Flow of basin drainage siphon hose extrusion line production machine:
Raw material+master batches→mixing → vacuum feeding → material dryness → single screw extruder → extrusion mould → corrugated forming machine → automatic shorting machine → automatic cutting system → finished product inspecting&packing
The machinery electric parts details
| ITEM | BRAND | |
| 1 | Motors | Famous brand in China |
| 2 | PLC (customeried) | SIMENS 200 series |
| 3 | Interface module (customeried) | SIMENS |
| 4 | Touch screen (customeried) | SIMENS (10 inch) |
| 5 | Low voltage electrical equipments | SIMENS&SCHNEIDE |
| 6 | Inverter | ABB |
| 7 | Temperature control system | OMRON |
Q&A
*Q: What’s the price of this machine please?
*A: Dear customer, for each kind of our machines, we have lots of models.
Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.
*Q: What is your advantage in this line?
*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
Company Profile:
Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.
We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
