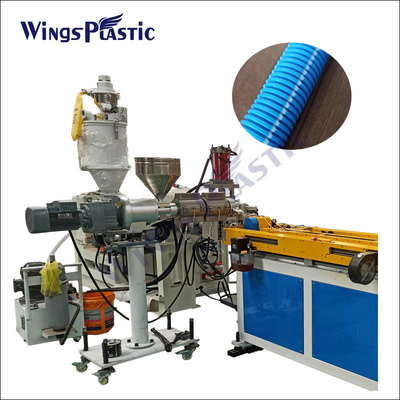

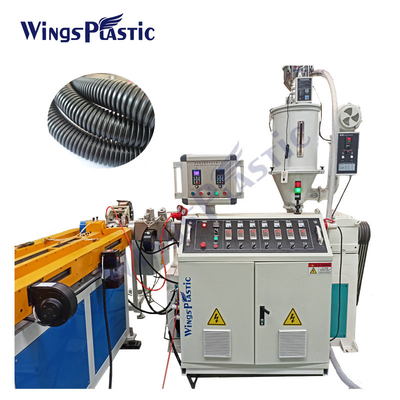

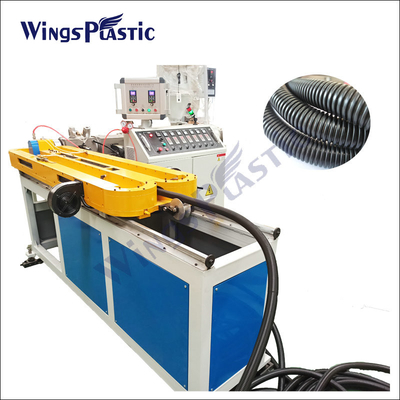

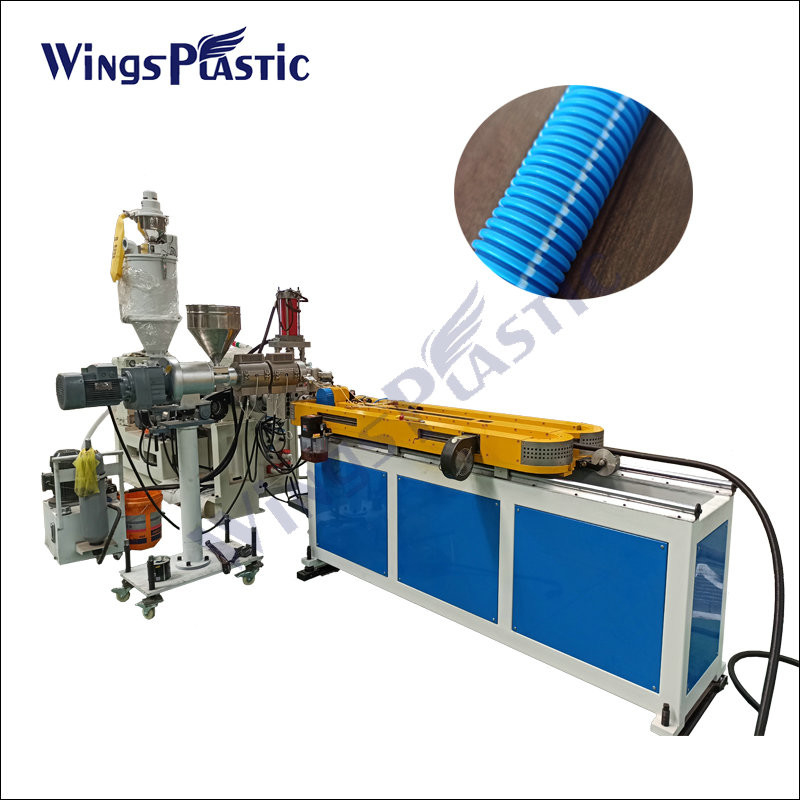

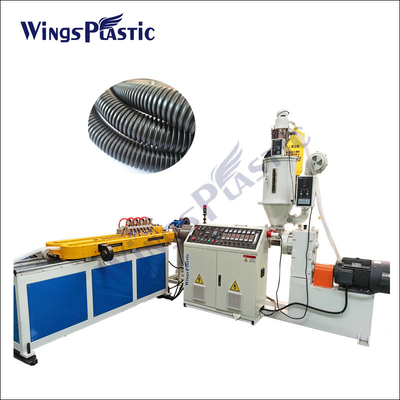

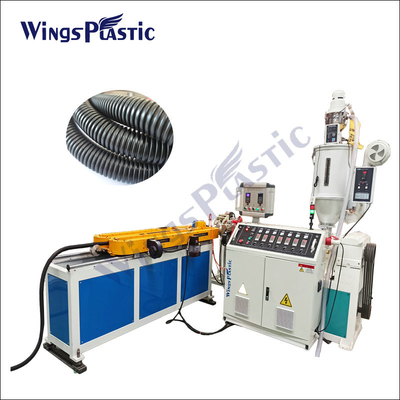

Plastic Single Wall Corrugated Pipe Extrusion Line / Machine

    Plastic Single Wall Corrugated Pipe Extrusion Line / Machine

Plastic single-layer bellows manufacturing machine/soft threading corrugated pipe extrusion machine
Single wall corrugated pipe production process:
Automatic feeder to single screw extruder, abrasive and corrugated forming machine to open knife (optional), double location winding machine.
Single wall corrugated pipe's brief introduction:
1.Material: PE, PA, PP, PVC
2.Diameter: 3 mm to 160 mm
3.Length: 30 m (can be adjusted according to the requirement, also can be installed quickly cutting machine, a few centimeters a)
4.Structure: inside and outside the wavy
5.Color: black, yellow, white.Other color can be customized.
6.Properties: good flexibility, smooth and bright surface, resistance to chemical corrosion
7.Scope of application: it can be used in mechanical, electrical equipment, mechanical line, automatic instrument and meter, protect the cable from wear and insulating sheath cable wire.
Specializing in the production of plastic corrugated pipe production line, speed, forming good, quality pass!We don't do a one-time deal, welcomed the factory inspection!

     Introduction of PE / PP & PVC Single Wall Corrugated Pipe Production Line

     It consists of automatic feeding system / single screw extruder / die head / forming machine / winder. It is mainly produce PE / PP / PVC single corrugated pipe. The PE / PP / PVC single corrugated pipe is mainly used in the golf course, playgrounds as light load of drainage, floods; Interior decoration cable casing; Automotive wire casing; The washing machine, air conditioner drain; Prestressed concrete special pipe, etc.

    PE / PP / PVC Single Wall Corrugated Pipe Extrusion Line shall be used to produce small diameter single wall corrugation pipe in PVC.

    Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe, dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.

Characteristics and advantages:

    1. Special structure design of screw and dies and convenience in changing mould blocks solve the problem of easy-worn of screw and barral ,as well as the difficulty in forming of plastic resin .

    2. Corrugator adopts closed water cooling structure ,closed forming blocks chain ,and special design of rail, which will make all blocks matching correctly ,running stablely . You even couldn’t see the connecting line on the surface of pipe . Cooling water is cycling inside the corrugator ,it will make the cooling speed fast, so the production speed of pipe will be raised highly .

    Meanwhile ,the corrugator adopts building blocks design , we can use same basis structure but different forming length of corrugator . The longer forming length of corrugator , the more output of pipe . We can make different forming length corrugator according to different cusotmers’ needs.

Process flow:

   Raw material + master batches → mixing → vacuum feeding → material dryness → single screw extruder → extrusion mould → corrugation forming machine → meter measurer→ double winder → finished product inspecting & packing

   This plastic corrugated pipe line equips with high quality machines in the whole line, with good equipments, the plastic corrugated pipe line can produce pipes stable and fast. Also all these machines share a ling service life which reduces buyer's cost.
