Product Details:
|
Plastic Processed: | PE | Application: | Pipe |
---|---|---|---|
Screw Design: | Single Screw | Product Other Name: | PE Pipe Machine , PP Pipe Extruder |
Max Production Speed: | 3-4m/min | Plastic Materials: | PE PP Granules |
Pipe Name: | PE PP Hose Protector | Extruder Type: | Single Screw Extruder |
Origin: | Qingdao China | Level: | Germany |
Machinery Color: | Blue, Yellow ,White |

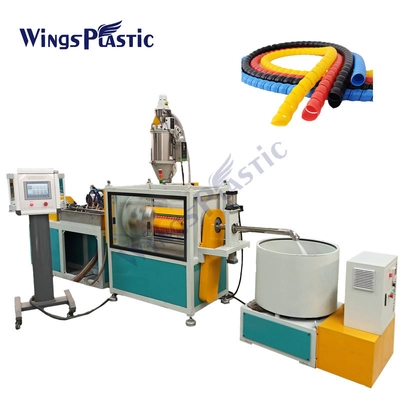

PE PP Hose Protector Making Machine / Spiral Sheath Tube Production Line
Machine Production specification:
1. Electricity: 380v/3P/50Hz
2. Material: HDPE
3. Standard: Φ12-Φ140
4. Linear speed: 1-3m/min
5. Extruder center hight: 1000mm
6. Operating Direction: From left to right
Spiral Sheath Tube Equipment List
No. | Item | QTY |
1 | Extruder | 1 |
2 | Cooling water tank | 1 |
3 | Tractor / hual off | 1 |
4 | Meter and cutting off device | 1 |
5 | Winder ( customized ) | 1 |
6 | Stacker ( customized ) | 1 |
Hose Protector Technical Data:
1. Exterior surface: Smoothly, No starving crack scuff and burr, No patency foaming and uneven, No inclusion.
2. Surface color: Black, Red, Yellow, Blue.
3. Temperature resistance: The sample cannot be cracked and deformation when put it in heat-box at 80 celsius.
4. Tensile Strength: 25MPa at normal temperature, 30MPa at -40 celsius.
5. Impact Strength: 35KJ/sqm at normal temperature, 5KJ/sqm at -40 celsius.
6. Impact Strength: Not breakage.
7. Rockwell temperature(R): 75.
The Hose Protector / Sprial Wrapping Bands Extrusion Line Informations:
Product Name | Best sales PP/PE plastic spiral wrapping band extrusion line |
Material | pp,pe granules |
Color | the products colors can as customer's request, yellow,red, black, white,blue |
Standard | CE certification |
extruder | sj-45/28 single screw extruder |
the products size | as customer's request, 16.20.25.32.40.50.63mm |
the line speed | 1-5m/min |
mould | rotating forming mould |
Q&A
*Q: What’s the price of this machine please?
*A: Dear customer, for each kind of our machines, we have lots of models.
Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.
*Q: What is your advantage in this line?
*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
Company Profile:
Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.
We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
