|Screw Design:||Double-screw||Product Other Name:||PVC Pipe Machine , Conduit Pipe Extruder|
|Max Production Speed:||3-4m/min||Plastic Materials:||PVC Powder+ CaCO3 Powder|
|Pipe Name:||Conduit Pipe Or Threading Pipe||Extruder Type:||Twin Screw Extruder|
|Machinery Color:||Blue, Yellow ,White|
Double - PVC Conduit Pipe Manufacturing Machine / Extrusion Line
This machine group consists mainly of twin conical (parallel) screw extruder, vacuum calibration tank, haul-off, cutter, tilter...etc. The screw extruder and haul-off unit have applied imported A/C inverter, the barrel and screw are under hard chrome plated an bimetallic treatment, effectively reduce the abrasion caused by the CaCo3 and other additives. Both vacuum pump and driving motor have applied excellent products.
The haul-off machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type...etc. Sawing cutting machine or planet cutting machine can be applied, it is additionally equipped with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high, with special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer foam pipe...etc. Change the extruder, the line can also produce PP, PE, ABS, PP-R, PEX silicon core pipe and pipe of other material. The planetary cutting machine is fully automatic computer digital control; it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.
We can supply the online full automatic belling machine according to customer’s requirement.
Double - PVC Conduit Pipe Manufacturing Machine / Extrusion Line Machinery List:
|1||SJ51/105 Extruder or SJ65/132 Extruder||1set||150kg/h-300kg/h|
|2||Die head||1set||Max diameter could be 50mm or 110mm|
|3||Vacuum Cooling Tank||1set||4m length|

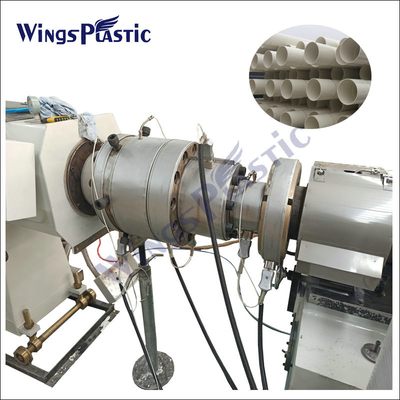

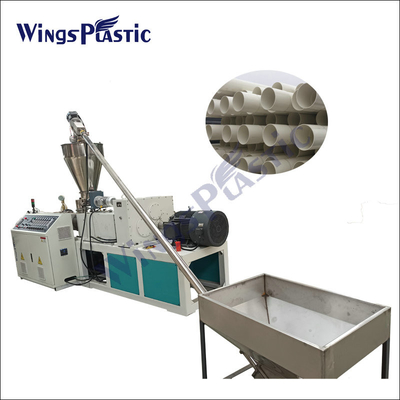

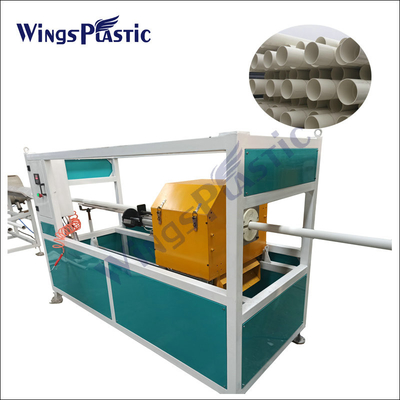

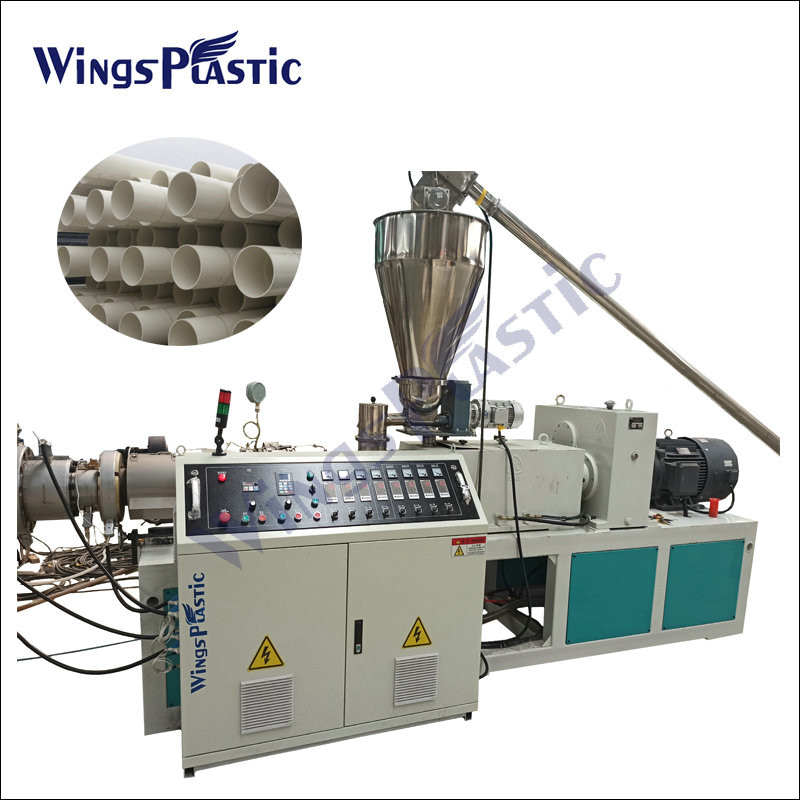

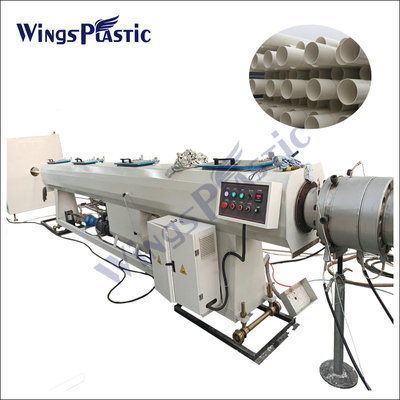

Double - PVC Conduit Pipe Manufacturing Machine / Extrusion Line Pictures:
*Q: What’s the price of this machine please?
*A: Dear customer, for each kind of our machines, we have lots of models.
Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.
*Q: What is your advantage in this line?
*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.
We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
