Product Details:
|
Product Other Name: | Plastic Corrugated Conduit Pipe Making Machine | Extrusion Speed: | 12-20m/min |
---|---|---|---|
Screw Type: | Single Screw Extruder | Origin: | Qingdao |
Technology: | Germany | Quality: | CE, ISO |
Pipe Name: | Expansion Corrugated Pipe | Machinery Color: | Blue |

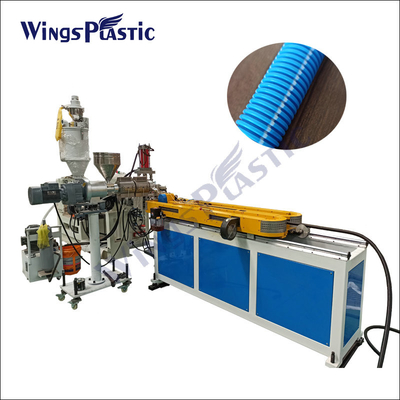

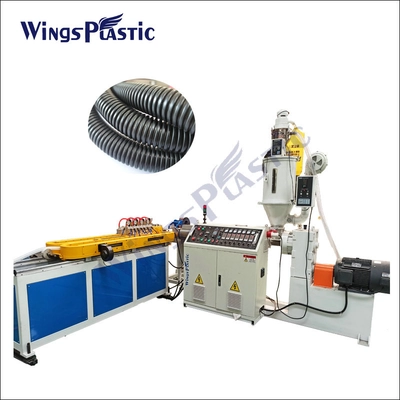

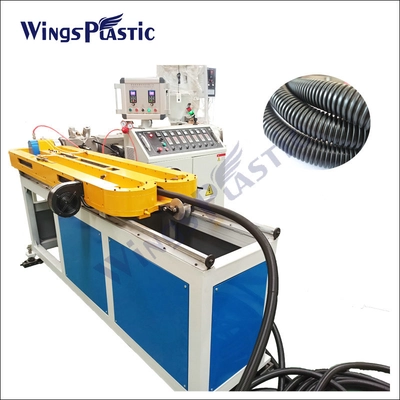

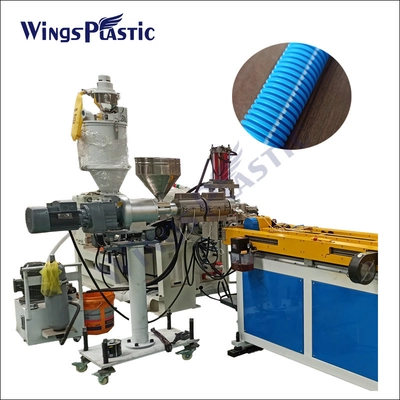

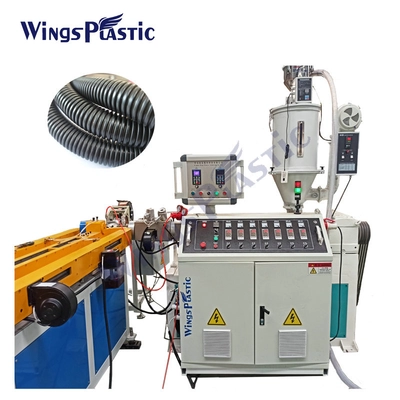

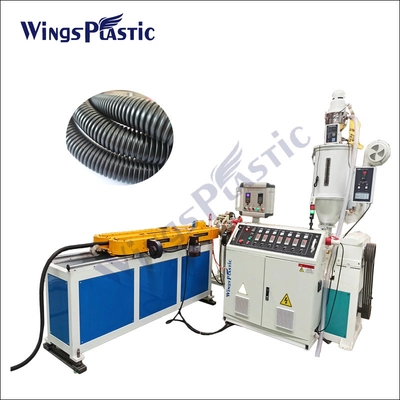

Corrugated Plastic Hose Production Line for Cableprotector
This line can continuously produce PE, PP, EVA, PVC, PA corrugated pipes, etc. Plastic single-wall corrugated pipe has such good characteristics :
corrugated tube production lines, production of corrugated pipe, small appliances, pipe used in underground sheath.
As high temperature resistance, corrosion resistance, wear resistance, high strength, good flexibility, etc. It is widely used in automotive wiring harness, electric threading machine lines, lines sheath tube lamps, air conditioning, plumbing for washing machine and other fields.It can produce two diameters or three diameters' single wall corrugated pipe in the same mould blocks, which reduce the cost of the moulds and reduce the time for changing the mould blocks, increase the efficiency.
Advantage of Our PVC / PP / PE / EVA single wall corrugated pipe hose production line
High speed corrugated pipe forming machine: forming blocks running without chain, blocks installed directly in the gear groove, rely on 9Mn2V material forming blocks with machining accuracy of 0.01 mm, realize high speed stable running.
Plastic Flexible Corrugated Hose Production Flow:
Automatic loader→Single screw extruder→Die→Forming moulds→Haul off and cutter (optional)→Double working-station winder.
Equipment list of the corrugated pipe making machine:
No. | Name | Quantity |
1 | Single screw extruder | 1 SET |
2 | Head die and mould | 1 SET |
3 | Mould block | 1 SET |
4 | Forming machine | 1 SET |
5 | Winder | 1 SET |
Q&A
*Q: What’s the price of this machine please?
*A: Dear customer, for each kind of our machines, we have lots of models.
Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.
*Q: What is your advantage in this line?
*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
Company Profile:
Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.
We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
