Product Details:
|
| Product Other Name: | HDPE Communication Pipe Production Line | Max Production Speed: | 6m/min |
|---|---|---|---|
| Plastic Materials: | PE Materials | Pipe Name: | HDPE Communication Pipe |
| Extruder Type: | 65/33 Single Screw Extruder | Level: | Qingdao,China |
| Qulity: | CE, ISO | Condition: | New |
| Inverter: | ABB |

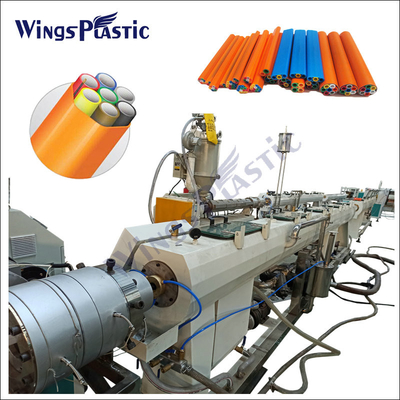

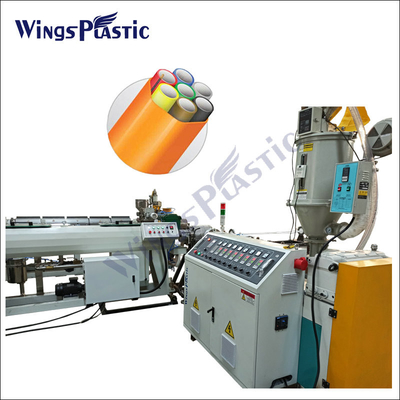

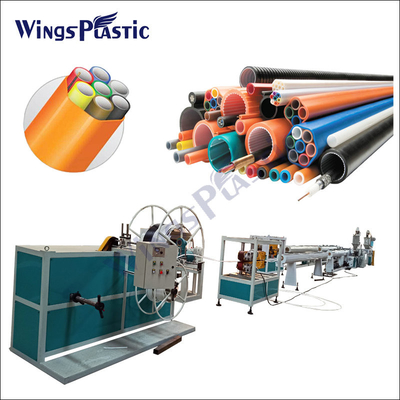

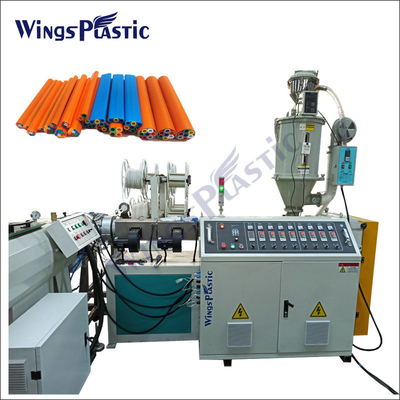

COD Pipe Making Machine / Plastic COD Pipe Extrusion Line / Plastic Pipe Extruder
COD cable Pipe production line makes the COD tube other name multichannel corrugated pipe, the ripple fiber optics tube protector, it is a whole which constitutes by the internal many cable ducts and the outer tube, managed COD along bright COD and traditional general PVC the inner tube which already made (3 to 5) to assemble through the reproduction process in outer tube's method founded this domain new times. The inner tube and the outer tube are (high density polyethylene) make with HDPE, have the high elasticity, although in the outer tube is equipped with the most inner tubes, still could the very good winding in entangle on the tube frame.
COD Pipe Production Flow chart

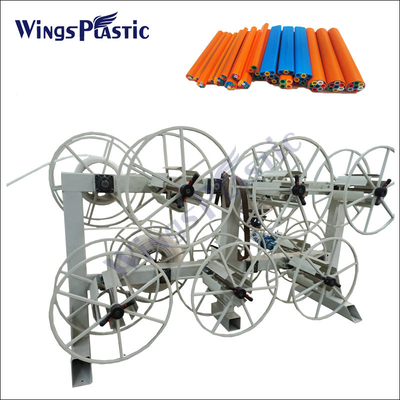

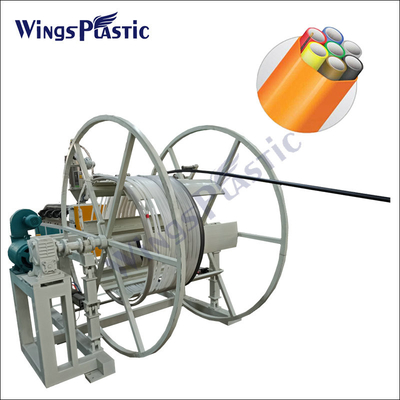

Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→hual off→winder→finished product inspecting &packing
The Main Parameters of the COD pipe machine (outlayer pipe):
| Model | SJ-70(PE) |
| L/D | 30:1 |
| Pipe Diameter(mm) | 50-200 |
| Output(kg/h) | 150 |
| Production speed (m/min) | 1.5 |
| Power (kw) | 22 |
The Main Parameters of the COD pipe machine (inner core pipe):
| Model | SJ-65/33(PE) | SJ-90/30(PE) |
| L/D | 33:1 | 30/1 |
| Pipe Diameter(mm) | 16-32 | 32-63 |
| Output(kg/h) | 150 | 200 |
| Production speed (m/min) | 12-15 | 8-15 |
| Power (kw) | 37 | 50 |
The machinery electric parts details
| ITEM | BRAND | |
| 1 | Motors | Famous brand in China |
| 2 | PLC (customeried) | SIMENS 200 series |
| 3 | Interface module(customeried) | SIMENS |
| 4 | Touch screen(customeried) | SIMENS (10 inch) |
| 5 | Low voltage electrical equipments | SIMENS&SCHNEIDE |
| 6 | Inverter | ABB |
| 7 | Temperature control system | OMRON |
Q&A
*Q: What’s the price of this machine please?
*A: Dear customer, for each kind of our machines, we have lots of models.
Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.
*Q: What is your advantage in this line?
*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
