Round HDPE carbon corrugated pipe extrusion line

Round HDPE carbon corrugated pipe extrusion line

    • Round HDPE carbon corrugated pipe extrusion line
    • Round HDPE carbon corrugated pipe extrusion line
    • Round HDPE carbon corrugated pipe extrusion line
    • Round HDPE carbon corrugated pipe extrusion line
    • Round HDPE carbon corrugated pipe extrusion line
    • Round HDPE carbon corrugated pipe extrusion line
  • Round HDPE carbon corrugated pipe extrusion line

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Plastic Processed: PE Application: Pipe
    Screw Design: Single-screw Product Other Name: PE Carbon Corrugated Pipe
    Max Production Speed: 6m/min Plastic Materials: PE + Carbon Granules
    Pipe Name: PE Carbon Spiral Corrugated Pipe Extruder Type: Single Screw Extruder
    Level: Qingdao,China Qulity: CE, ISO

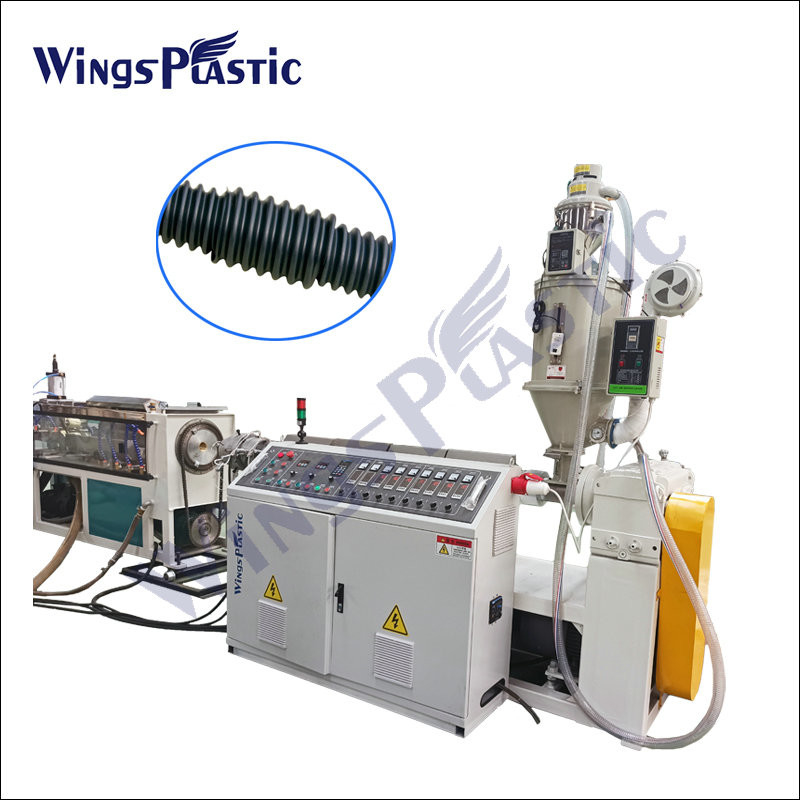

    Round HDPE carbon corrugated pipe extrusion line

    1.Single screw extruder especially used for polyolefine material possess effective plasticizing effect and high extrusion speed.

    2.The special detached type compounding screw an die head with spiral structure&reasonable channel are applicable to produce pipes with smooth inside and outside face.

    3.Unique calibration and cooling mode is capable of producing pipe with diameter from Φ50 to Φ200mm,production speed is up to 0.4~1.5m/min.

    4.All kind of polyolefine material,multi-layers spiral strengthening pipe can be co-extruded,recycled materials can be used in production;

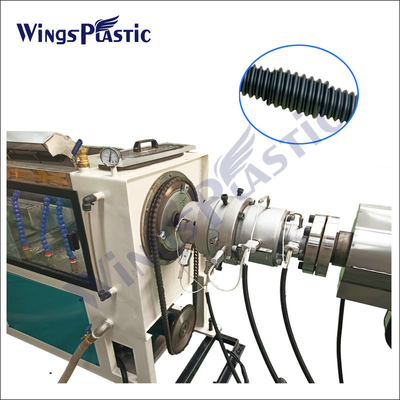

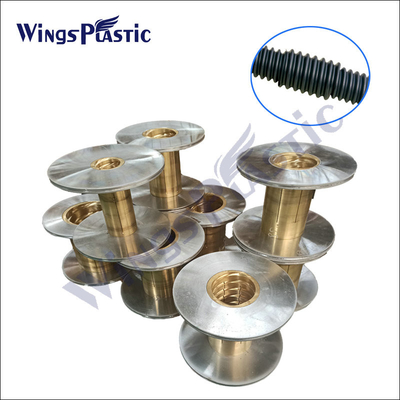

    5.Optimum spiral copper sizing sleeve,its entrance carrying pre-cooling and powerful vacuum device to suit for high speed extruding pipe.

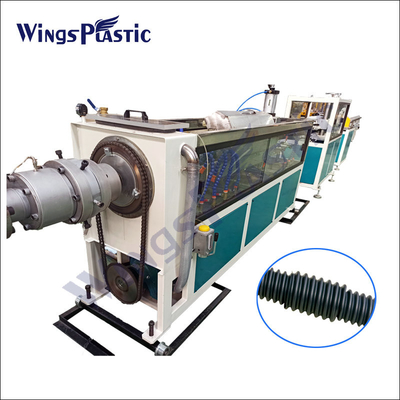

    6.Stainless steel cooling water trough is three-dimensional regulation,longitudinal moved by motor.

    7.High efficient cooling comes from peculiar spraying nozzle and high efficiency water pump.

    The Main Parameters of the machine:

    Model

    SJ-65B

    SJ-90B

    L/D

    30:1

    30:1

    Pipe Diameter(mm)

    50-100

    50-200

    Output(kg/h)

    20-60

    50-100

    Production speed (m/min)

    0.8-1.5

    0.8-1.5

    Power (kw)

    32.7

    50.2


    Round HDPE carbon corrugated pipe extrusion lineRound HDPE carbon corrugated pipe extrusion lineRound HDPE carbon corrugated pipe extrusion line



    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
