PE Carbon Spiral Pipe Production Line / Manufacturing Machine

PE Carbon Spiral Pipe Production Line / Manufacturing Machine

    • PE Carbon Spiral Pipe Production Line / Manufacturing Machine
    • PE Carbon Spiral Pipe Production Line / Manufacturing Machine
    • PE Carbon Spiral Pipe Production Line / Manufacturing Machine
    • PE Carbon Spiral Pipe Production Line / Manufacturing Machine
    • PE Carbon Spiral Pipe Production Line / Manufacturing Machine
    • PE Carbon Spiral Pipe Production Line / Manufacturing Machine
  • PE Carbon Spiral Pipe Production Line / Manufacturing Machine

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: SJ65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Product Other Name: PE Carbon Spirial Corrugated Pipe Max Production Speed: 6m/min
    Plastic Materials: PE + Carbon Materials Pipe Name: PE + Carbon Corrugated Pipe Duct
    Extruder Type: Single Screw Extruder Level: Qingdao,China
    Qulity: CE, ISO

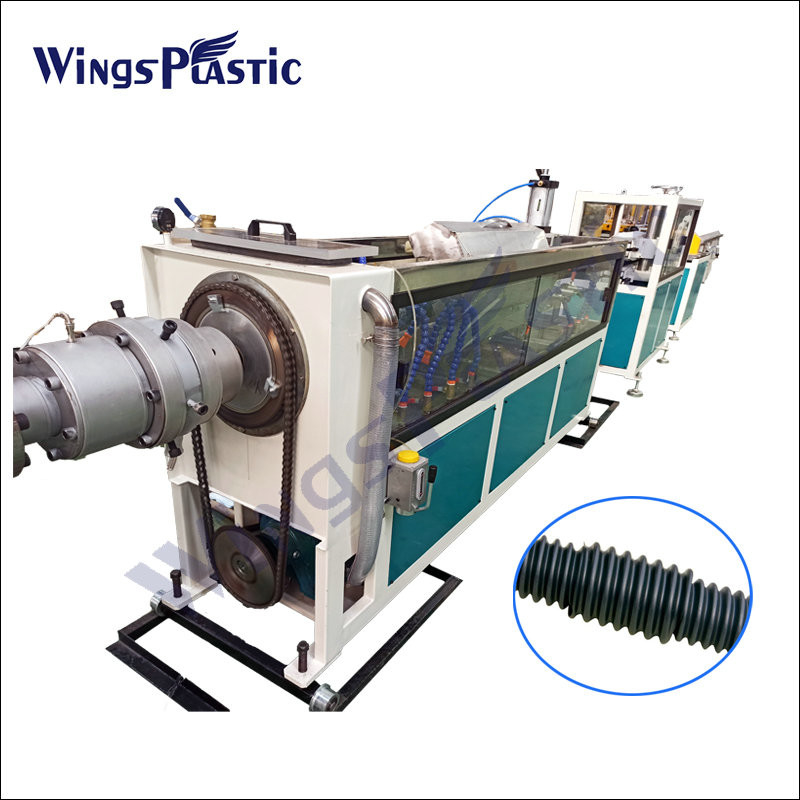

    PE Carbon Spiral Pipe Production Line / Manufacturing Machine

    PE Carbon Spiral Pipe Production Line / Manufacturing Machine is composed by:

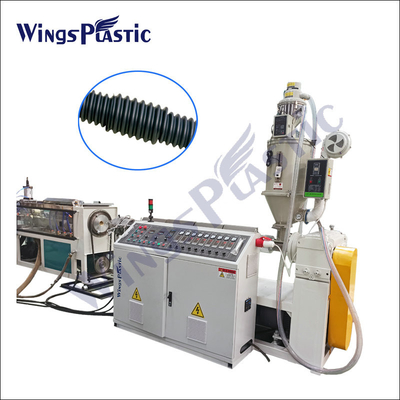

    1. Extruder with feeding machine

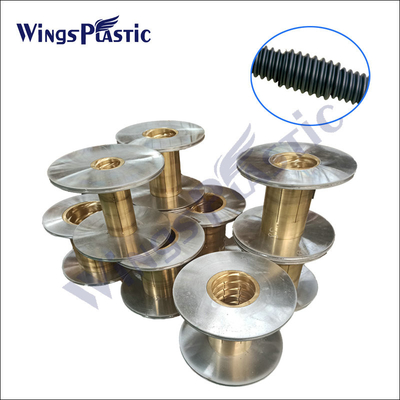

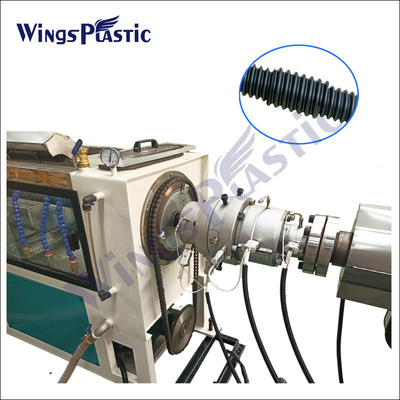

    2. Die head & mould

    3. Vacuum calibration & water spray cooling trough

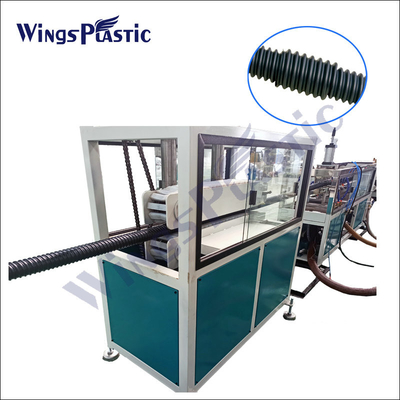

    4. Haul off machine

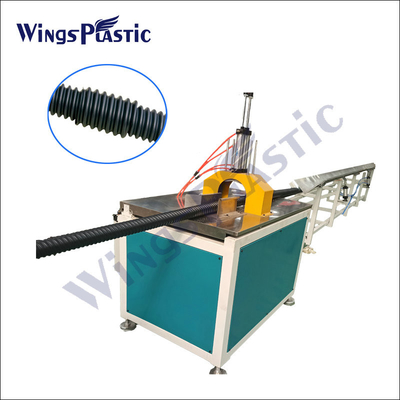

    5. Winder for small diameter pipe, or cutter for big diameter pipe & unloading stacker



    The PE Spiral Pipe Production Line has characteristics of compact conformation, good appearance and high efficiency. By adopting high performance extruder and automation system, it runs stably and produces high quality pipes.



    The PE Spiral Pipe Extrusion Line is mainly used for producing PE spiral pipe. This kind of pipe has characteristics of high strength, high toughness, anti-corrosion, light weight, long service life and anti-deformation; it is widely used in cable protection and vented exhaust. It is an ideal alternative of cast iron pipe, rubber pipe and PVC pipe.



    PE HDPE carbon spiral pipe production line Application:

    This PE HDPE carbon spiral pipe production line is mainly used to produce PE carbon spiral pipe which are used as protecting sleeves of optic or electric cable, and more and more be used in the fields f electricity, telecom and post, construction of high way and port etc.

    These PE carbon spiral pipes which are produced by PE carbon spiral pipe production line are characterized by high intensity and tenancy, erosion resistance, constant shape and easy transportation and execution.They can be processed and bent into long pipes with various radians. Owing.To these advantages, PE carbon spiral pipes which are produced by PE carbon spiral pipe production line are very popular with clients engaged in many fields.

    The Main Parameters of the machine:

    Model

    SJ-65B

    SJ-90B

    L/D

    30:1

    30:1

    Pipe Diameter(mm)

    50-100

    50-200

    Output(kg/h)

    20-60

    50-100

    Production speed (m/min)

    0.8-1.5

    0.8-1.5

    Power (kw)

    32.7

    50.2




    PE Carbon Spiral Pipe Production Line / Manufacturing MachinePE Carbon Spiral Pipe Production Line / Manufacturing MachinePE Carbon Spiral Pipe Production Line / Manufacturing Machine

    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
