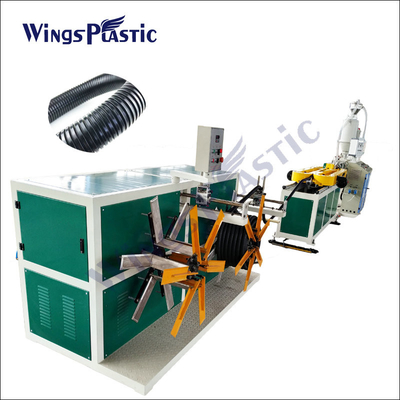

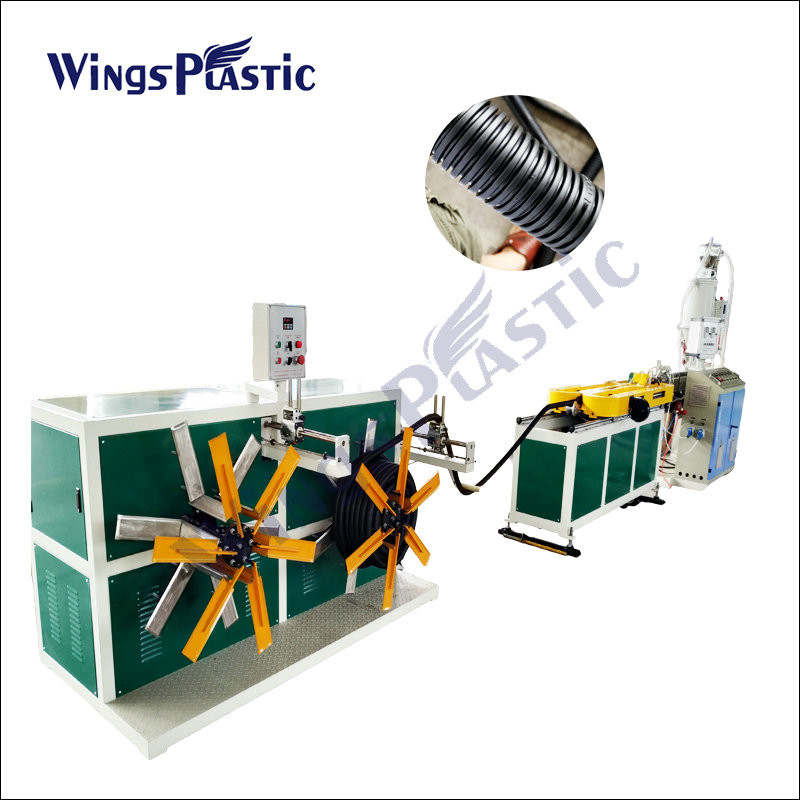

Plastic single wall corrugated pipe line plastic machine

Plastic single wall corrugated pipe line plastic machine

    • Plastic single wall corrugated pipe line plastic machine
    • Plastic single wall corrugated pipe line plastic machine
    • Plastic single wall corrugated pipe line plastic machine
    • Plastic single wall corrugated pipe line plastic machine
    • Plastic single wall corrugated pipe line plastic machine
    • Plastic single wall corrugated pipe line plastic machine
  • Plastic single wall corrugated pipe line plastic machine

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: 16mm-50mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Plastic Processed: PE Application: Pipe
    Screw Design: Single-screw Product Other Name: Corrugated Expansion Pipe Making Machine
    Extrusion Speed: 6-10m/min Screw Type: Single Screw Extruder
    Origin: Qingdao Technology: Germany
    Quality: CE, ISO Pipe Name: Expansion Corrugated Pipe
    Machinery Color: Blue

       Plastic single wall corrugated pipe line plastic machine

       PE / PA / EVA / PP pipe machine is equipped with single screw extruder;

       PVC pipe machine adopts double conic screw extruder .



       The unit type and SJ65 or SJ45 single-screw extruder, corrugated pipe forming machine, tube tire mold, air cooling device, counter, reel, can continuous extrusion molding various specifications of PVC, LDPE, HDPE, PP, PA corrugated pipe, etc.
        PP/PE/PVC single wall corrugated pipe production line can be continuous production such as PE, PP, EVA, PVC corrugated pipe, also can produce PA bellows.Plastic single-wall corrugated pipe with high temperature resistance, corrosion resistance, wear resistance, high strength, good flexibility, etc.Widely used in automotive wiring harness, electrical threading protect casing, machine lines, lines of lamps and lanterns, air-conditioner, washing machine hose, etc.

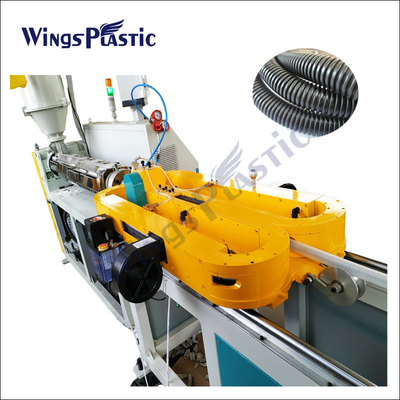

       1.Adopts High speed Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.

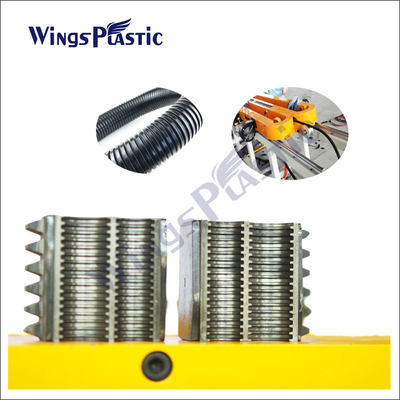

       2. Forming modules: it is made of hard steel, with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change

       3. Coiler :Single position or double position with torque motor.

       4.  Electrical parts: ABB inverter, Schneider contactor, RKC temperature controllers etc.

       Process Flow:

    Raw material(PP/PE granule)→plastic extruder→die→forming machine→winder→Finished Product

    Line Model

    Extruder model

    Production scope

    Output

    Total Power

    Production speed

    PE-40

    SJ-45/30

    Φ6-40mm

    60kg/h

    25KW

    6-10m/min

    PE-63

    SJ-65/30

    Φ12-63mm

    80kg/h

    30KW

    6-10m/min

    PA-40

    SJ-45/28

    Φ6-40mm

    60kg/h

    25KW

    6-10m/min

    PVC-50

    SJ51/105

    Φ16-50mm

    100kg/h

    27KW

    6-10m/min

    Plastic single wall corrugated pipe line plastic machinePlastic single wall corrugated pipe line plastic machinePlastic single wall corrugated pipe line plastic machine



    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
