EVA Vacuum Cleaner Hose Making Machine / EVA Flexible Cleaner Pipe Machine

EVA Vacuum Cleaner Hose Making Machine / EVA Flexible Cleaner Pipe Machine

    • EVA Vacuum Cleaner Hose Making Machine / EVA Flexible Cleaner Pipe Machine
    • EVA Vacuum Cleaner Hose Making Machine / EVA Flexible Cleaner Pipe Machine
    • EVA Vacuum Cleaner Hose Making Machine / EVA Flexible Cleaner Pipe Machine
    • EVA Vacuum Cleaner Hose Making Machine / EVA Flexible Cleaner Pipe Machine
    • EVA Vacuum Cleaner Hose Making Machine / EVA Flexible Cleaner Pipe Machine
    • EVA Vacuum Cleaner Hose Making Machine / EVA Flexible Cleaner Pipe Machine
  • EVA Vacuum Cleaner Hose Making Machine / EVA Flexible Cleaner Pipe Machine

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: 27mm-70mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Product Other Name: EVA Cleaner Hose Tubing Machine Extrusion Speed: 4m/min
    Machinery Level: Germany Extruder Type: Single Screw Extruder
    Cotrolling: PLC Control System Capicity: 100kg/h
    Hose Materials: EVA+LLDPE Extruder: 65/30
    Pipe Color: Double Color Or Single Color


    EVA Vacuum Cleaner Hose Making Machine / EVA Flexible Cleaner Pipe Machine

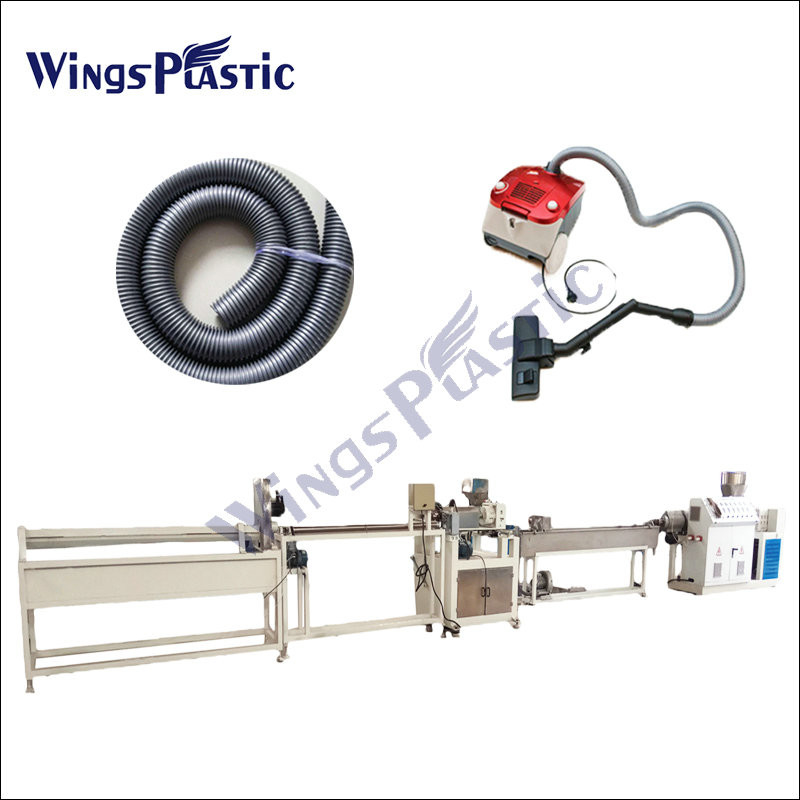

    EVA vacuum cleaner hose introduction:

    This hose is lightly , high flexible . some small vacuum cleaner adopt this hose.
    Machine is easy to operate , material cost is low.
    corrugator is very smoothly , tightly covering wire , it has a perfect spring force ,can extend to any angle without twist the hose.
    We also has big diameter hose machine, which use for toilet or kitchen and insdustry air exhaust.

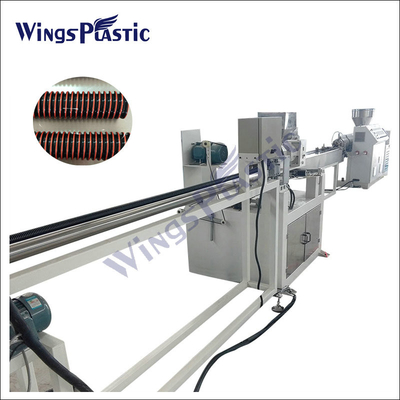

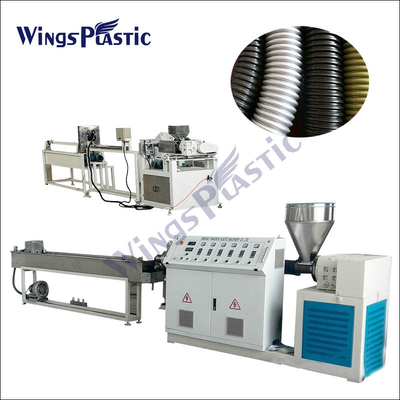

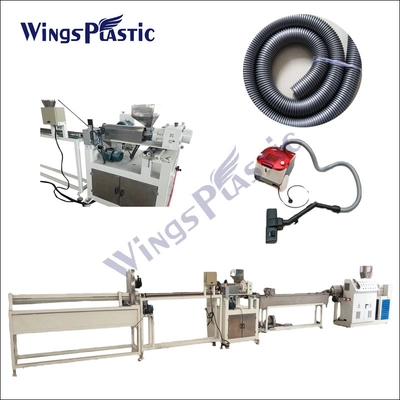

    EVA cleaner pipe production line introduction:

    This machine we adopt PLC control, full automatic working . compare with normal electric cabinet hand button control machine, our machine can easy to achieve all the action by touch screen, feeding , extruding speed , especially the forming process, our machine can save all the program in the memories card , when change the spiral shape, when change the winding speed, when change the diameter of the hose , etc, all can control by the touch screen, need not change the winding roller and wheel as the normal machine.

    Speed is high, can be 4 meters per minutes
    Easy start to working ,stable working , no bad quality hose, no waste material, machine working itself , need not worker after it start.
    Glue extruding also control by PLC. Special glue injecting nozzle, accurate glue position, keep the hose strong , never broken .
    Hose flexible, strong, can twist without flat .
    Perfect haul off and cutting design. Achieved all line working automatically .

    Flow chart: feeding-extruding ---water cooling-profile tension system-glue extruder-PLC control system-double wheel winding system ---haul off system-cutting and turn over system.

    The eva vacuum cleaner hose extrusion line equipment list:

    Automatic feeding system 1set
    Single screw extruder for hose 1set
    Single screw extruder for glue 1set
    Die head for eva profile 1set
    Eva hose forming system 1set
    Water cooling tank 1set
    Cutter machine 1set
    Stacker 1set
    Crusher 1set
    Materials mixer 1set
    Electric control system 1set
    EVA Vacuum Cleaner Hose Making Machine / EVA Flexible Cleaner Pipe MachineEVA Vacuum Cleaner Hose Making Machine / EVA Flexible Cleaner Pipe MachineEVA Vacuum Cleaner Hose Making Machine / EVA Flexible Cleaner Pipe Machine


    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
