Plastic PVC Fiber Hose Machine, PVC Reinforced Hose Making Machinery

Plastic PVC Fiber Hose Machine, PVC Reinforced Hose Making Machinery

    • Plastic PVC Fiber Hose Machine, PVC Reinforced Hose Making Machinery
    • Plastic PVC Fiber Hose Machine, PVC Reinforced Hose Making Machinery
    • Plastic PVC Fiber Hose Machine, PVC Reinforced Hose Making Machinery
    • Plastic PVC Fiber Hose Machine, PVC Reinforced Hose Making Machinery
    • Plastic PVC Fiber Hose Machine, PVC Reinforced Hose Making Machinery
    • Plastic PVC Fiber Hose Machine, PVC Reinforced Hose Making Machinery
  • Plastic PVC Fiber Hose Machine, PVC Reinforced Hose Making Machinery

    Product Details:

    Place of Origin: Qingdao
    Brand Name: WINGS
    Certification: CE,ISO
    Model Number: 16mm-50mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Email negotiate
    Packaging Details: Wooden box and film
    Delivery Time: 30 workdays
    Payment Terms: T/T 30% for prepayment and 70% after machinery testing
    Supply Ability: 100 sets every year
    Contact Now
    Detailed Product Description
    Application: Pipe Screw Design: Single-screw
    Product Other Name: Plastic Flexible Hose Machine Max Production Speed: 12-20m/min
    Plastic Materials: PVC Granules + Fiber Pipe Name: PVC Fiber Reinforced Hose
    Extruder Type: Single Screw Extruder Measurement: 8000×1200×2000mm(length, Width And High Of Line)

    Plastic PVC Fiber Hose Machine, PVC Reinforced Hose Making Machinery
    This production line is used to produce pvc fiber reinforced braiding hose, pvc garden hose, pvc water hose.

    The pvc hose introduction:
    1.The PVC reinforced hose, also called pvc fiber hose, pvc garden hose, pvc braiding hose,it is widely used to convey the middle pressure or corrosive gas and liquid.
    2.Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications(solar water heater or gas-canisters).
    3.At the present time, it is widely used to the irrigation pipe to the garden and lawn.

    The production process of the pvc fiber hose:
    materials feeding→single screw extruder→extruding mould→cooling water tank→belt hauloff→fiber winder→oven→single screw extruder→mould→ cooling water tank→belt haul-off →meter measure→winder→finished product inspecting&packing


    Plastic PVC Fiber Hose Machine, PVC Reinforced Hose Making Machinery Informations:

    Model/dato Diameter Extruder Speed Max capacity Installed power Dimension Weight
    WSJ20 10-20mm SJ45/28 1-10m/min 40kg/h 30kw 20*3.5*2.5m 8.5t
    WSJ40 16-40mm SJ65/28 1-8m/min 80kg/h 60kw 25*3.5*2.5m 10t
    WSJ50 20-50mm SJ75/28 1-5m/min 100kg/h 75kw 28*3.5*2.5m 13t

    Plastic PVC Fiber Hose Machine, PVC Reinforced Hose Making MachineryPlastic PVC Fiber Hose Machine, PVC Reinforced Hose Making MachineryPlastic PVC Fiber Hose Machine, PVC Reinforced Hose Making Machinery

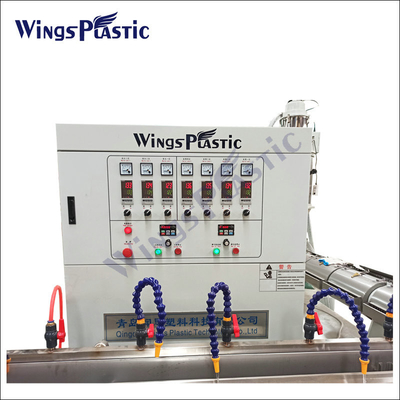

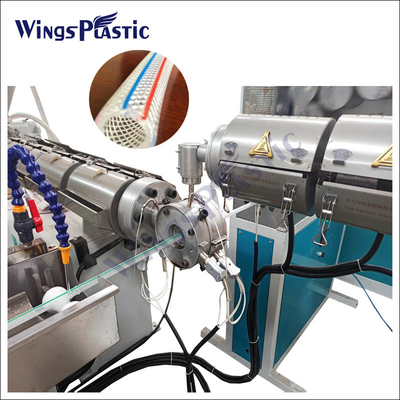

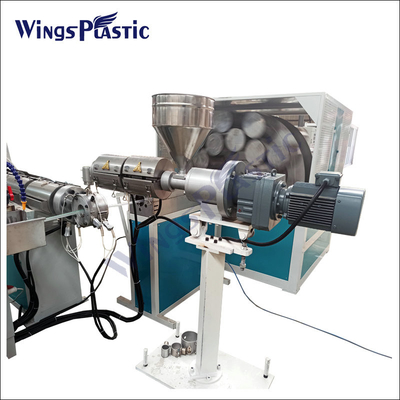

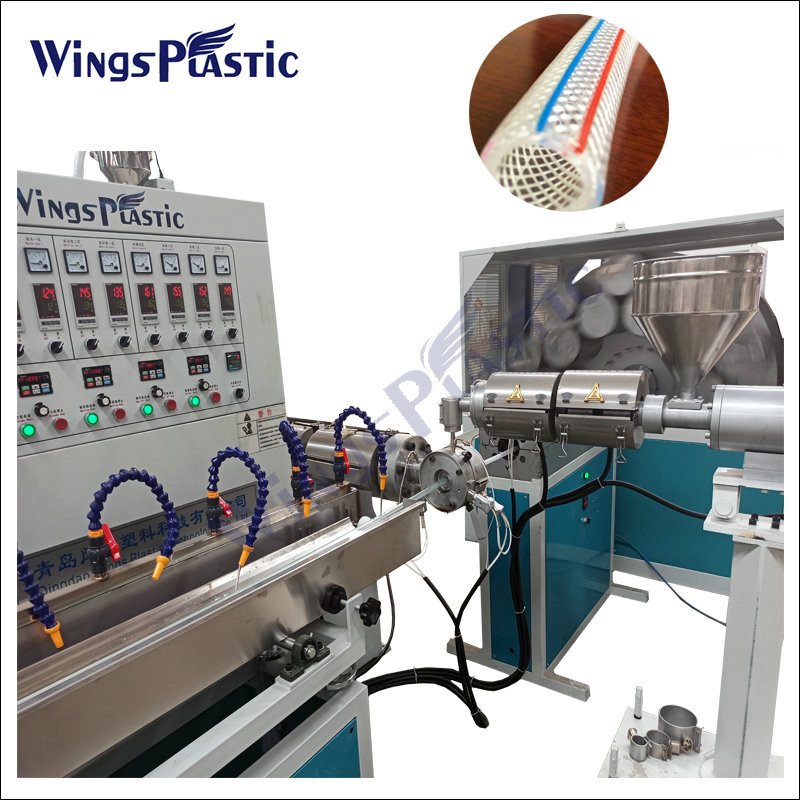

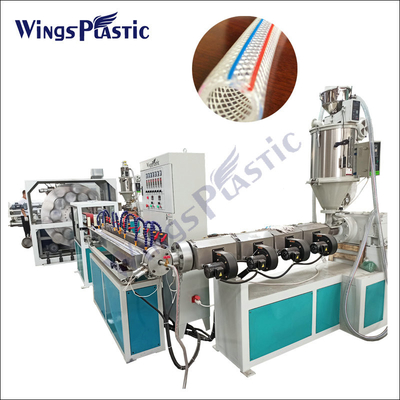

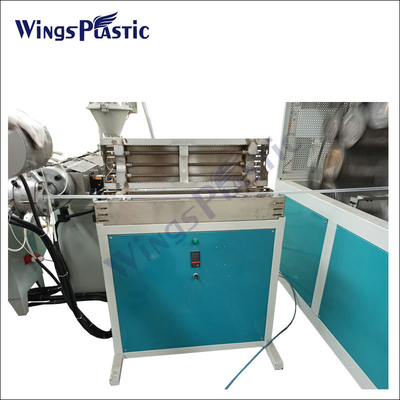

    PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line Machinery Pictures:





    Q&A

    *Q: What’s the price of this machine please?

    *A: Dear customer, for each kind of our machines, we have lots of models.

    Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.

    *Q: What is your advantage in this line?

    *A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.

    Company Profile:

    Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

    We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
