|Screw Design:||Single Screw||Product Other Name:||PE Pipe Machine , PP Pipe Extruder|
|Max Production Speed:||3-4m/min||Plastic Materials:||PE PP Granules|
|Pipe Name:||PE PP Hose Protector||Extruder Type:||Single Screw Extruder|
|Machinery Color:||Blue, Yellow ,White|

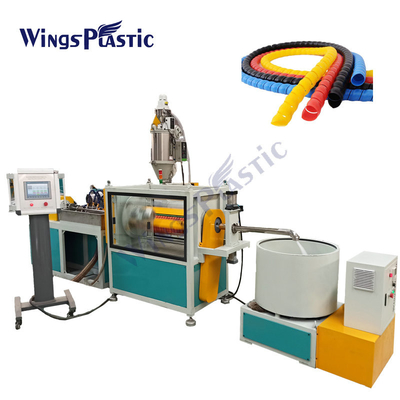

PE PP Spiral Protector Making Machine / Spiral Hose Guard Production Line

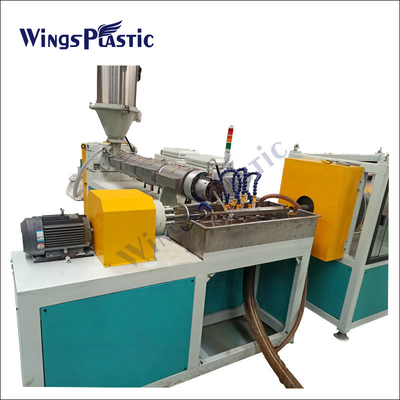

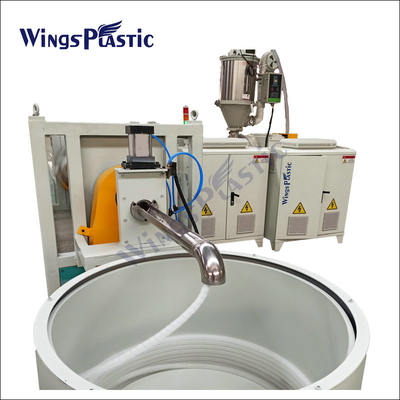

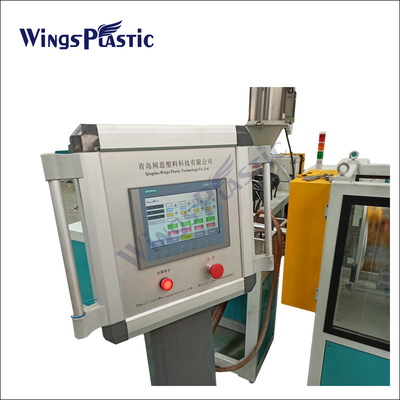

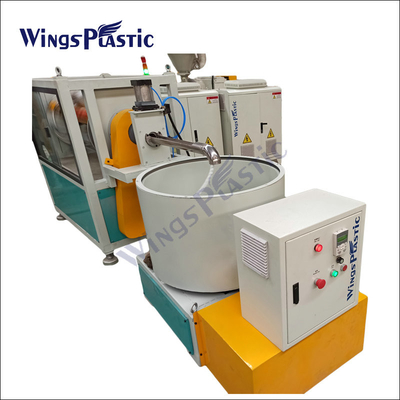

The machine line is consist of SJ-45/28 single screw extruder and die head, rotating forming machine,haulling off machine, circulating-water cooling tank, meter counter and winder. The units is compact structure and superior performance. the screw and barrel through optimization design, adopt 38CrMoAiA professional proccessing that can make the whole units has advantages of uniform plasticizing, capacity stability, high output, long service life,etc. The screw adopt cast-aluminium heating, fan cooling type and Precision electronic instrument temperature controller.
The reducer adopt hard teech surface geer box, can trouble-free working long time uninteruppted. The whole units has the feature of integrated design, high performance, high stability, etc.
|Product Name||Best sales PP/PE plastic spiral wrapping band extrusion line|
|Color||the products colors can as customer's request, yellow,red, black, white,blue|
|extruder||sj-45/28 single screw extruder|
|the products size||as customer's request, 184.108.40.206.40.50.63mm|
|the line speed||1-5m/min|
|mould||rotating forming mould|
*Q: What’s the price of this machine please?
*A: Dear customer, for each kind of our machines, we have lots of models.
Generally speaking, we design the production lines according to different requirements of different machines from different customers. Therefore, the prices are different. So please kindly inform us your requirements. For example, the raw material, the output product size, capacity and etc. The more detailed, the better. Our Engineers will design a suitable production line for you.
*Q: What is your advantage in this line?
*A: Dear customer, we only focus on plastic pipe extrusion machinery manufacturing and development. That is much different with others, we live on pipe extrusion line, and pipe machinery customer is all for us.
Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.
We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
